Sony DSX-A50BT Service Manual

31
DSX-A50BT
SECTION 6
EXPLODED VIEWS
1 X-2583-287-1 PANEL ASSY, SUB
2 3-243-844-01 CUSHION (SUB PANEL)
3 3-042-244-11 SCREW (T)
4 X-2547-583-3 LOCK ASSY (T)
5 4-410-504-01 SCREW (+PTT 2.6X6), GROUND POINT
6 A-1850-324-A MAIN BOARD, COMPLETE (Including BT board)
(E, IND)
6 A-1850-326-A MAIN BOARD, COMPLETE (Including BT board)
(AEP, UK)
7 2-898-980-01 HOLDER (MIC SLOT)
8 A-1847-636-A ANTENNA BOARD, COMPLETE
9 4-290-177-01 SCREW (+B P-TITE M2)
10 X-2580-124-1 PLATE (MIC SLOT) (SV) ASSY
CP601 A-1847-637-A BT BOARD, COMPLETE (Included in MAIN board)
FU101 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10 A/32 V)
MIC601 1-542-919-11 MICROPHONE
PW1 1-839-372-11 CONNECTION CORD FOR AUTOMOBILE
(POWER) (E, IND)
PW1 1-839-387-11 CONNECTION CORD (ISO) (POWER) (AEP, UK)
TU251 A-1832-182-A TUX-DSP02 (Tuner unit)
WR1 1-839-913-11 LEAD WIRE WITH CONNECTOR
(Bluetooth antenna wire)
#1 7-685-793-09 SCREW +PTT 2.6X8 (S)
#2 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#3 7-685-794-09 SCREW +PTT 2.6X10 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “
* ” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
n n
Parts Color Cabinet’s Color

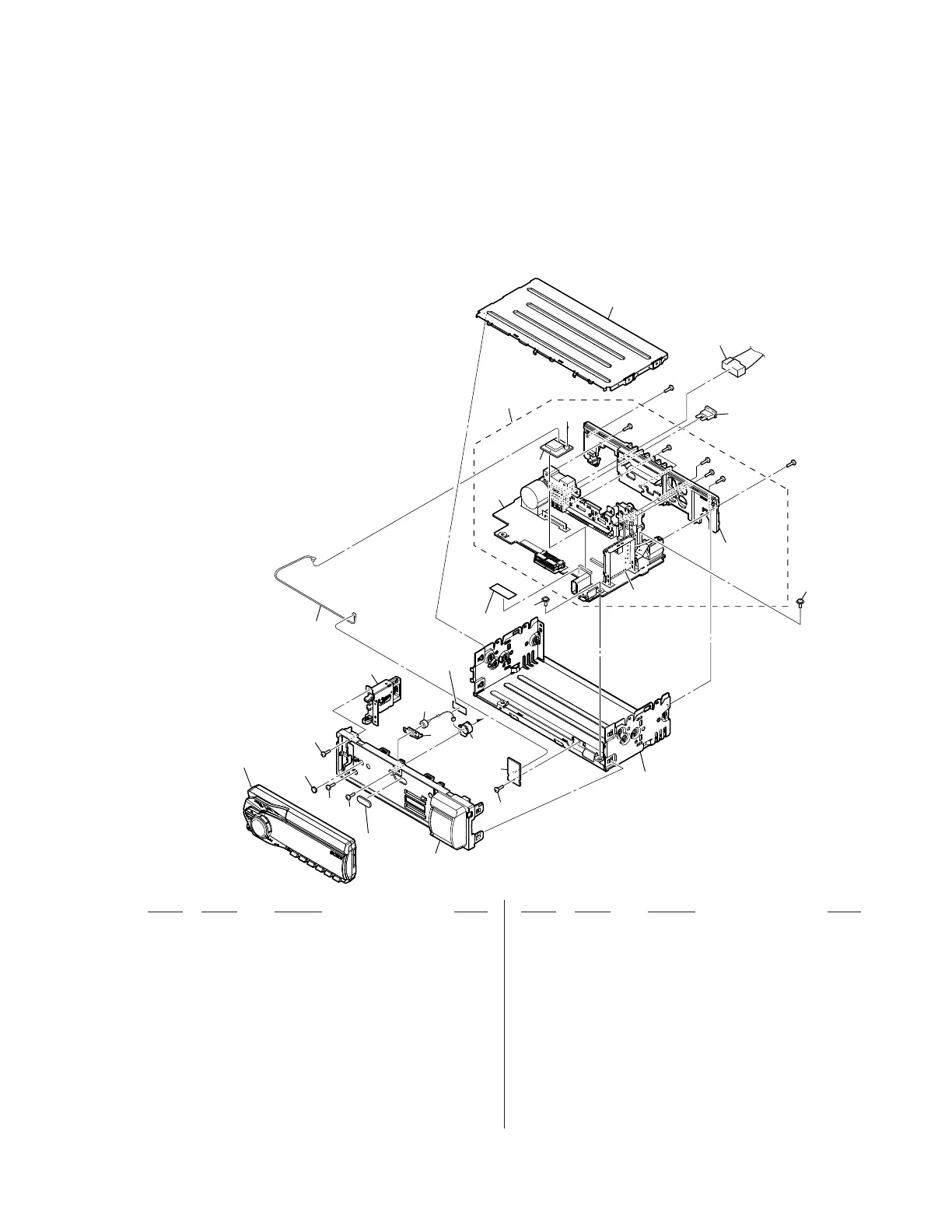

6-1. MAIN SECTION
• Abbreviation
IND : Indian model
not supplied
TU251
#2
#2
#3
#3
#3
1
2
3
4
6
5
3
9
not supplied
front panel section
#1
#1
FU101
PW1
5
MIC601
CP601
7
A
A
not supplied
not
supplied
not
supplied
10
8
3
not supplied
MAIN
board
WR1

Sony DSX-A50BT Specifications

General

MP3 playback	Yes
CD-R playback	No
FM band range	87.5 - 108 MHz
Product color	Black
Amplifier output power	50 W

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	178 x 120 x 50 mm
