Sony DSX-A50BT Service Manual

DSX-A50BT
4
NOTE THE MAIN BOARD OR SYSTEM CONTROLLER
(IC101) REPLACING
When the MAIN board or system controller (IC101) is replaced,
the destination setting is necessary.
1. Destination Setting
Set destination according to the procedure below.
1-1. Setting the Destination Code
1. In the state of source off (the clock is displayed), enter the
test mode by pressing the buttons on the remote commander in
order of the [4] t [5] t [6] (press only the [6] button for two
seconds).
2. In the state in which the system controller version is displayed
on the liquid crystal display, enter the destination setting
mode by pressing the buttons on the main unit in order of the
[SEEK+] t [SEEK–] t [PUSH ENTER/SELECT].
3. Input the alphanumeric character of 6 digits of “F XXXXXX”
displayed on the liquid crystal display, and execute the destina-
tion setting.
Note: Refer to following “1-3. Entering the Destination Code” for opera-
tion method.
4. The resetting operation is executed by pressing the [SOURCE/
OFF] button for 1 second after the setting ends, and the unit
returns to the normal condition.
1-2. Display in Destination Setting Mode
8 digits
OP0OP2 OP1OP3OP4OP5
XXXXXX
F

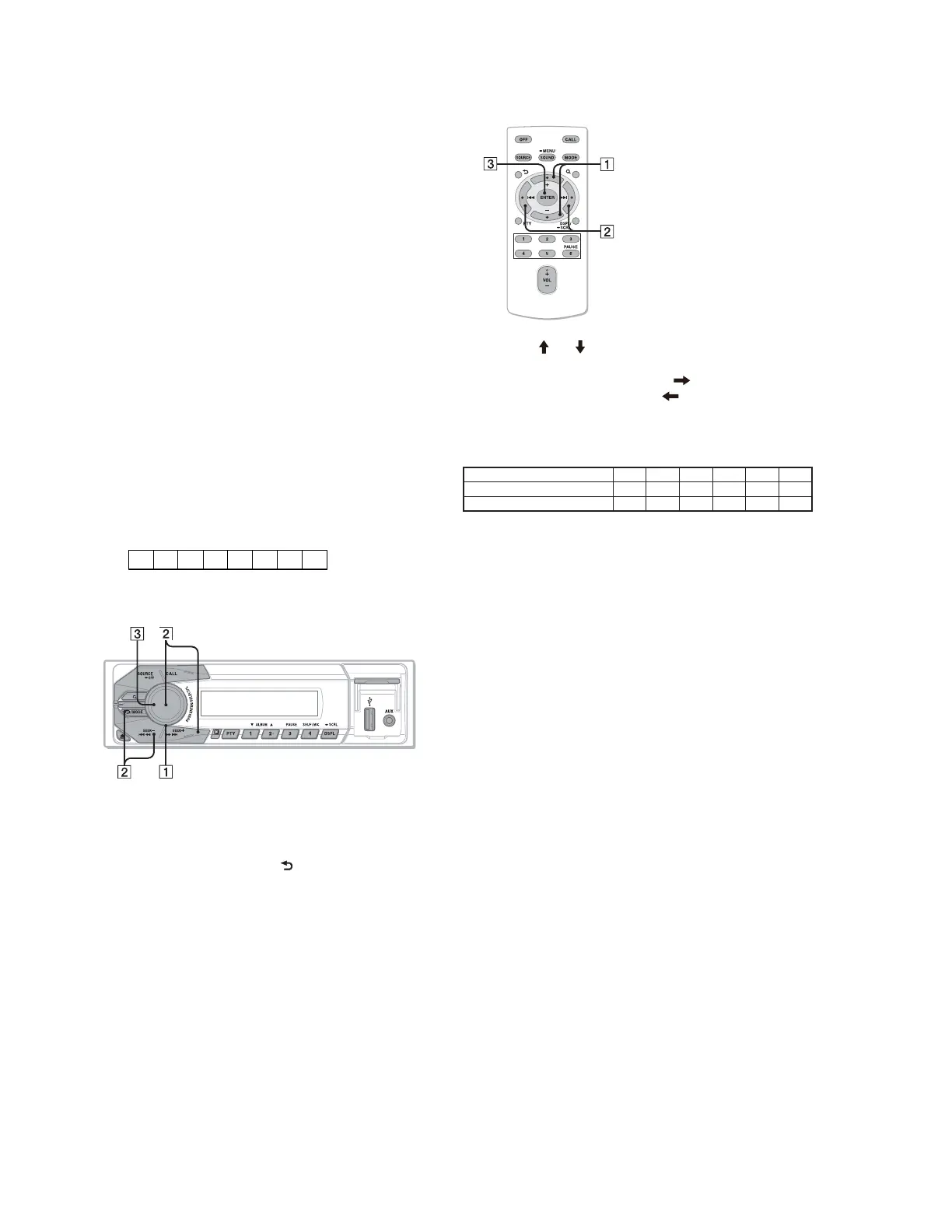

1-3. Entering the Destination Code
• Method of operation by main unit
1. Rotate the control dial, and select the alphanumeric character
of “0 to F”.
2. The digit advances by pressing the [PUSH ENTER/SELECT]
or [SEEK+] button.
The digit returns by pressing the [
/MODE] or [SEEK–] but-
ton.
3. The setting is completed by pressing the [PUSH ENTER/
SELECT] button, and the initialization operation is done.
• Method of operation by remote commander
1. Press the [ ] or [ ] button, and select the alphanumeric char-
acter of “0 to F”.
2. The digit advances by pressing the [
] button.
The digit returns by pressing the [
] button.
3. The setting is completed by pressing the [ENTER] button, and
the initialization operation is done.
1-4. Destination Code
Destination OP5 OP4 OP3 OP2 OP1 OP0
AEP, UK 0 0 4 2 0 1
E, Indian 0 0 4 A 0 0
2. Confi rmation After Destination Setting
Execute the following operation after completing the destination
setting, and confi rm a correct destination was set.
Destination setting checking method:
1. In the state of source off (the clock is displayed on the liquid
crystal display), enter the test mode by pressing the buttons on
the remote commander in order of the [4] t [5] t [6] (press
only the [6] button for two seconds).
2. In the state in which the system controller version is displayed
on the liquid crystal display, enter the destination setting value
display mode by pressing the [DSPL] button on the main unit.
3. Confi rm the alphanumeric character of 6 digits of “F
XXXXXX” displayed in liquid crystal display is an value cor-
rectly input.
4. The resetting operation is executed by pressing the [SOURCE/
OFF] button on the main unit for 1 second after the confi rming
ends, and the unit returns to the normal condition.

Sony DSX-A50BT Specifications

General

MP3 playback	Yes
CD-R playback	No
FM band range	87.5 - 108 MHz
Product color	Black
Amplifier output power	50 W

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	178 x 120 x 50 mm
