Sony DSX-B710D - Connection Details; Overall Connection Diagram; Ancillary Connections

11GB

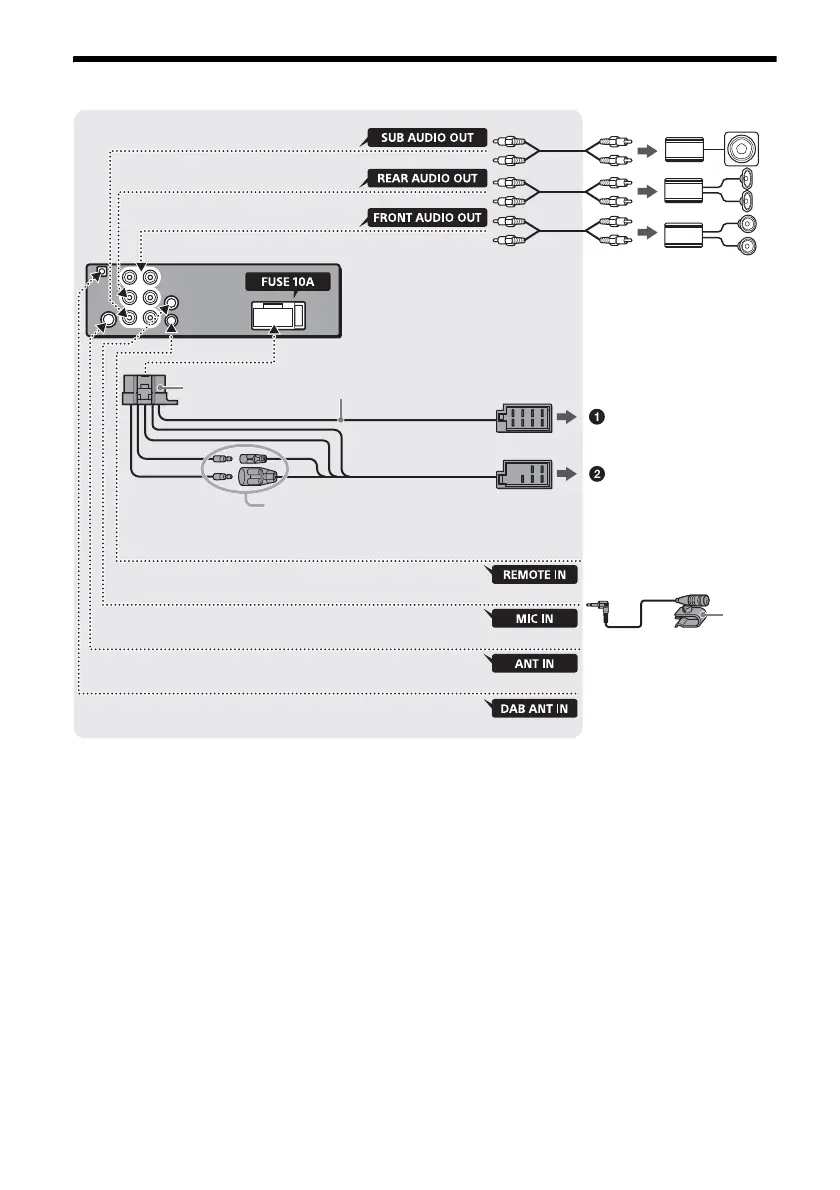

Connection
*1 Not supplied
*2 Speaker impedance: 4 Ω to 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied). For details on
using the wired remote control, see “Using the wired
remote control” (page 13).
*5 Whether in use or not, route the microphone input
cord such that it does not interfere with driving
operations. Secure the cord with a clamp, etc., if it is
installed around your feet.
For details on installing the microphone, see
“Installing the microphone” (page 13).
*6 Depending on the type of car, use an adaptor (not
supplied) if the antenna (aerial) connector does not
fit.
*7 Set [ANT-PWR] to [ON] (default) or [OFF] depending
on the type of DAB antenna (aerial).
Max. supply current 0.1 A

from a wired remote control
(not supplied)*
4
from a car antenna (aerial)*
6
*
3
*
3
Subwoofer*
1
For details, see “Making
connections” (page 12).
Power amplifier*
1
See “Power connection diagram” (page 12)
for details.
*
2
*
3
*
5
from DAB antenna (aerial)
(not supplied)*
7
