Sony DSX-M80 - 1 Servicing Notes

DSX-GS80/M80
4
Sony CONFIDENTIAL
For Authorized Servicer

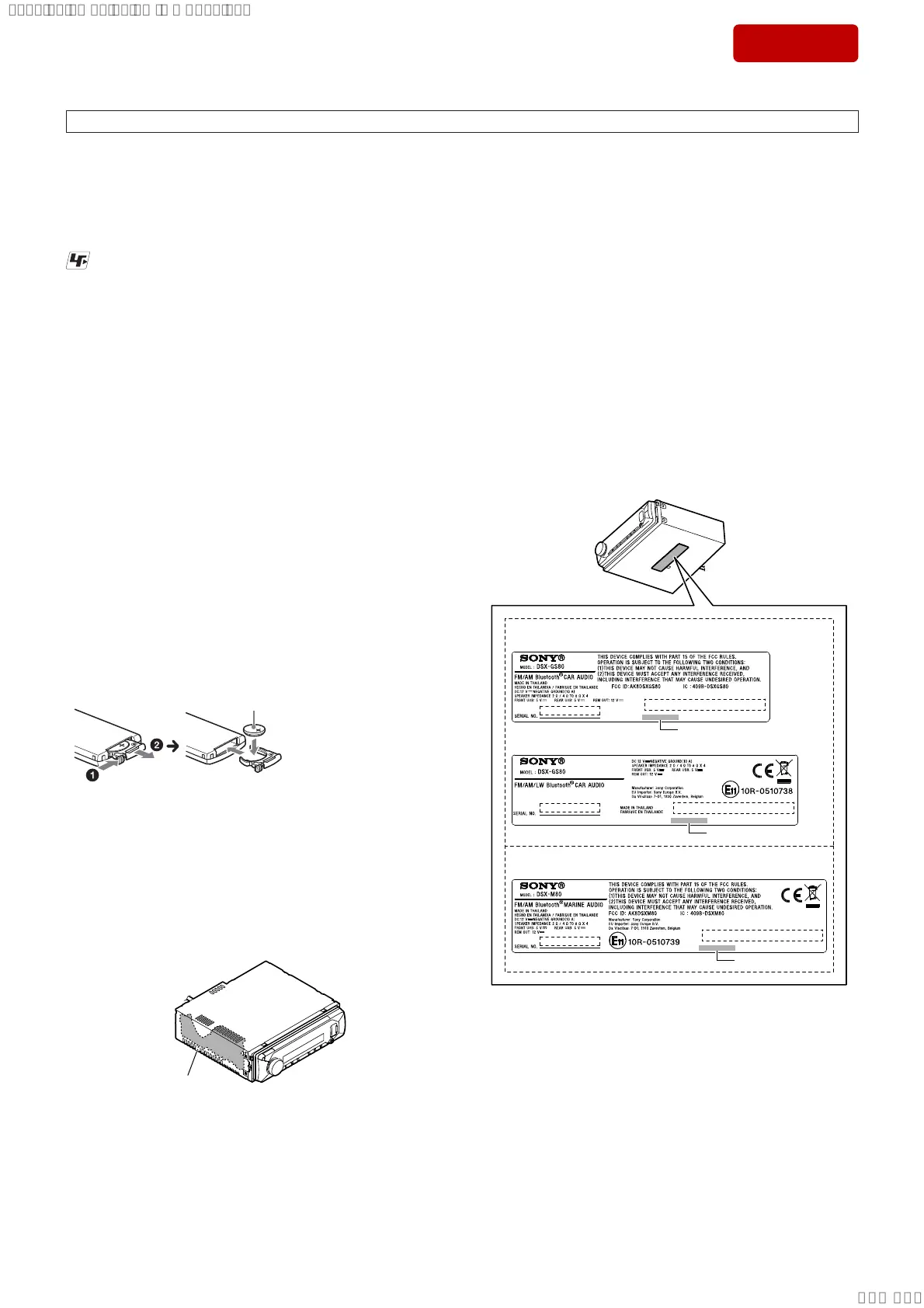

SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow) than
ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
REPLACING THE LITHIUM BATTERY (CR2025) OF THE
REMOTE COMMANDER (GS80: US, CND/M80 only)
When the battery becomes weak, the range
of the remote commander becomes shorter.
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
Note on the lithium battery
Keep the lithium battery out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.
+ side up
Lithium battery (CR2025)
NOTE FOR THE HEAT SINK
This unit is installed with a heat sink inside the chassis on the left
side.
If you touch this unit immediately after checking the operation of
this unit, be careful not to touch the heat sink on the left side.
heat sink
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
DSX-GS80
US, CND : US, Canadian and Latin American area (Puerto Rico)
models
AEP, UK : European area, East European area, CIS area (Moldo-
va) and Middle East area (Israel) models
DSX-M80
US, CND, AEP, UK, E:
US, Canadian, Latin American area (Puerto Rico), European area,
East European area, CIS area (Moldova) and African area (South
Africa) models
MODEL IDENTIFICATION
Check the model number label pasted on the bottom side of the main
unit.
Note: Print content on the model number label may be changed in the mid-
way of production.
– Bottom view –
DSX-GS80
5-007-456-01
US, CND
AEP, UK
DSX-M80
All destinations
5-007-457-01
5-007-459-01
