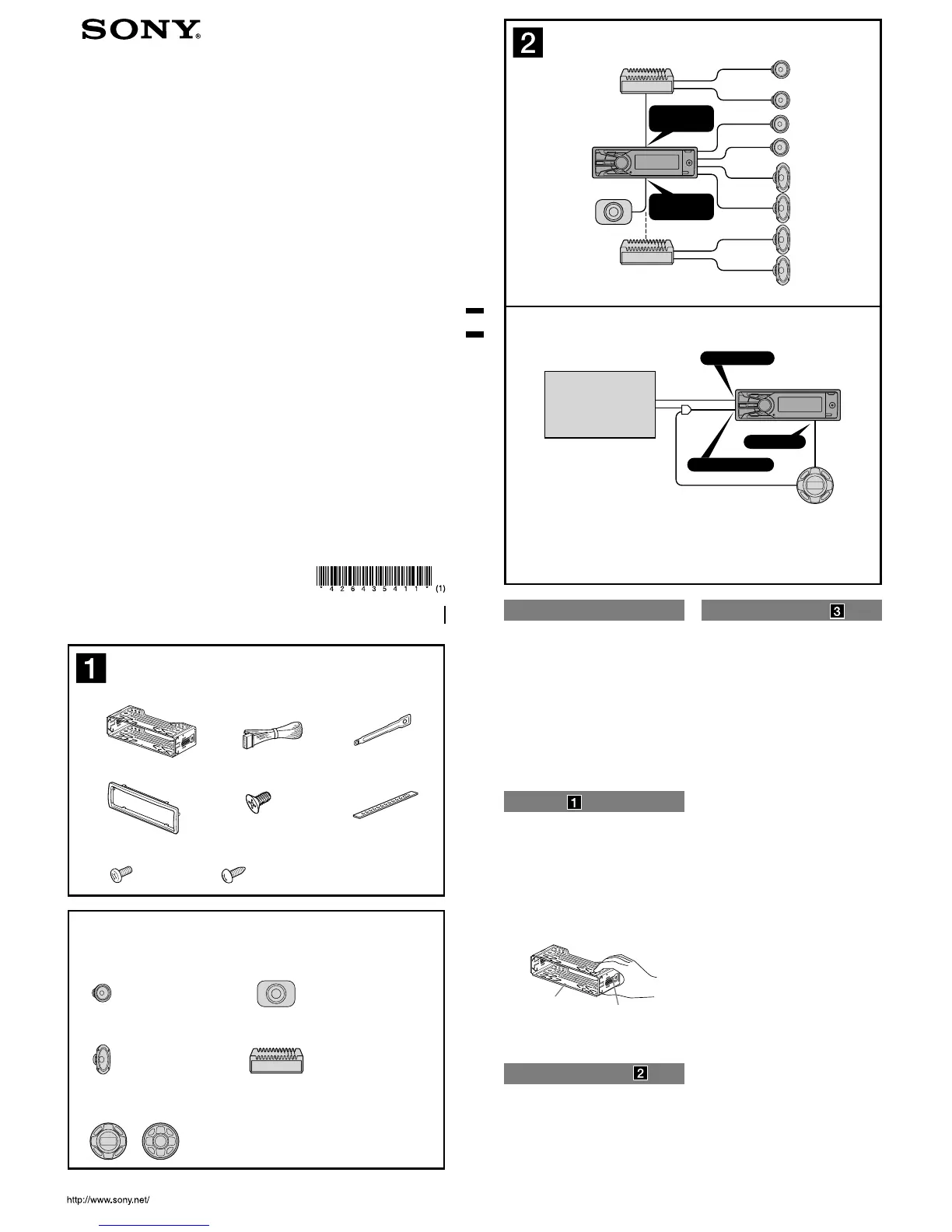

4-264-354-11(1)
FM/AM
Digital Media Player
Installation/Connections
Installation/Connexions
Instalación/Conexiones
DSX-MS60
× 2
Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
Equipo utilizado en las ilustraciones (no suministrado)
Rear speaker*
Haut-parleur arrière*
Altavoz posterior*
Power amplifier*
Amplificateur de puissance*
Amplificador de potencia*
Active subwoofer*
Caisson de graves actif*
Altavoz potenciador de
graves activo*
Front speaker*
Haut-parleur avant*
Altavoz frontal*
A
B
FRONT
AUDIO OUT
REAR
/
SUB
AUDIO OUT
Cautions
This unit is designed for negative ground (earth) 12 V
DC operation only.
Do not get the leads under a screw, or caught in moving
parts (e.g. seat railing).
Before making connections, turn the boat’s ignition off
to avoid short circuits.
Connect the yellow and red power supply leads only
after all other leads have been connected.
Run all ground (earth) leads to a common ground
(earth) point.
Be sure to insulate any loose unconnected leads with
electrical tape for safety.
Notes on the power supply lead (yellow)
When connecting this unit in combination with other
stereo components, the connected boat circuit’s rating
must be higher than the sum of each component’s fuse.
When no boat circuits are rated high enough, connect
the unit directly to the battery.
Parts Iist
The numbers in the list are keyed to those in the
instructions.
The bracket and the protection collar are
attached to the unit before shipping. Before mounting
the unit, use the release keys to remove the bracket
from the unit. For details, see “Removing the
protection collar and the bracket ()” on the reverse
side of the sheet.
Keep the release keys for future use as they are
also necessary if you remove the unit from your
boat.
Caution
Handle the bracket carefully to avoid injuring your
fingers.
Catch
Note
Before installing, make sure that the catches on both sides of the bracket
are bent inwards 2 mm (
3
/32 in). If the catches are straight or bent
outwards, the unit will not be installed securely and may spring out.
Connection example
Notes (-A)
Be sure to connect the ground (earth) lead before connecting the
amplifier.
The alarm will only sound if the built-in amplifier is used.
Notes on satellite radio tuner (-B)
This unit does not support the XM radio tuner
XMDSON100.
Connection diagram
To battery or distribution block ground
First connect the black ground (earth) lead, then connect the yellow
and red power supply leads.
To the power antenna (aerial) control lead or
power supply lead of antenna (aerial) booster
Notes
It is not necessary to connect this lead if there is no power
antenna (aerial) or antenna (aerial) booster, or with a manually-
operated telescopic antenna (aerial).
When your boat has a built-in FM/AM antenna (aerial) in the
rear/side glass, see “Notes on the control and power supply leads.”
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting any other system
may damage the unit.
To the interface cable of a telephone
To the illumination signal
Be sure to connect the black ground (earth) lead to the battery or
distribution block ground first.
To the +12 V power terminal which is energized
in the accessory position of the ignition switch
Notes
Be sure to connect the black ground (earth) lead to the battery or
distribution block ground first.
When your boat has a built-in FM/AM antenna (aerial) in the
rear/side glass, see “Notes on the control and power supply leads.”
To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground (earth) lead to the battery or
distribution block ground first.
Notes on the control and power supply leads
The power antenna (aerial) control lead (blue) supplies +12 V DC when
you turn on the tuner.
When your boat has built-in FM/AM antenna (aerial) in the rear/side
glass, connect the power antenna (aerial) control lead (blue) or the
accessory power supply lead (red) to the power terminal of the existing
antenna (aerial) booster. For details, consult your dealer.
A power antenna (aerial) without a relay box cannot be used with this
unit.
Memory hold connection
When the yellow power supply lead is connected, power will always be
supplied to the memory circuit even when the ignition switch is turned
off.
Notes on speaker connection
Before connecting the speakers, turn the unit off.
Use speakers with an impedance of 4 to 8 ohms, and with adequate
power handling capacities to avoid its damage.
Do not connect the speaker terminals to the boat chassis, or connect
the terminals of the right speakers with those of the left speaker.
Do not connect the ground (earth) lead of this unit to the negative (–)
terminal of the speaker.
Do not attempt to connect the speakers in parallel.
Connect only passive speakers. Connecting active speakers (with built-
in amplifiers) to the speaker terminals may damage the unit.
To avoid a malfunction, do not use the built-in speaker leads installed
in your boat if the unit shares a common negative (–) lead for the right
and left speakers.
Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly, “FAILURE” appears
in the display. In this case, make sure the speaker and amplifier are
connected correctly.
BUS AUDIO IN
BUS CONTROL IN
REMOTE IN
Satellite radio tuner
(XM/SIRIUS)*
Syntoniseur radio satellite
(XM/SIRIUS)*
Sintonizador de radio por
satélite (XM/SIRIUS)*
* not supplied
non fourni
no suministrado
× 4
Marine remote commander
Télécommande marine
Mando a distancia subacuático
* not waterproof
non étanche
no es resistente al agua
RM-X60M RM-X11M
©2010 Sony Corporation Printed in Thailand
