128
DVP-CX777ES
SECTION 8
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

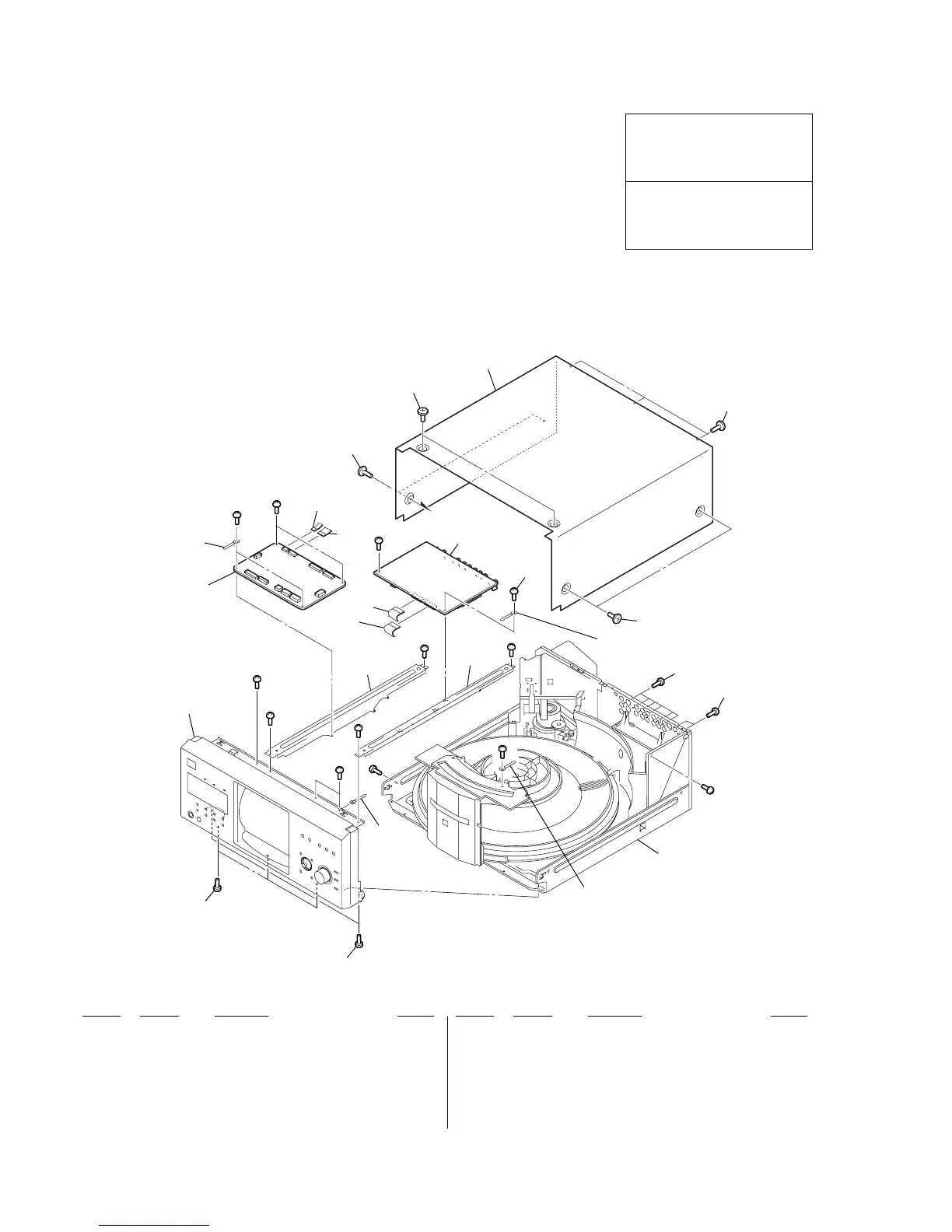

8-1. OVERALL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 A-4733-709-A MB BOARD, COMPLETE
2 1-827-575-11 WIRE (FLAT TYPE) (9 CORE)
3 1-827-583-11 WIRE (FLAT TYPE) (26 CORE)
4 1-827-585-11 WIRE (FLAT TYPE) (23 CORE)
5 1-827-584-11 WIRE (FLAT TYPE) (27 CORE)
6 4-227-843-11 SCREW (TP), FLAT HEAD
7 X-4955-691-1 CASE (ES) ASSY
8 A-4733-699-A AV BOARD, COMPLETE
9 3-704-515-11 SCREW (BV/RING)
10 3-704-515-21 SCREW (BV/RING)
11 3-970-608-31 SUMITITE (B3), +BV
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
1
2
3
4
5
6
6
6
6
10
10
7
8
#1
not
supplied
not
supplied
front panel section
not
supplied
not
supplied
not
supplied
not supplied
power block section
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
11
9
9
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
To Next Page
