Sony DXC-D50WS - System Configurations; Triax CCU Operation; Camcorder Operation with VTRs

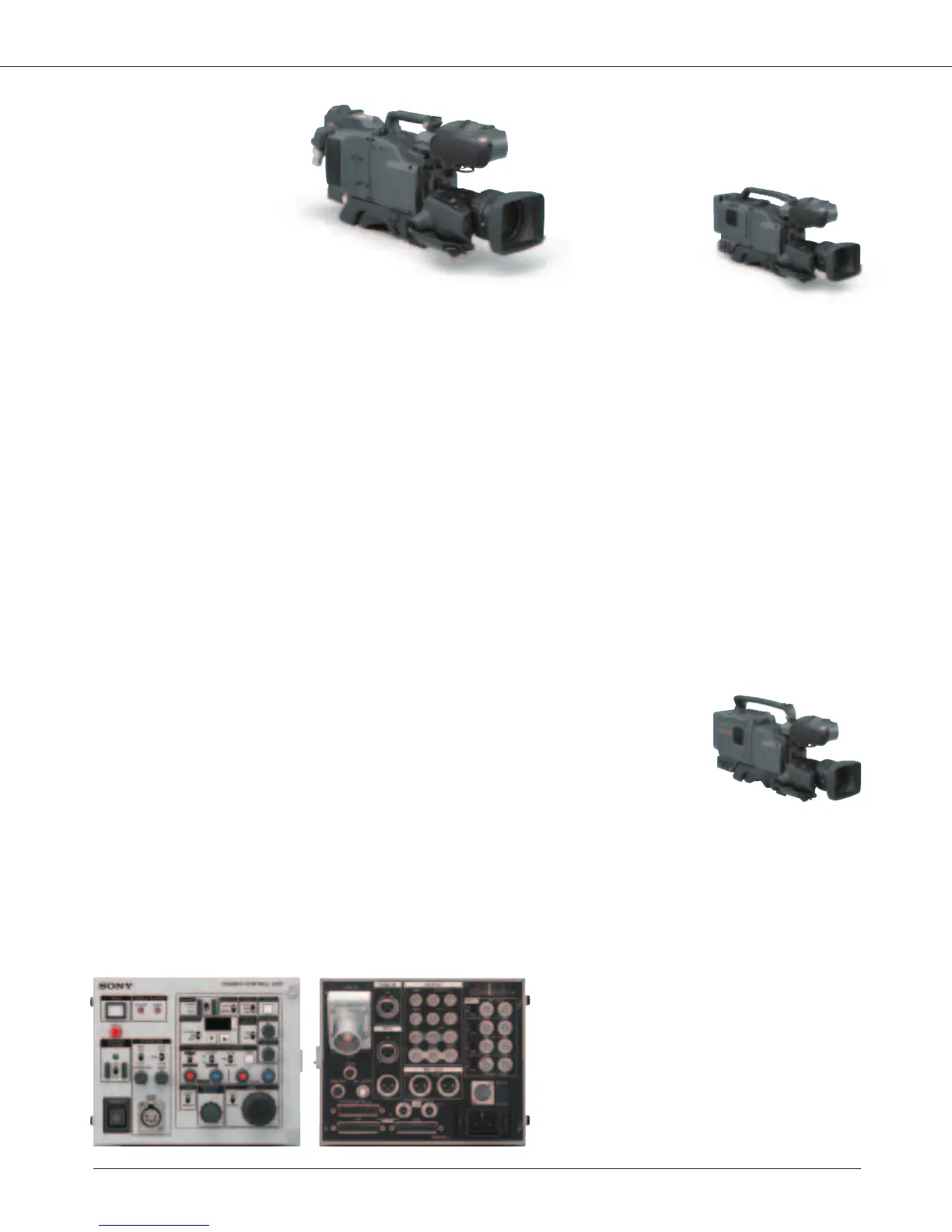

CCU-TX7 Front Panel CCU-TX7 Rear Panel
8
Triax CCU Operation
- for Wide-Bandwidth Transmission
CCU-TX7 & CA-TX7
With the CA-TX7/TX7P Triax
Camera Adaptor attached, the
DXC-D50/D50WS can be remotely controlled from the
CCU-TX7/TX7P Camera Control Unit using a Triax cable, the
use of which enables sophisticated remote control over
extended operating distances. The wide-band width
transmission system is employed, enabling the higher
resolution of DXC-D50/50WS camera to be transmitted with
virtually no drop in resolution.
The CCU-TX7/TX7P supports the following features:
• Wideband transmission
(10 MHz for Y and 4.5 MHz for R-Y/B-Y)
• High-quality analog component-video transmission
• Long-distance transmission
(ex. 1500 m/5,000 ft. via a ø 14.5 mm cable)
• Wide range of advanced control functions
• AC/DC operation
• Compatibility with remote control panels, including the
RCP-D50, RCP-D51 and COU-TX7 (built-in type)
• SDI outputs (with optional DXBK-701)
• Two composite outputs, two component outputs
(Y/R-Y/B-Y, R/G/B or Y/C)
• Two inputs for return video (BNC type)
• Teleprompter support
• Red/Green tally indication
• Support for major intercom systems
(two-wire/four-wire/RTS/Clearcom)
• Program audio input
• Two-channel microphone system (two XLR connectors)
• RS-232C port for multiple camera operation or connection
to a PC
Camcorder Operation
DSR-1 (DVCAM VTR)
The DSR-1/1P is a dockable recorder that
allows 4:1:1 (NTSC)/4:2:0 (PAL), 8-bit
DVCAM digital recordings. This
configuration provides a long recording
time and supports both DVCAM Mini and
Standard cassette types.
• Compact and lightweight: 3.1 kg
(6 lb 13 oz) including battery
• Support for both Mini and Standard
cassettes
• Superb picture quality of the DVCAM
format
• Playback capability of DV-recorded
tapes (SP mode only)
• Long recording time of 184 (Standard
cassette)/40 (Mini cassette) minutes
PVV-3 (Betacam SP VTR)
By combining the DXC-D50/D50WS with
the PVV-3/3P Betacam SP recorder, you
can easily configure a Betacam SP
camcorder system.
• Compact and lightweight: 3.5 kg
(7 lb 11 oz) including battery
• Superb picture quality of the
Betacam SP format
• More than 30 minutes
recording time
