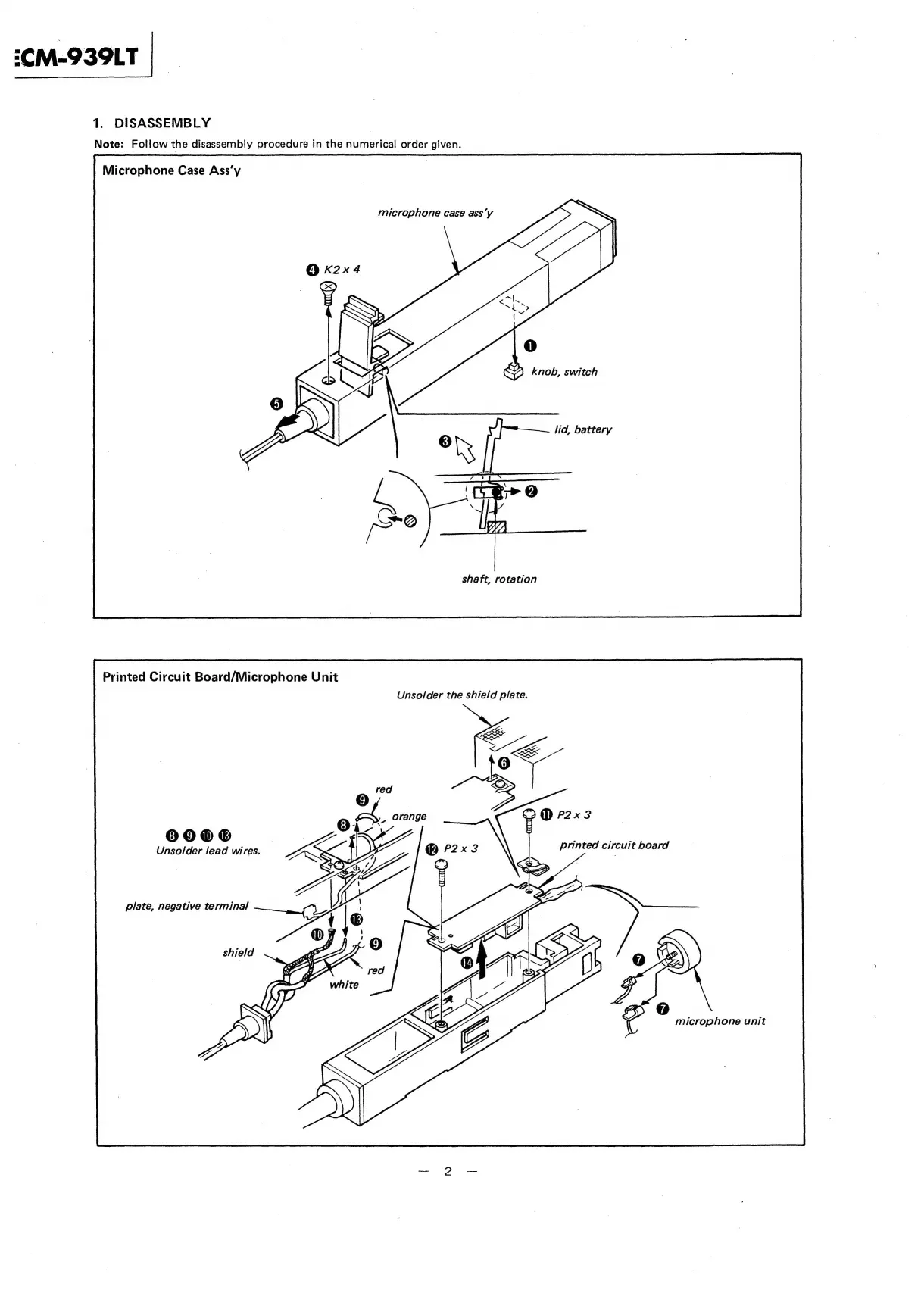

1. DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
Microphone Case Ass’y
microphone case ass’y
~|.
S.y ~,
eg
A knob, switch
lid, battery
shaft, rotation
Printed Circuit Board/Microphone Unit
Unsolder the shield plate.
@ P2x3
089008
Unsolder lead wires.
printed circuit board
plate, negative terminal
shield
microphone unit
