ECM-939LT |

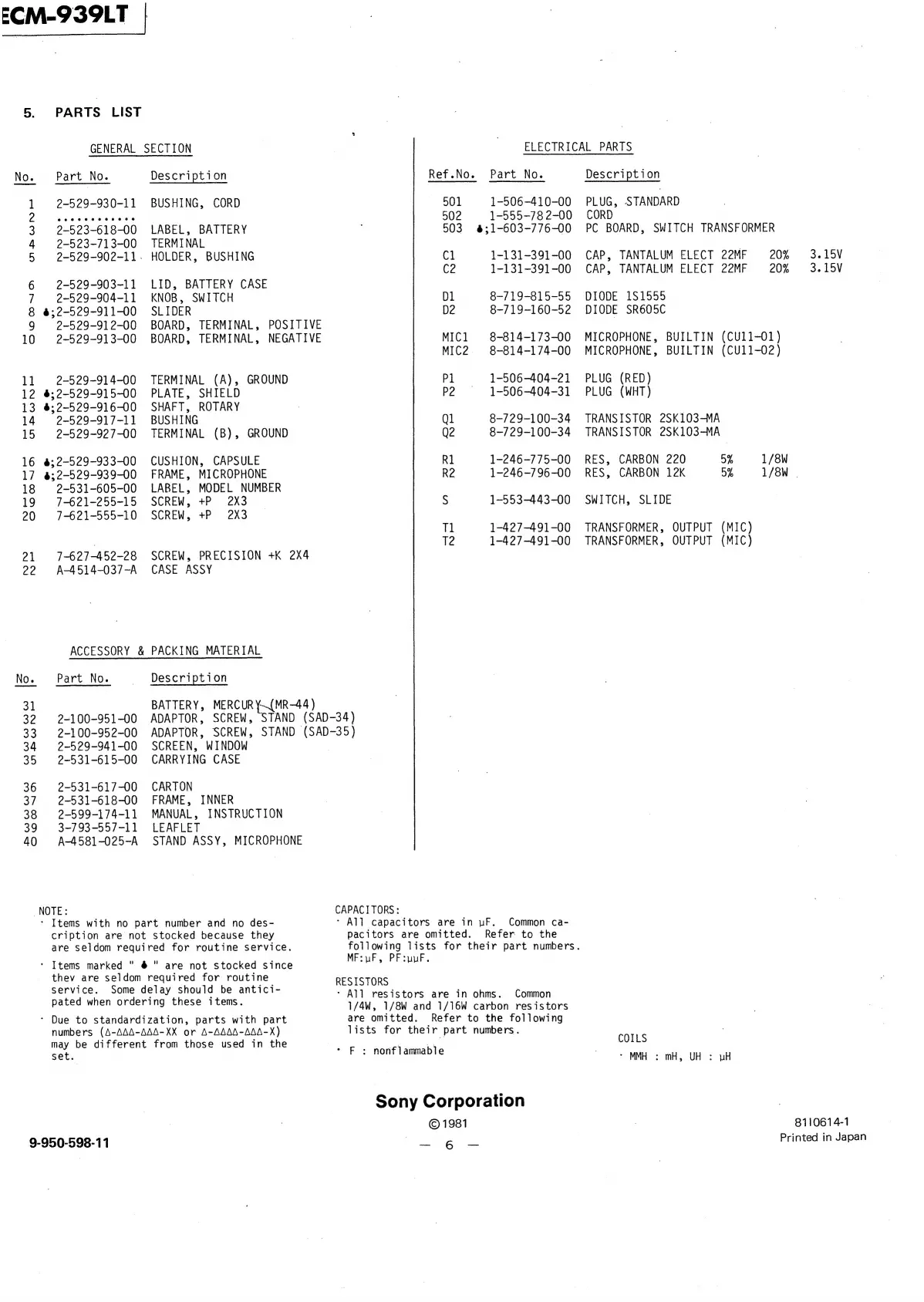

5. PARTS LIST
GENERAL SECTION
ELECTRICAL PARTS
No. Part No. Description Ref.No. Part No. Description
1
2-529-930-11
BUSHING,
CORD
501
1-506-410-00
PLUG,
STANDARD
2 Swedine seuss 502 1-555-782-00 CORD
3 2-523-618-00 LABEL, BATTERY 503 #;1-603-776-00 PC BOARD, SWITCH TRANSFORMER
4 2-523-713-00 TERMINAL
5
2-529-902-11-
HOLDER,
BUSHING
Cl
1-131-391-00
CAP,
TANTALUM
ELECT
22MF
20%
3.15V
C2 1-131-391-00 CAP, TANTALUM ELECT 22MF 20% 3.15V
6 2-529-903-11 LID, BATTERY CASE
7 2-529-904-11 KNOB, SWITCH Dl 8-719-815-55 DIODE 181555
8 @;2-529-911-00 SLIDER D2 8-719-160-52 DIODE SR605C
9
2-529-912-00
BOARD,
TERMINAL,
POSITIVE
.
10 2-529-913-00 BOARD, TERMINAL, NEGATIVE MIC1 8-814-173-00 MICROPHONE, BUILTIN (CU11-01)
MIC2 8-814-174-00 MICROPHONE, BUILTIN (CU11-02)
ll
2-529~-914-00
TERMINAL
(A),
GROUND
Pl
1-506-404-21
PLUG
(RED)
12
@;2-529-915-00
PLATE,
SHIELD
P2
1-506-404-31
PLUG
(WHT)
13 6;2-529-916-00 SHAFT, ROTARY
14 2-529-917-11 BUSHING Ql 8-729-100-34 TRANSISTOR 2SK103-MA
15 2-529-927-00 TERMINAL (B), GROUND Q2 8-729-100-34 TRANSISTOR 2SK103-MA
16 ;2-529-933-00 CUSHION, CAPSULE Rl 1-246-775-00 RES, CARBON 220 5% 1/8W
17
632-529-939-00
FRAME,
MICROPHONE
R2
1-246-796-00
RES,
CARBON
12K
5%
1/8W
|
18 2-531-605-00 LABEL, MODEL NUMBER
19
7-621-255-15
SCREW,
+P
2X3
S
1-553-443-00
SWITCH,
SLIDE
20 7-621-555-10 SCREW, +P 2X3 _
Tl 1-427-491-00 TRANSFORMER, OUTPUT (MIC)
t2 1-427-491-00 TRANSFORMER, OUTPUT (MIC)
21 7-627-452-28 SCREW, PRECISION +K 2x4
2 A-4514-037-A CASE ASSY
ACCESSORY & PACKING MATERIAL
No. Part No. Description
3] BATTERY, MERCUR Y(MR-44 )
32 2~100-951-00 ADAPTOR, SCREW, STAND (SAD-34)
33 2-100-952-00 ADAPTOR, SCREW, STAND (SAD-35)
34 2-529-941-00 SCREEN, WINDOW
35 2-531-615-00 CARRYING CASE
36 2-531-617-00 CARTON
37 2-531-618-00 FRAME, INNER
38 2~-599-174-11 MANUAL, INSTRUCTION
39 3-793-557-11 LEAFLET
40 A-4581-025-A STAND ASSY, MICROPHONE
NOTE: CAPACITORS:
* Items with no part number and no des- * All capacitors are in uF. Common ca-
cription are not stocked because they pacitors are omitted. Refer to the
are seldom required for routine service. following lists for their part numbers.
* Items marked " 6" are not stocked since Meru te: PE SHNe
thev are eee eee RESISTORS
Se Cee Cone Ce ene es oe SOnlers - All resistors are in ohms. Common
pated when ordering these items. 1/4W, 1/8W and 1/16W carbon resistors
- Due to standardization, parts with part are omitted. Refer to the following
numbers (A-AAA-AAA-XX or A-AAAA-AAA-X) lists for their part numbers.
may be different from those used in the ie agian es bl COILS
set. ce a aaa - MMH: mH, UH : uH
Sony Corporation
©1981 8110614-1
a
Printed
in
Japan
9-950-598-11
