Sony EVI-D30 - Remote Commander Layout

23
EN
continue to next page
Remote commander
1
AUTO
2
3
CAMERA SELECT
ON/OFFFAR ENTRYOFFSET
FOCUS
POWER
BACK LIGHT
CHASE
AT
MD
NEAR
MENU
HOME
CURSOR
L/R
DIRECTION SET
PAN-TILT
RESET
AUTO ZOOM
AE
ON/OFF
MANUAL
DETECTFRAME
PRESET
RESET
POSITION
PAN-TILT/CURSOR
SLOW·
ZOOM·
FAST
TT
WW
DATA SCREEN
STD REV
123
456
START/STOP FRAME DISPLAY
1
2
3
4
5
6
7
8
9
10
11
12
13
14

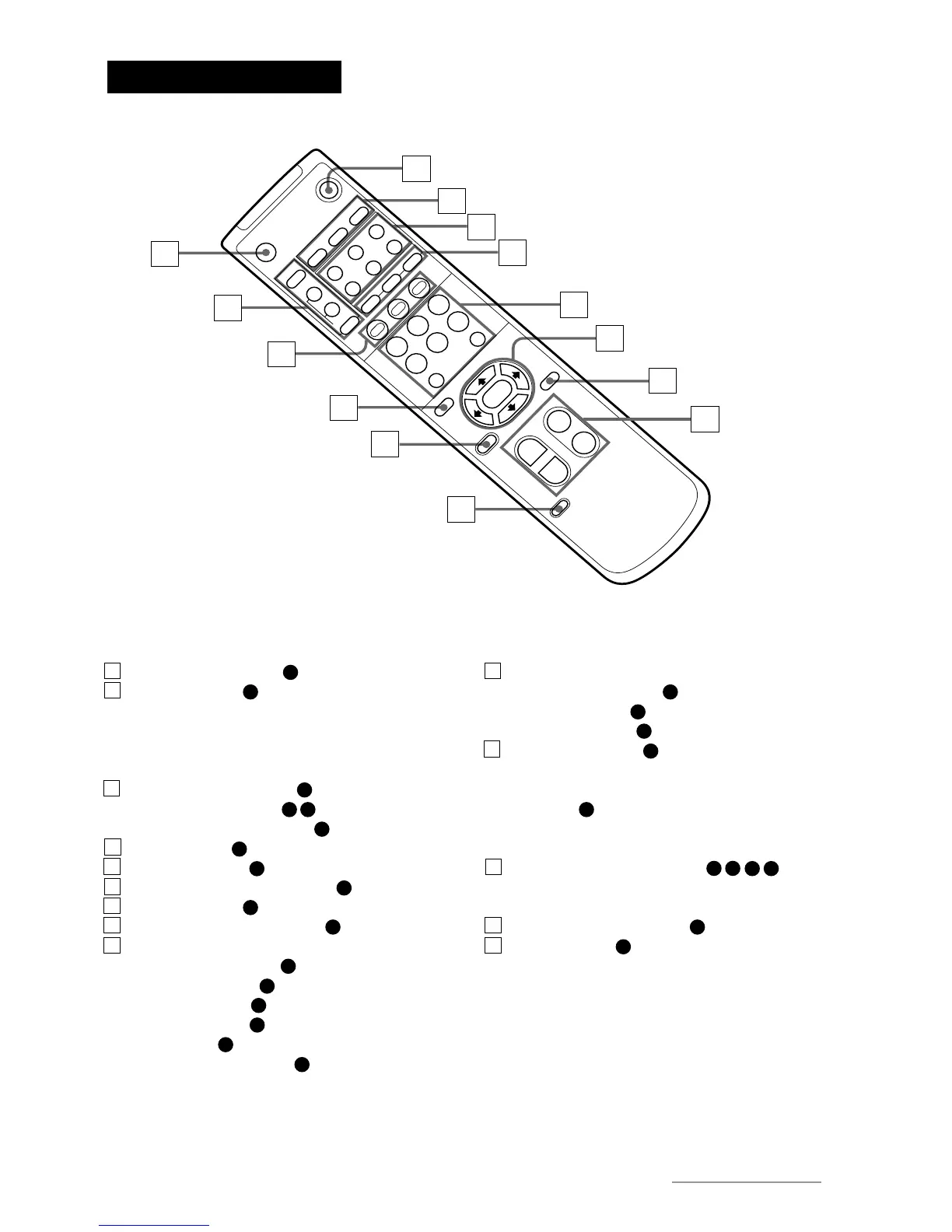

1 BACK LIGHT button 11
2 FOCUS buttons 11
AUTO button
FAR button
NEAR button
MANUAL button
3 DATA SCREEN button
15
START/STOP button 14 19
FRAME DISPLAY button 15
4 MENU button 20
5 CURSOR button 21
6 L/R DIRECTION SET button 10
7 POWER switch 10
8 CAMERA SELECT buttons 11
9 AT mode buttons
AT ON/OFF button
14
OFF SET button 16
ENTRY button 17
CHASE button 14
AE button 15
AUTO ZOOM button 15
10 MD mode buttons
MD ON/OFF button
18
FRAME button 19
DETECT button 19
11 POSITION buttons 12
Numeric buttons (Button 1 also works as the
STD button./Button 2 also works as the REV
button.)
10
PRESET button
RESET button
12 PAN-TILT/CURSOR button 10 14 16 19
Arrow buttons
HOME button
13 PAN-TILT RESET button 10
14 ZOOM buttons 11
SLOW T button
SLOW W button
FAST T button
FAST W button
