58
Specifications
LVDS receiver IC (example: THC63LVD104C)
Pin assignment LVDS input - CMOS/TTL output
Pin No. Description Signal Pin No. Description Signal
1 GND1 33 RB5
2 TEST 34 RB4
3 PD 35 RB3
4 OE 36 RB2
5 A/F 37 VCC3
6 RE6 38 RB1
7 RE5 39 RB0
8 RE4 40 RA6
9 VCC1 41 RA5
10 RE3 42 RA4
11 RE2 43 RA3
12 RE1 44 GND4
13 RE0 45 RA2
14 RD6 46 RA1
15 RD5 47 RA0
16 GND2 48 VCC4
17 RD4 49 RA− AXIN0−
18 RD3 50 RA+ AXIN0+
19 RD2 51 RB− AXIN1−
20 RD1 52 RB+ AXIN1+
21 RD0 D7 53 LVCC
22 RC6 D6 54 RC− AXIN2−
23 VCC2 55 RC+ AXIN2+
24 RC5 D5 56 PCLK− AXCLKIN−
25 RC4 D4 57 PCLK+ AXCLKIN+
26 RC3 D3 58 LGND
27 RC2 D2 59 RD− AXIN3−
28 RC1 D1 60 RD+ AXIN3+
29 RC0 D0 61 RE−
30 GND3 62 RE+
31 CLKOUT CLK 63 PGND
32 RB6 64 PVCC

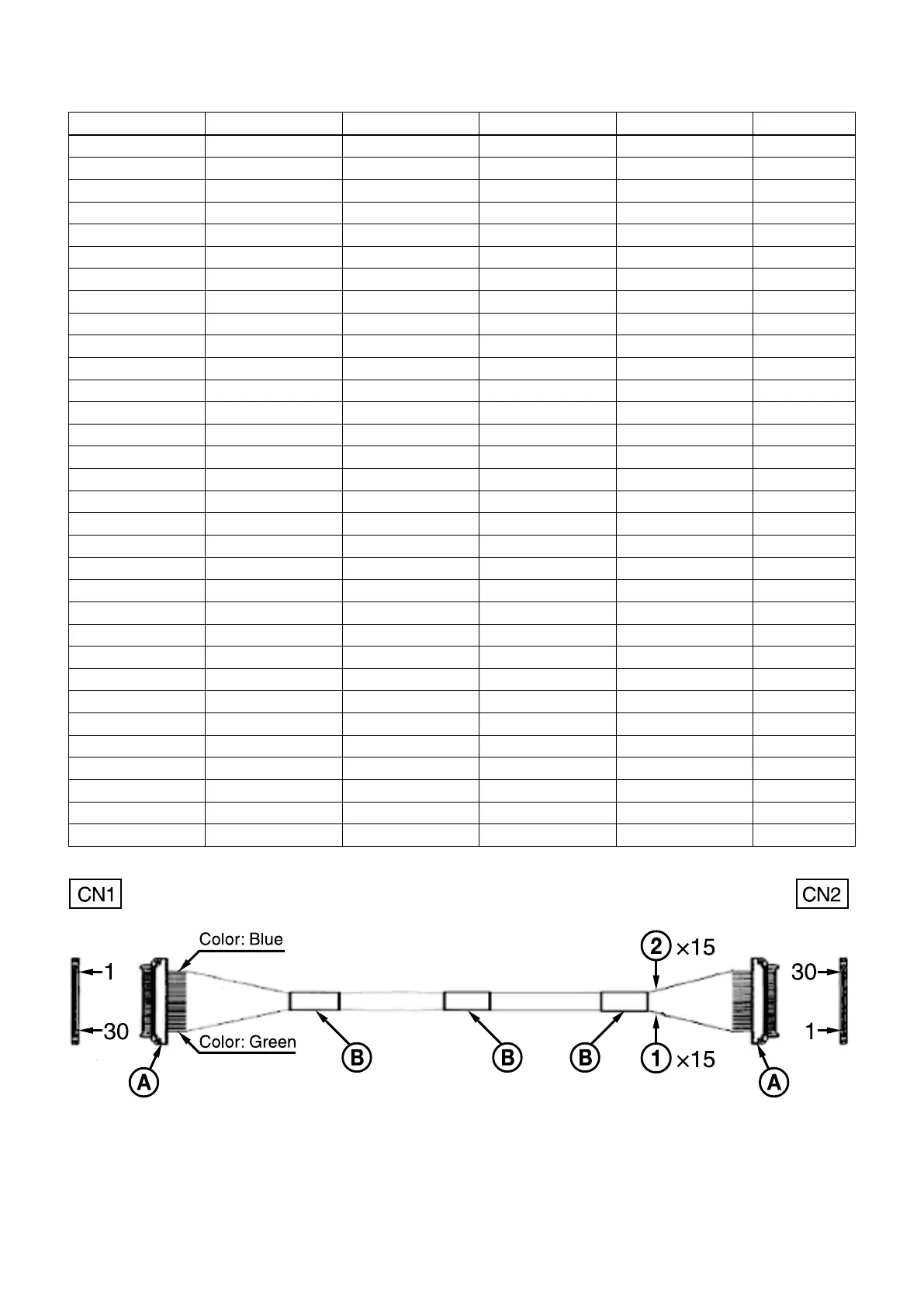

Cable reference specifications (crossover)
• Recommended connectors and cables
Cable green: #42 thin coaxial cable
Cable blue: #42 thin coaxial cable
Connector: USL20-30S (KEL)
Binding tape
