Sony FCB-ER8550 - Page 70

FCB-ER8550/CR8550(GB) D-201-100-12(1)
70

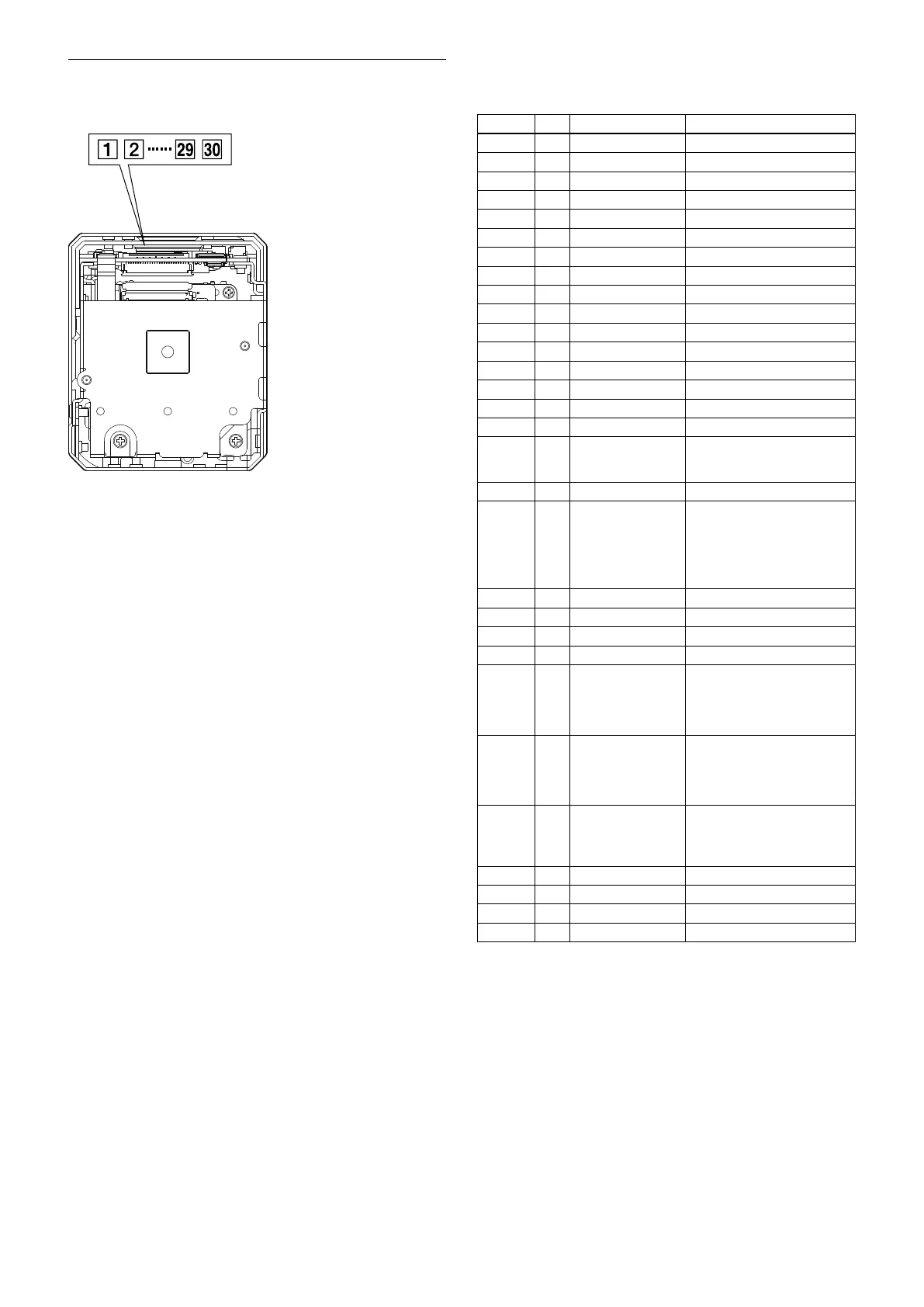

Connector (CN1701)
CN1701
KEL Co. USL00-30L-C
Pin No. I/O Name Level
1  GND
2 O TMDS Clock −
3 O TMDS Clock +
4  GND
5 O TMDS Data 0 −
6 O TMDS Data 0 +
7  GND
8 O TMDS Data 1 −
9 O TMDS Data 1 +
10  GND
11 O TMDS Data 2 −
12 O TMDS Data 2 +
13  GND
14 O XSD0_ACC_LED Only FCB-ER8550
15 I EXT_SYNC Only FCB-ER8550
16 O EXT_SYNC_LOCK Only FCB-ER8550
17 I Hot Plug Detect TMDS Out: 5V DC
TMDS Stop: Open or GND
18 O + 5V Power
19 I USB_VBUS
USB communication active:
5 V DC
USB communication
inactive: Open or GND
20  GND
21 I/O USB_D −
22 I/O USB_D +
23  GND
24 I VISCA_RxD
CMOS 3.1V
(High: Min 2.3 [V],
Low: Max 1.0 [V])
25 O VISCA_TxD
CMOS 3.1V
(High: Min 2.7 [V],
Low: Max 0.4 [V])
26 I RESET Reset operation: Low (GND)
Reset cancel: Open (High
Impedance)
27 I DC IN 6 to 12 V DC
28 I DC IN 6 to 12 V DC
29 I DC IN 6 to 12 V DC
30 I DC IN 6 to 12 V DC
* It is assumed that Pin No. 18 is used as the 5 V power supply of HDMI.
* When you use the USB communication, connect VBUS of the USB host to
Pin No. 19.
If you cannot prepare VBUS, connect Pin No. 18 to Pin No. 19.
Pin assignment
