Basic Functions
FCB-EH6300(GB) A-E23-100-13(1)
Low-Illumination Chroma Suppress Mode
You can configure a chroma suppress mode for low-
illumination conditions. This can be useful when color
noise is particularly noticeable in such conditions.
Four levels (disabled and three levels) are available for
the low-illumination chroma suppress mode.
ICR (IR Cut-Removable) Mode
An infrared (IR) Cut-Filter can be disengaged from the
image path for increased sensitivity in low light
environments. The ICR will automatically engage
depending on the ambient light, allowing the camera to
be effective in day/night environments.
When the auto ICR mode is set to ON, the image
becomes black and white.
Custom Color Gain
You can configure the color gain. Use this setting when
bright color is particularly important.
The initial setting 100% (4h) can be set to range from
approx. 60% (0h) to 200% (Eh) with 15 stages.
Custom Color Phase
You can configure the color phase.
The initial setting 0 degrees (7h) is adjustable between
approx. −14 degrees (0h) and +14 degrees (Eh), in
15 increments.
Auto ICR Mode
Auto ICR Mode automatically switches the settings
needed for attaching or removing the IR Cut Filter.
With a set level of darkness, the IR Cut Filter is
automatically disabled (ICR ON), and the infrared
sensitivity is increased. With a set level of brightness,
the IR Cut Filter is automatically enabled (ICR OFF).
Also, on systems equipped with an IR light, the internal
data of the camera is used to make the proper decisions
to avoid malfunctions.

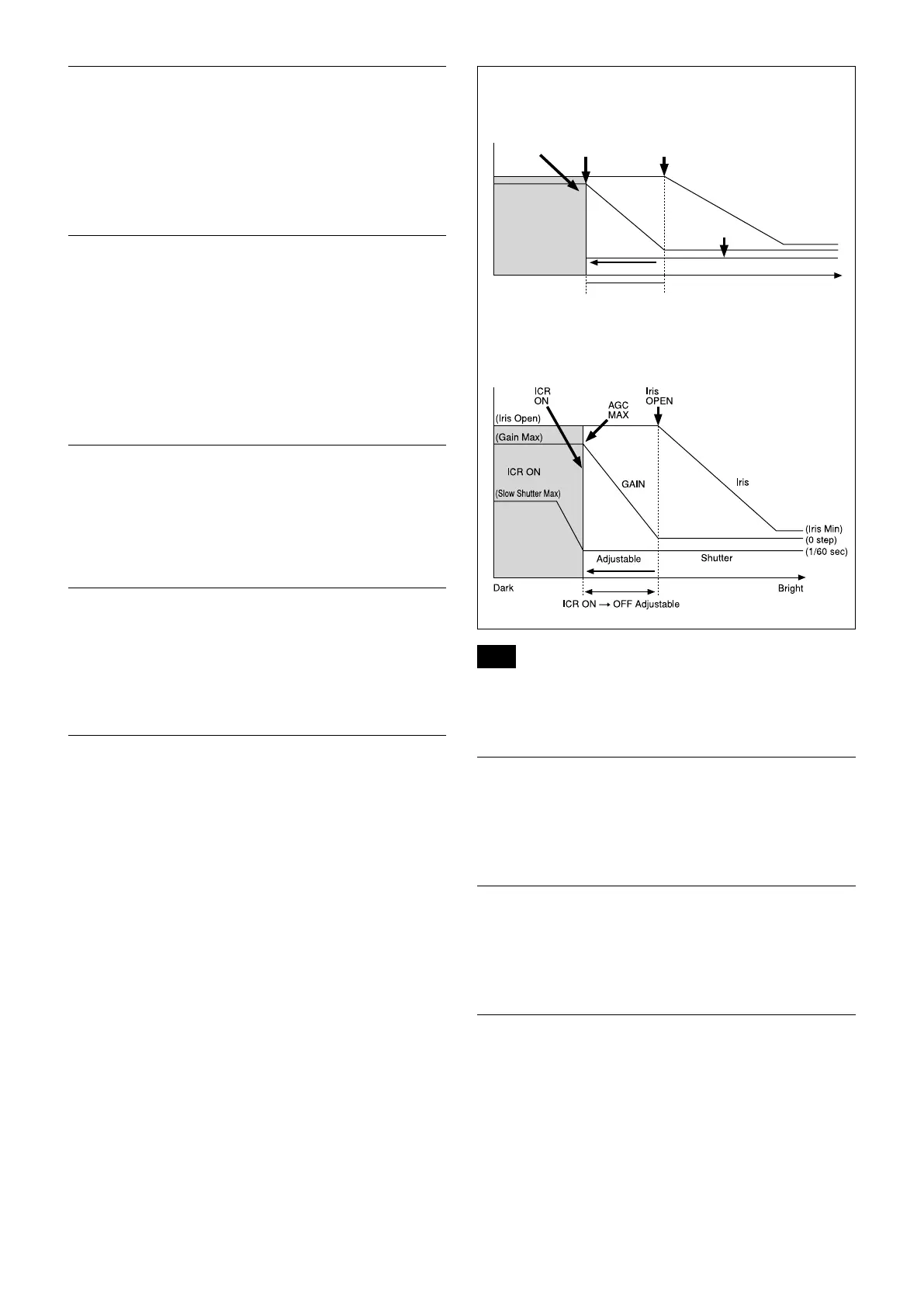

Auto ICR Mode operates with the AE Full Auto setting.
ICR
Shutter
Dark Bright
AGC
MAX
Iris
OPEN
Shutter 1/60 sec
ICR OFF t ON
GAIN
ICR ON
Iris
When Auto Slow Shutter is On
When Auto Slow Shutter is Off (initial setting)
Note
Depending on the information such as brightness, etc., in the On/
Off settings condition, a malfunction may occur when the subjects
largely consisting of blue and green colors are taken.
Camera ID
The ID can be set up to 65,536 (0000h to FFFFh). As
this will be memorized in the nonvolatile memory
inside, data will be saved.
Picture Effect
It consists of the following functions.
• Neg. Art: Negative/Positive Reversal
• Black & White: Monochrome Image
Others
E-FLIP
This function reverses the video output from the
camera vertically and horizontally.
LR Reverse
This function reverses the video output from the
camera horizontally.
