Sony FCB-EV7100 - Cable Reference and Output Format

66
Specifications
FCB-EH6500(GB) A-EEP-100-11(1)

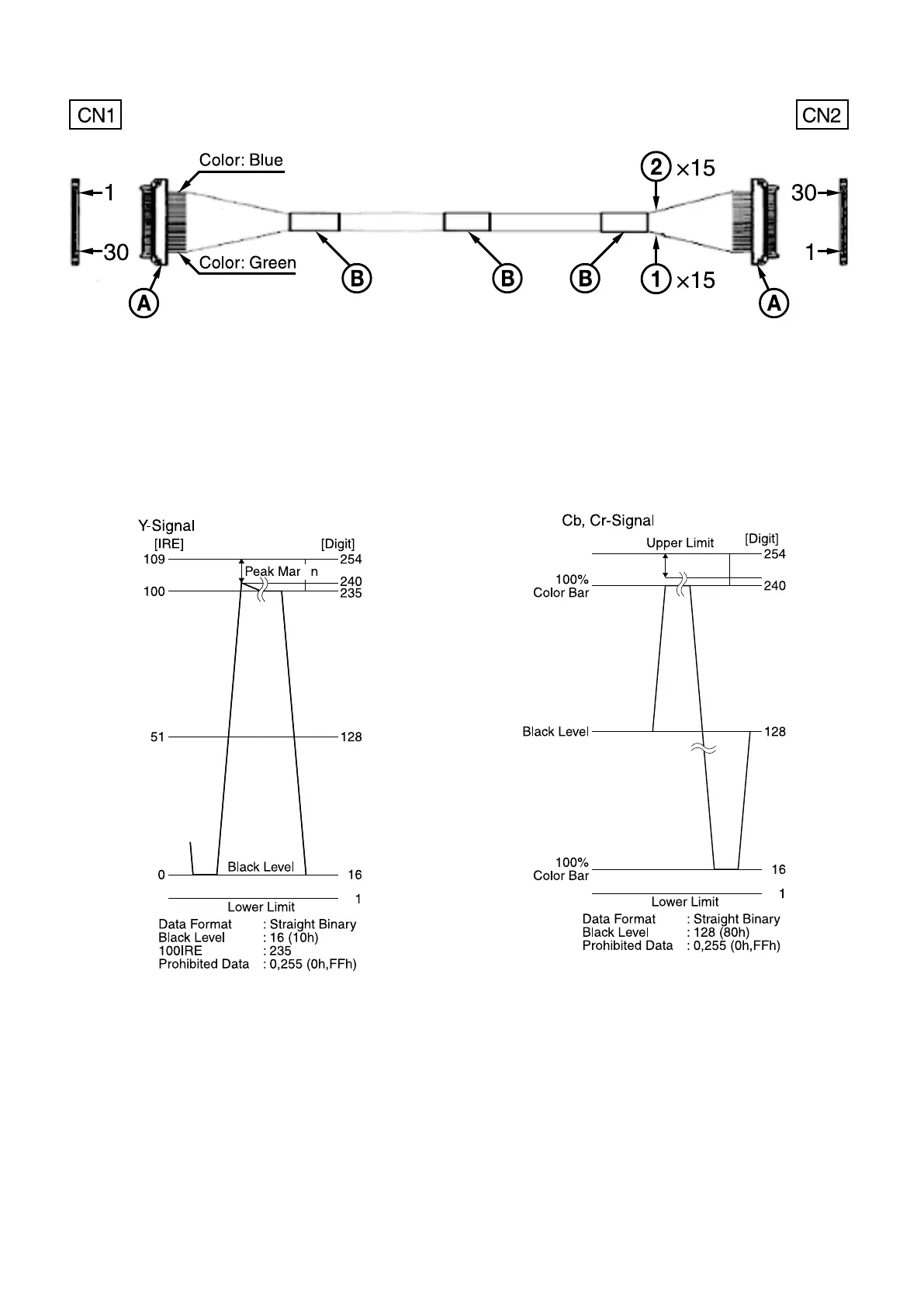

Cable reference specifications (crossover)
• Recommended connectors and cables
Cable green: #42 thin coaxial cable
Cable blue: #42 thin coaxial cable
Connector: USL20-30S (KEL)
Binding tape

DIGITAL Image Output Y, Cb, Cr 4:2:2 FORMAT
[Digit]
Peak Margin
240
128
16
Black Level
Lower Limit
Data Format
Black Level
100IRE
Prohibited Data
: Straight Binary
: 16 (10h)
: 235
: 0,255 (0h,FFh)
1
235
109
[IRE]
Y-Signal
51
0
100
254
Color coding complies with BT709.
