Sony FCB-EV7100 - Mechanical Dimensions

70
Specifications
FCB-EH6500(GB) A-EEP-100-11(1)

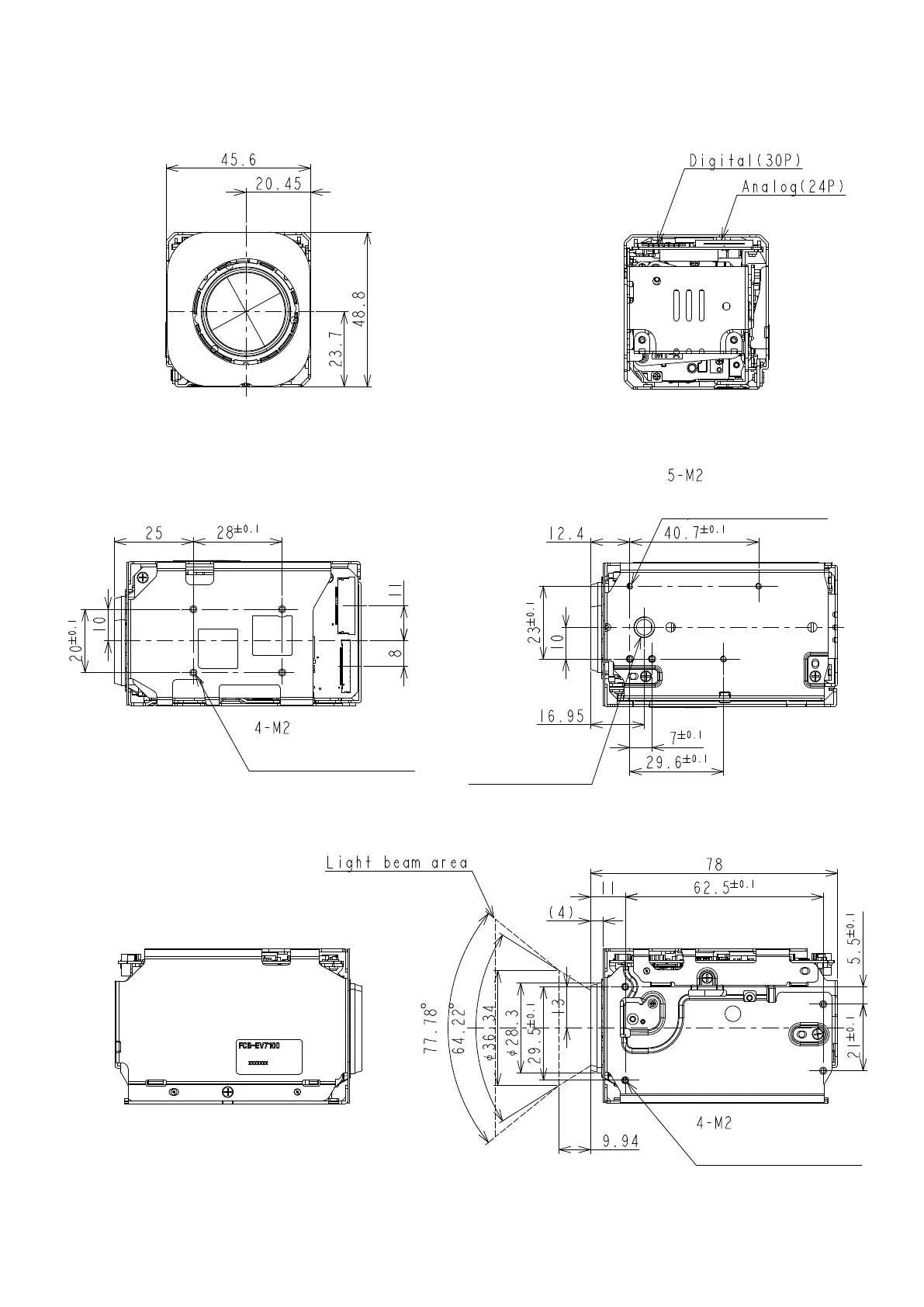

Dimensions
Unit : mm (inches)
Front Back
Top Bottom
Left side Right side
Within a depth of 3 mm (
1
/8 in.)
or less from the side
Within a depth of 3 mm (
1
/8 in.)
or less from the bottom surface
Within a depth of 3 mm (
1
/8 in.)
or less from the top surface
Screw for camera tripod
within a depth of
4.5 mm (
3
/16 in) or less
(1/40-20UNC)
