Sony FCB-EX45MC - Pin Assignment

55
Specifications

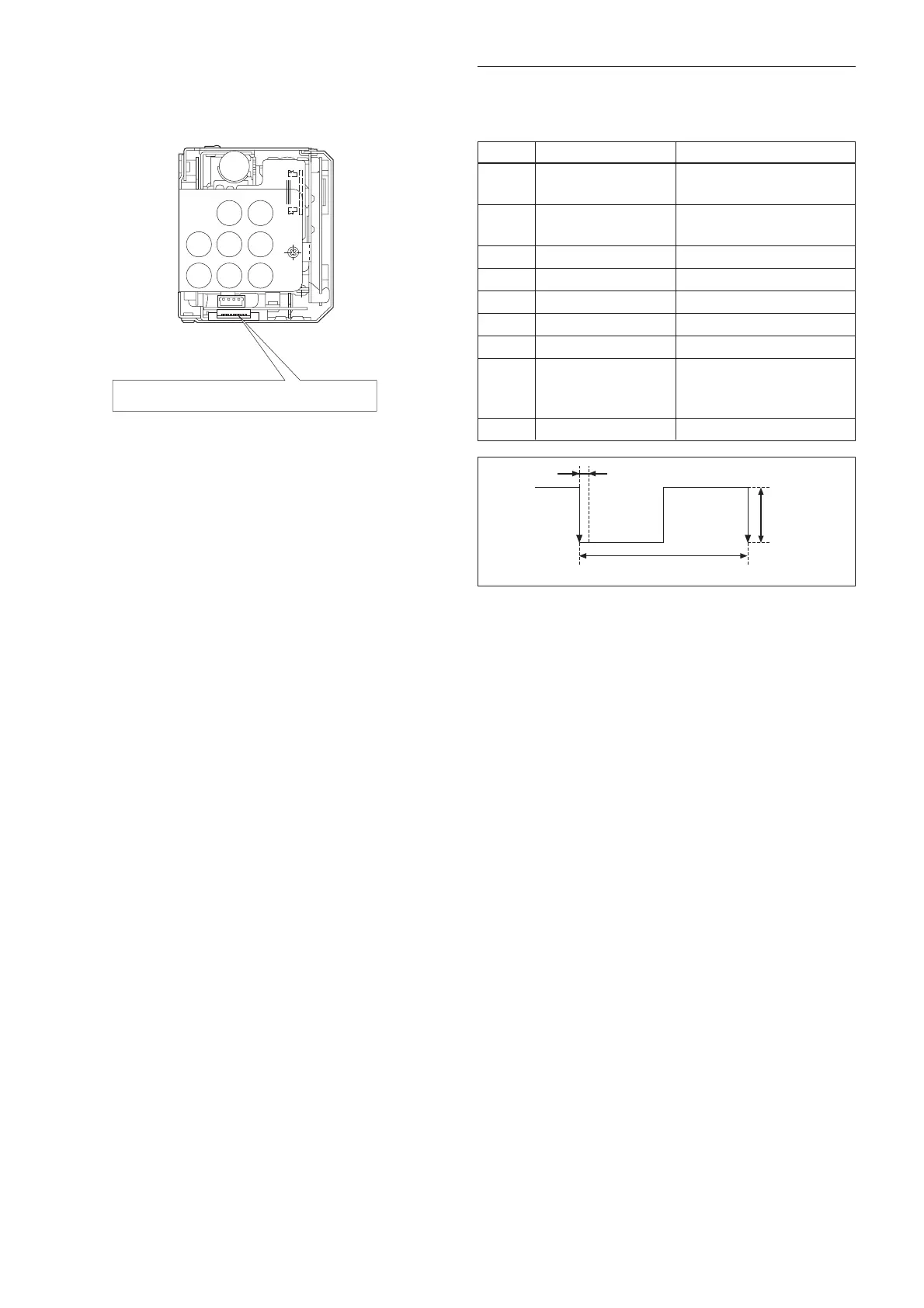

Pin assignment
CN992
KYOCERA ELCO 00 6200 097 032 800
987654321
Pin No. Name Level
1 RxD CMOS 5V (low: max 0.8V,
high: min 2.0V) Read Data
2 TxD CMOS 5V (low: max 0.1V,
high: min 4.4V) Send Data
3 GND (for RxD&TxD)
4 DC IN 9.0V±3V
5 GND (for DC IN)
6 VBS OUT 1.0V±0.2V
7 GND (for VBS OUT)
8V LOCK PULSE External VD-Lock Pulse
(EX.FV: Negative, 3Vp-p
50% duty)
9 GND (VL PULSE)
CN992
3V ±0.5V
60Hz ±1Hz
min. 1 µs (ideal value 50% Duty)
RxD, TxD: Positive TTL level
