6-1
CCD-TRV107/TRV108/TRV308/TRV408/TRV608
SECTION 6
REPAIR PARTS LIST

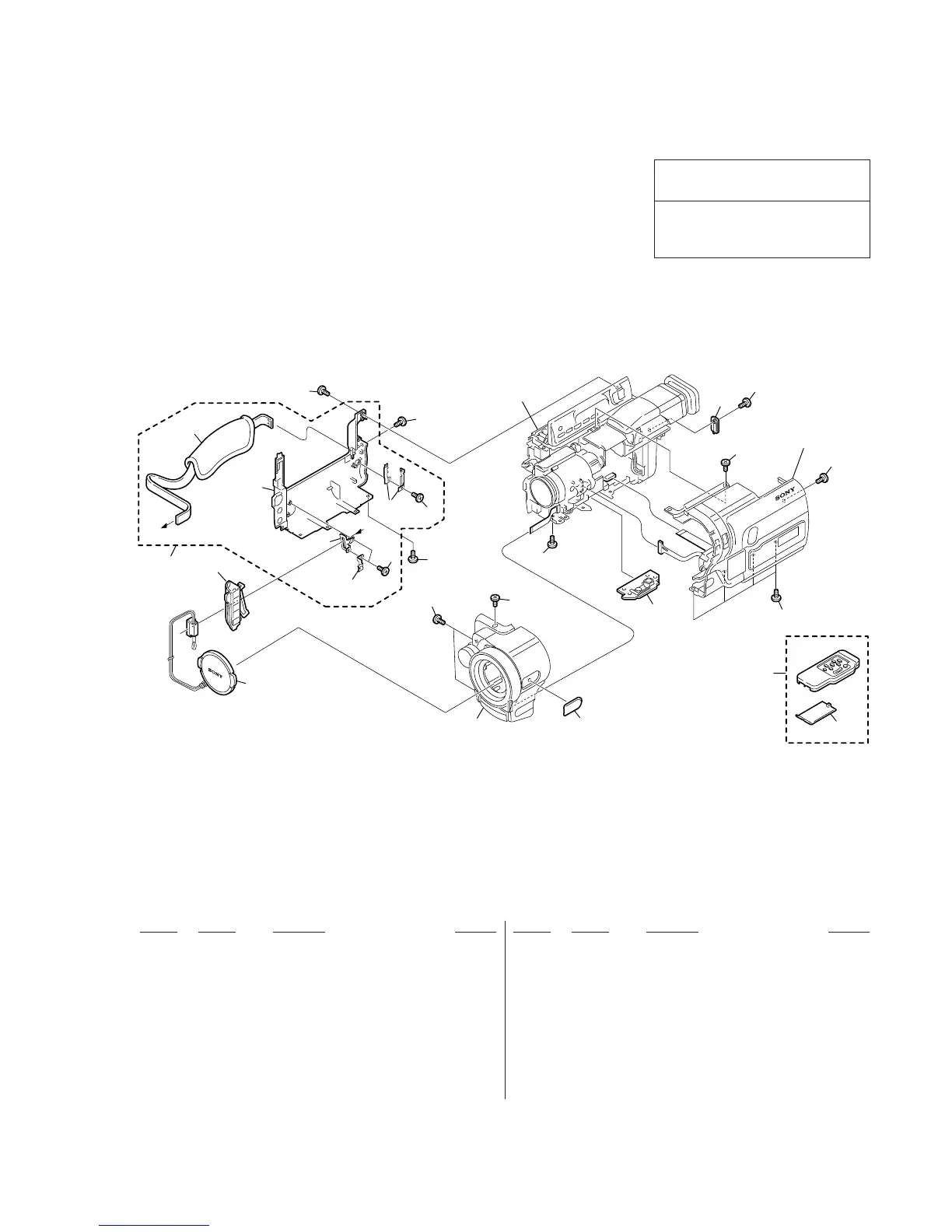

6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian model
HK : Hong Kong model
KR : Korea model
JE : Tourist model
AR : Argentina model
BR : Brazilian model
The components identified by mark 0or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
1 3-067-347-01 MI SCREW M2 (H)
2 3-072-155-01 PLATE (20), MAGNIFICATION (TRV408/TRV608)
2 3-072-155-11 PLATE (20), MAGNIFICATION (TRV108/TRV308)
2 3-072-155-21 PLATE (20), MAGNIFICATION (TRV107)
3 X-3949-376-1 CAP (N) ASSY, LENS
4 3-072-149-01 COVER (20), JACK
(TRV107/TRV108:US,CND,E,BR/TRV308/TRV408/
TRV608:US,CND,E)
4 3-072-149-11 COVER(20), JACK (TRV108:AR/TRV608:AR)
5 X-3952-094-1 CABINET (L) (20) ASSY
6-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6 3-052-815-01 BELT (ES), GRIP
7 3-072-151-01 STOPPER (FRONT) (20), BELT
8 3-948-339-61 TAPPING
9 3-072-148-01 LID (20), CPC
10 3-987-717-01 SCREW
11 1-467-574-21 REMOTE COMMANDER (RMT-708)
(TRV107/TRV408)
12 3-958-131-01 LID, BATTERY CASE (FOR RMT-708)
(TRV107/TRV408)
A
A
not
supplied
not
supplied
not
supplied
3
4
5
6
7
1
1
1
1
1
1
1
1
1
1
9
2
10
11
12
8
8
Cabinet (L) section
(See page 6-3)
F panel section
(See page 6-2)
Cabinet (R) section
(See page 6-7)
Ver 1.1 2002. 03
