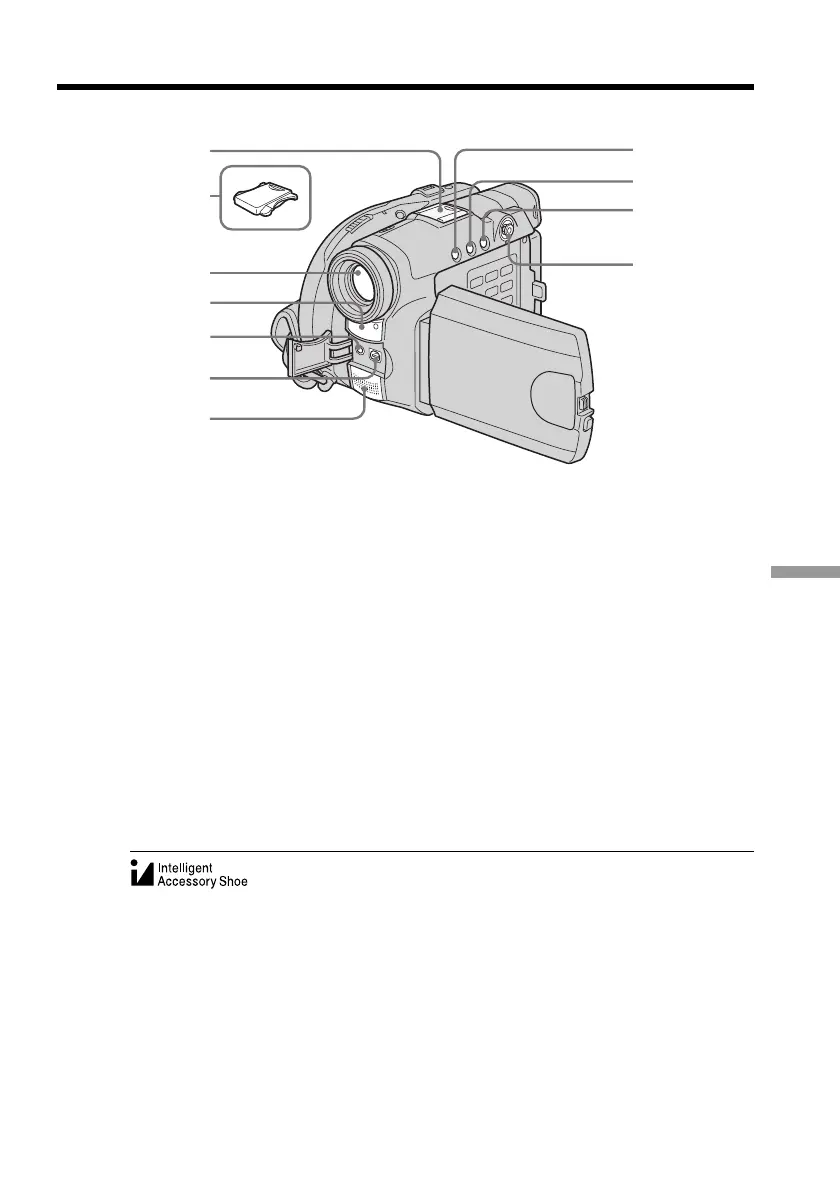

Identifying parts and controls
w; Intelligent accessory shoe
wa Shoe cover
ws Lens
wd Remote sensor/Infrared ray emitter
wf MIC (PLUG IN POWER) jack
Connect an external microphone
(optional). This jack also accepts a
“plug-in-power” microphone. When an
external microphone is connected, it is
preferred for an audio input source.
wg AUDIO/VIDEO jack (page 63)
wh Microphone
wj DISPLAY/BATT INFO button (page 18)
wk BACK LIGHT button (page 43)
wl VISUAL INDEX button (page 56)
e; Multi-selector (page 23)
Notes on the intelligent accessory shoe
•When you use the intelligent accessory shoe, extend the viewfinder and detach the
shoe cover.
•The intelligent accessory shoe supplies power to optional accessories such as a
microphone.
•The intelligent accessory shoe is linked to the POWER button, allowing you to turn
the power supplied by the shoe on and off. Refer to the operating instructions of the
accessory for further information.
•The intelligent accessory shoe has a safety device for fixing the installed accessory
securely. To connect an accessory, press down and push it to the end, and then tighten
the screw.
•To remove an accessory, loosen the screw, and then press down and pull out the
accessory.
To Next Page
