Sony HANDYCAM DCR-TRV130E User Manual

2-7

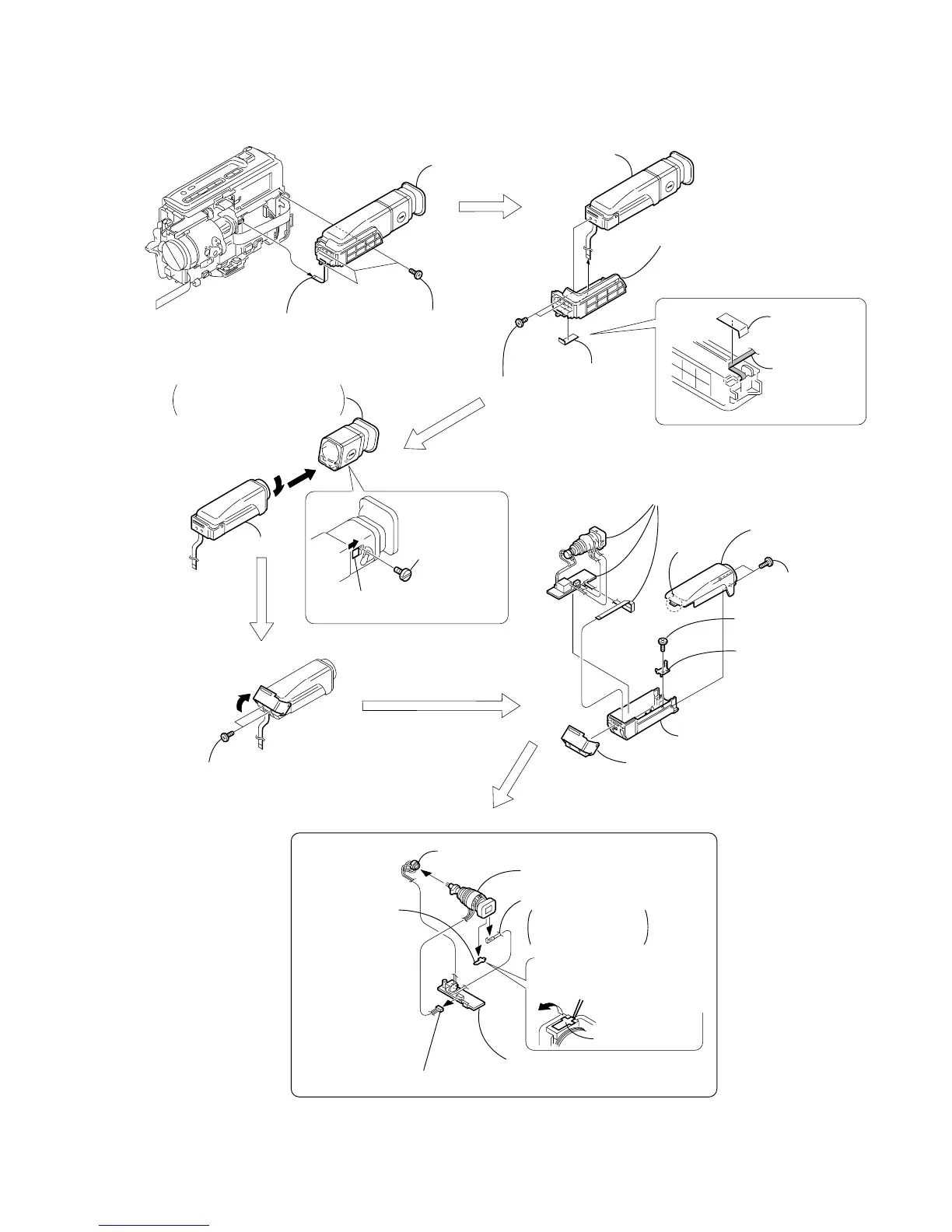

2-6. EVF SECTION (VF-129 BOARD)
2 Three tapping
screws (B2 × 5)
3 EVF section
2 Two tapping
screws (B2 × 5)
1 VF hinge assembly
1 FFC-289 flexible
flat cable (4P)
FFC-289 flexible
flat cable
2 Two loose
stopper screws
(M2 × 3)
1 Tape (A)
4
4
Tape (A)
PRECAUTION DURING
INSTALLATION
3 VF base B
1 F lock
screw (T)
1
2
Slide the button in the
direction of the arrow A .
2 Two tapping
screws
(B2 × 5)
5 Tapping screw
(B2 × 5)
6 EVF tally
7 EVF cabinet lower B
3 Claw
8 CRT assembly, VF-129 board,
FFC-289 flexible flat cable
4 EVF cabinet
upper B assembly
A
B
C
3
Finder (S) assembly
Rotate it in the direction of
the arrow B and remove it
in the direction of the arrow C .
2 CRT socket (4P)
6 CRT assembly
5 Anode cable (1P)
Do not pull the cable,
but remove it in the
vertical direction.
3 Remove the high voltage
cover with a flat head
(–) screwdriver.
1 CRT DT connector (4P)
7 VF-129 board
REMOVING THE CRT ASSEMBLY AND VF-129 BOARD
4 High voltage
cover
High voltage cover
