HCD-DH50R/DH70SWR
7

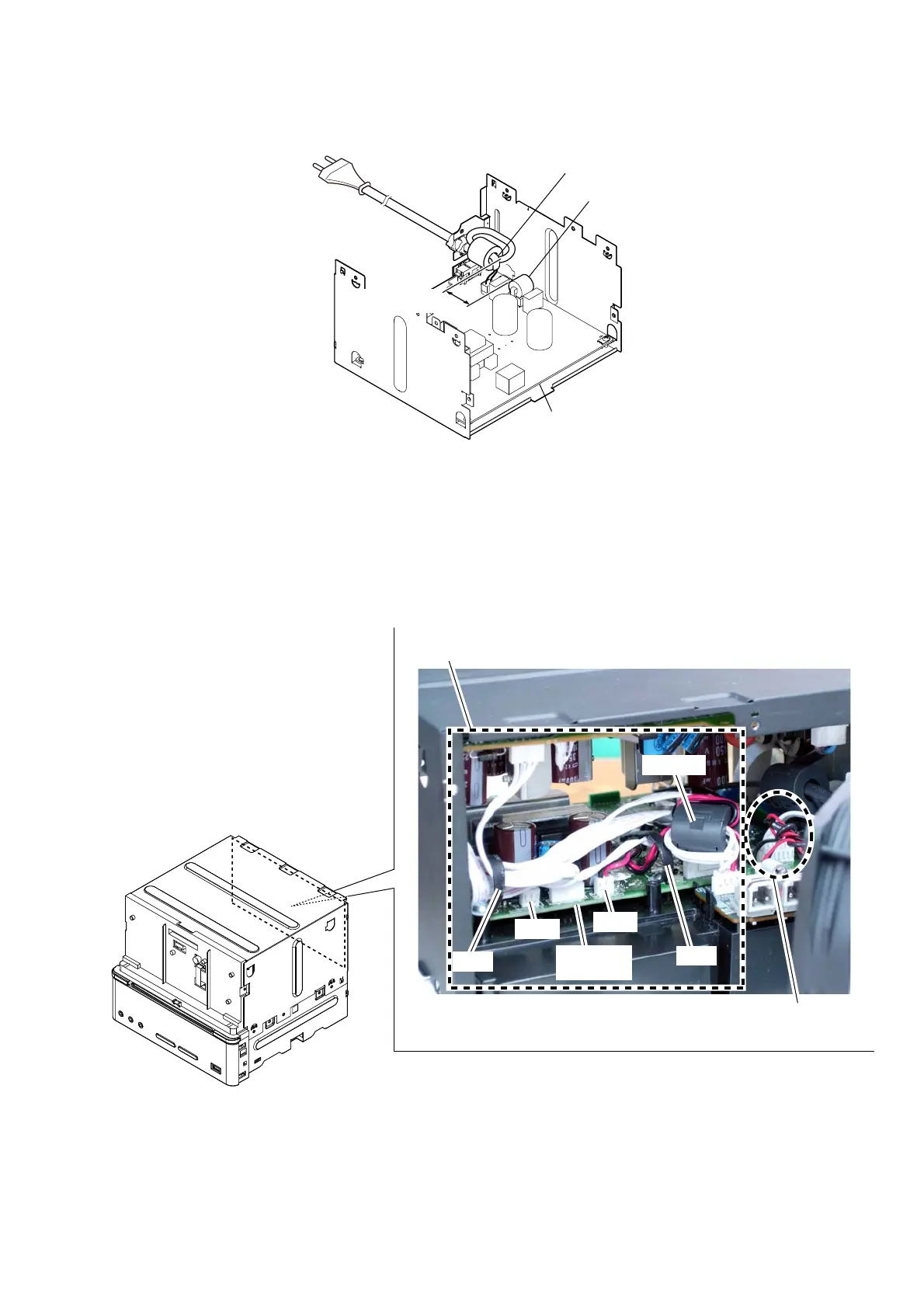

ARRANGEMENT OF POWER CORD
POW-SUPPLY board
(bottom view)
line filter coil (T1)
power cord
15 mm or more
clamp filter
clamp
clamp
Note 3: Turn eight times, bundle the DC fan lead wire,
and fix with the stopper.
Note 1: The wire rod must not leak to the board.
Note 2: Bind CN702 from clamp filter and the wire rod of CN703 with clamp.
CN703
CN702
MAIN board
(rear view)
ARRANGEMENT OF WIRE ROD AND DC FAN LEAD WIRE
To Next Page
