HCD-GTZ2/GTZ2i/GTZ3/GTZ3i
5

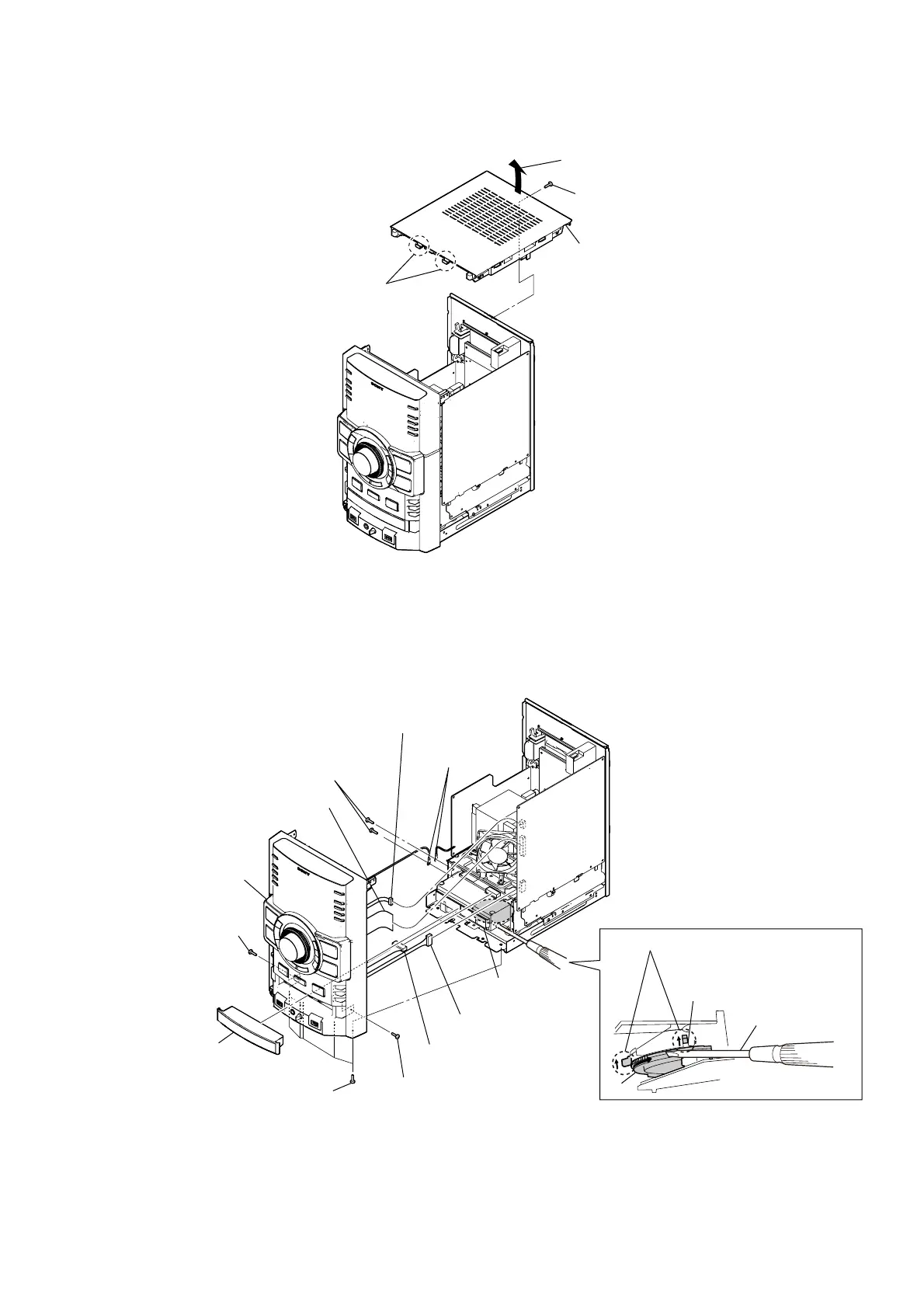

2-3. TOP CASE
1 screw
(BVTP3 u 8)
3 two claws
2 Lift up the back
side of top case.
4 top case
2-4. FRONT PANEL BLOCK
gear
5 connector
(CN404)
4 wire (flat type) (27 core)
(CN405)
8 two screws
(BVTP3 u 8)
9 two harness
0 screw
(BVTP3 u 10)
qs front panel block
3 panel loading
qa five screws
(BVTP3 × 8)
0 screw
(BVTP3 × 10)
7 connector
(CN1501)
lever
1 Turn a gear by
a driver till a lever
rises up to the
position of the figure.
6 connector
(CN470)
2 Pull the tray
by hand.
state of opening the CD tray
