Sony HCD-H170 - Page 5

:134
FH-B170/B177
MHC-700

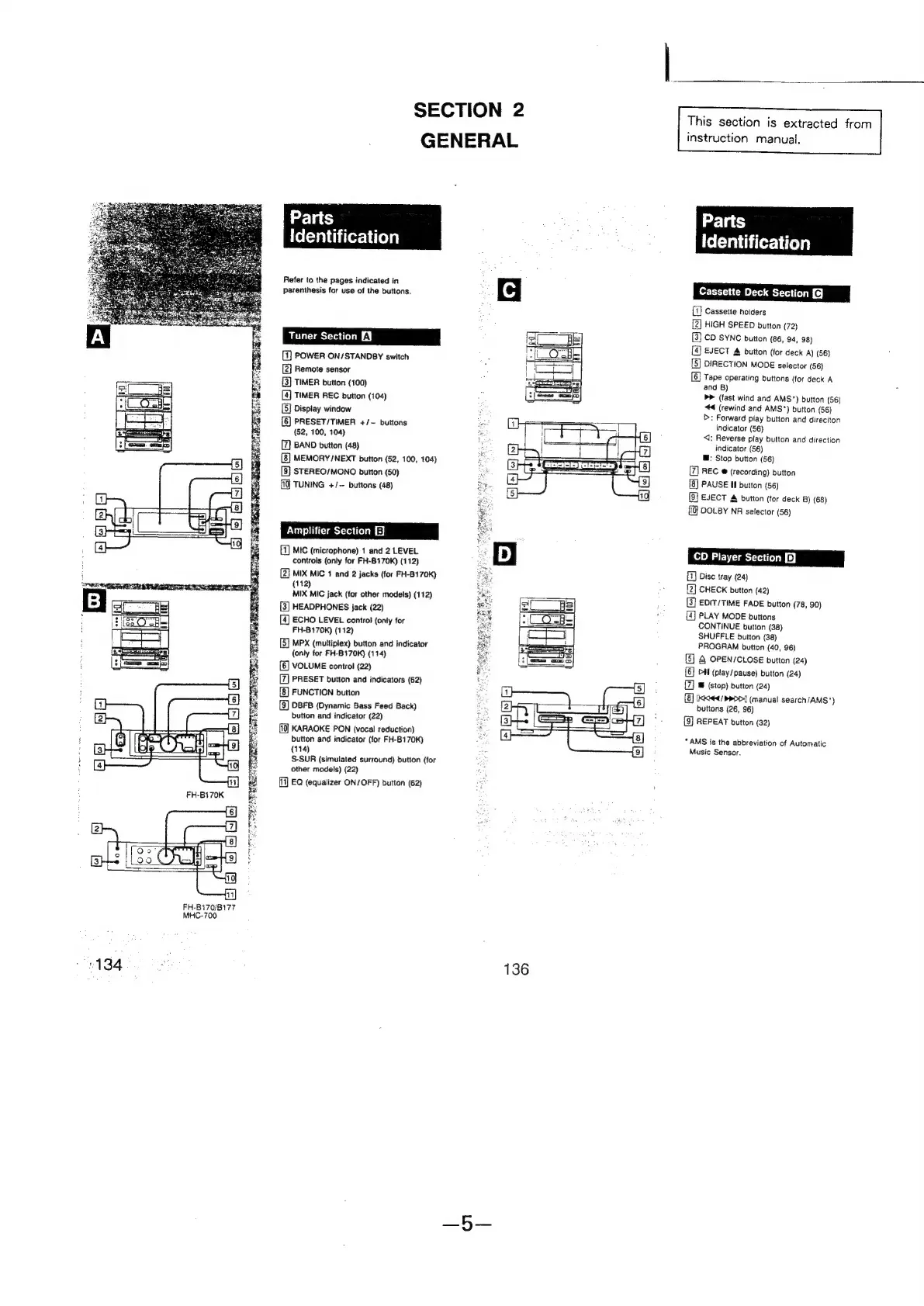

SECTION 2
GENERAL
Parts
Ke(evaliiiversiiley a
Refer to the pages indicated in
parenthesis for use of the buttons.
Tuner Section EY
(1) POWER ON/STANDBY switch
[2] Remote sensor
[3] TIMER button (100)
[4] TIMER REC button (104)
5} Display window
(6) PRESET/TIMER +/- buttons
{52, 100, 104)
[7] BAND button (48)
[8] MEMORY/NEXT button (52, 100, 104)
[5] STEREO/MONO button (50)
1] TUNING +/—- buttons (48)
Amplifier Section [J
{1] MIC (microphone) 1 and 2 LEVEL
controls (only for FH-B170K) (112)
(2] MIX MIC 1 and 2 jacks (for FH-B170K)
(142)
MIX MIC jack (for other models) (112)
(3) HEADPHONES jack (22)
[4] ECHO LEVEL control (onty for
FH-B170K) (112)
[&} MPX (multiplex) button and indicator
(only for FH-B170K) (114)
(6) VOLUME control (22)
[7] PRESET button and indicators (62)
[8] FUNCTION button
(8) DBFB (Dynamic Bass Feed Back)
button and indicator (22)
[f0] KARAOKE PON (vocal reduction)
button and indicator (for FH-B170K)
(114)
S-SUR (simulated surround) button (for
other models) (22)
fi) EQ (equalizer ON/OFF) button (62)
136
This section is extracted from
instruction manual,
Parts
To lTal titer) tte) }
Cassette Deck Section
1} Cassette holders
2) HIGH SPEED button (72)
[3} CD SYNC button (86, 94, 98)
EJECT button (for deck A) (56)
DIRECTION MODE selector (56)
Tape operating buttons (for deck A
and B)
b> (fast wind and AMS’) button (56)
‘#4 (rewind and AMS‘) button (56)
>: Forward play button and direciton
indicator (56)
<I: Reverse play button and direction
indicator (56)
@: Stop button (56)
[7] REC @ (recording) button
[8] PAUSE If button (56)
[9} EJECT A button (for deck 8) (68)
DOLBY NR selector (56)
CD Player Section [2)
{1) Disc tray (24)
[2] CHECK button (42)
[3] EDIT/TIME FADE button (78, 90)
[4] PLAY MODE buttons
CONTINUE button (38)
SHUFFLE button (38)
PROGRAM button (40, 96)
[5] & OPEN/CLOSE button (24)
{6} Dit (ptay/pause) button (24)
(stop) button (24)
IkkQ¢4/b>D>1 (manual search/AMS’)
buttons (26, 96)
[9] REPEAT button (32)
3S] (&] (=
"AMS is the abbreviation of Automatic
Music Sensor.
