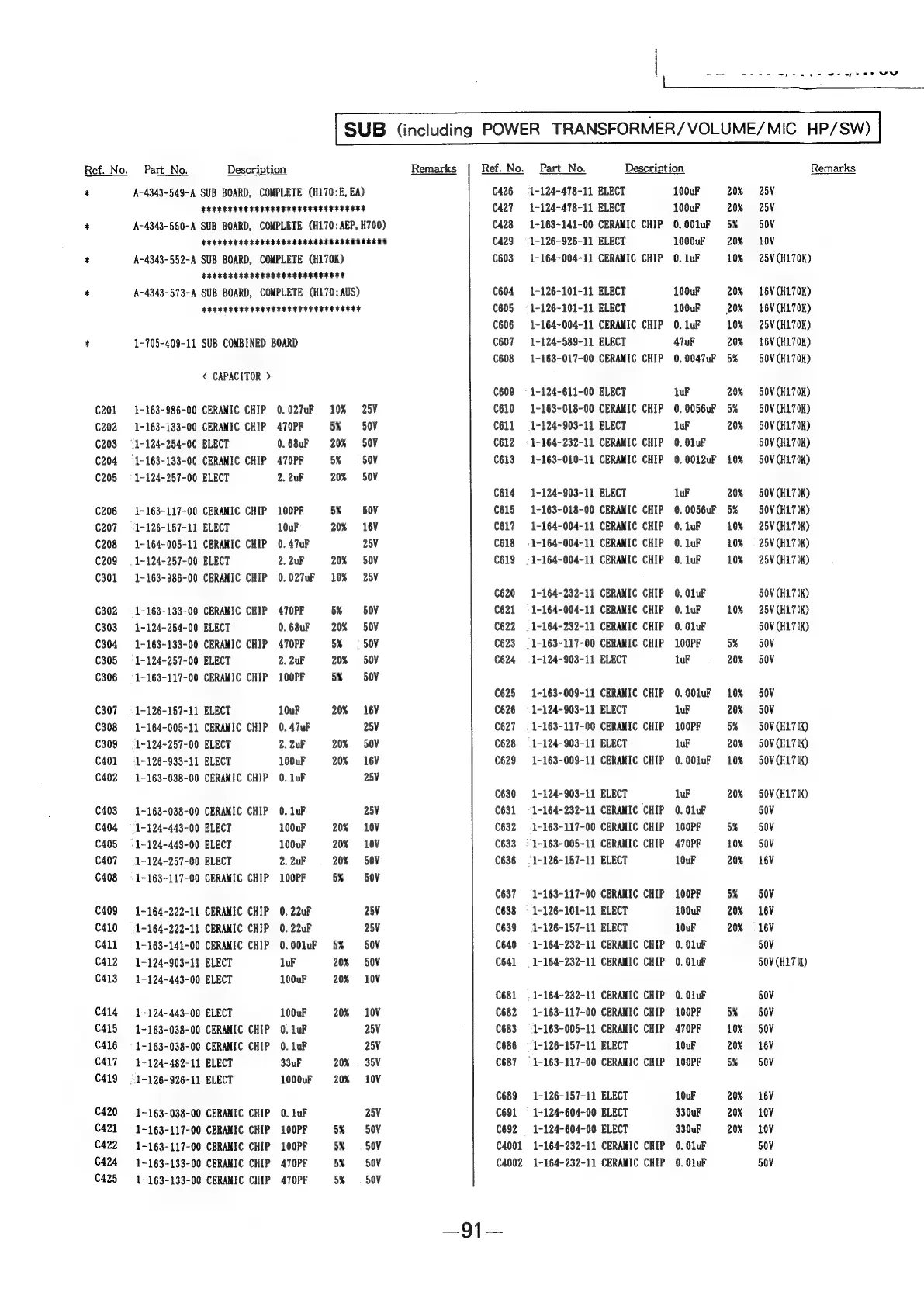

Sony HCD-H700 - SUB (including POWER TRANSFORMER;VOLUME;MIC HP;SW)

SUB (including POWER TRANSFORMER/VOLUME/MIC HP/SW)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
% A-4343-549-A SUB BOARD, COMPLETE (H170:E, EA) C426 «=: 1-124-478-11 ELECT 100uF 20% 25V
KRARREREE EA EEREES REESE SEER ES EERE (427 =-1-124-478-11 ELECT 100uF 20% 25V
* A-4343-550-A SUB BOARD, COMPLETE (H170: AEP, H700) C428 = =1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V
EERERERERESEEEES HERES ES EEE RE EER EE C429 =: 1-126-926-11 ELECT 1000uF 20% 10V
t A-4343-552-A SUB BOARD, COMPLETE (170K) C603 1-164-004-11 CERAMIC CHIP 0. 1uF 10% 25V(H170K)
FAEEEREEREEAEREEREERES ERSTE
t A-4343-573-A SUB BOARD, COMPLETE (H170: AUS) C604 =1-126-101-11 ELECT 100uF 20% 16V(H170K)
FERAEHEREERERER ERS EEE EEEEEEEEE C605 = 1-126-101-11 ELECT 100uF 20% 16V(H170K)
C606 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V(H170K)
* 1-705-409-11 SUB COMBINED BOARD C607 =1-124-589-11 ELECT 47uF 20% 16V(H170K)
C608 = 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V(H170K)
< CAPACITOR >
C609 = 1-124-611-00 ELECT luF 20% 50V(H170K)
C201 1-163-986-00 CERANIC CHIP 0.027uF 10% 25V C610 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V(H170K)
C202 1-163-133-00 CERAMIC CHIP 470PF 5% = 50V C611 =: 1-124-903-11 ELECT luF 20% 50V(H170K)
C203 =: 1-124-254-00 ELECT 0.68uF 20% 50V C612 = 1-164-232-11 CERAMIC CHIP 0. OluF 50V (H170K)
C204 =: 1-163-133-00 CERANIC CHIP 470PF 5% = 50V C613 = 1-163-010-11 CERAMIC CHIP 0.0012uF 10% 50V(H170K)
C205 = 1-124-257-00 ELECT 2. 2uF 20% 50V
C614 = 1-124-903-11 ELECT l1uF 20% 50V¥(H170K)
C206 1-163-117-00 CERANIC CHIP 100PF 5% 50V C615 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V(H170K)
C207 =: 1-126-157-11 ELECT 10uF 20% 16V C617: 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V(H170K)
C208 = =1-164-005-11 CERAMIC CHIP 0. 47uF 25V C618 = 1-164-004-11 CERAMIC CHIP 0. 1uF 10% = 25V(H170K)
C209 = 1-124-257-00 ELECT 2. 2uF 20% 50V C619 = 1-164-004-11 CERANIC CHIP 0. 1uF 10% 25V(H170K)
C301 1-163-986-00 CERANIC CHIP 0.027uF 10% 25V
C620 = 1-164-232-11 CERAMIC CHIP 0. OluF 50V (H17(K)
C302 = 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C621 = 1-164-004-11 CERAMIC CHIP 0. 1uF 10% 25¥(H17(K)
C303 = -1-124-254-00 ELECT 0.68uF 20% 50V C622 = 1-164-232-11 CERAMIC CHIP 0. OluF 50¥ (H17(K)
C304 = 1-163-133-00 CERANIC CHIP 470PF 5% = 50V C623 = 1-163-117-00 CERAMIC CHIP 100PF 5% —50V
C305 = 1-124-257-00 ELECT 2. 2uF 20% 50V C624 «= 1-124-903-11 ELECT luF 20% 50V
C306 = 1-163-117-00 CERAMIC CHIP 100PF 5% S0V
C625 =1-163-009-11 CERAMIC CHIP 0.00luF 10% 50V
C307 = 1-126-157-11 ELECT 10uF 20% 16V C626 = 1-124-903-11 ELECT luF 20% 50V
C308 = 1-164-005-11 CERAMIC CHIP 0. 47uF 25v C627 =: 1-163-117-00 CERAMIC CHIP 100PF 5% 50V(H17IK)
C309 =: 1-124-257-00 ELECT 2. 2uF 20% 50V C628 =. 1-124-903-11 ELECT luF 20% 50¥(H17(K)
C401 =: 1-126-933-11 ELECT 100uF 20% = 16V C629 1-163-009-11 CERAMIC CHIP 0.001luF 10% 50V(H17(K)
C402 1-163-038-00 CERAMIC CHIP 0. luF a5v
C630 =—-:1-124-903-11 ELECT luF 20% 50¥(H17 IK)
C403 = 1-163-038-00 CERAMIC CHIP 0. luF 25V C631 =: 1-164-232-11 CERAMIC CHIP 0. OluF 50V
C404 =: 1-124-443-00 ELECT 100uF 20% 10V C632 = 1-163-117-00 CERANIC CHIP 100PF 5% = 50V
C405 = 1-124-443-00 ELECT 100uF 20% 10V C633 =. 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C407 =: 1-124-257-00 ELECT 2. 2uF 20% 50V C636 = 1-126-157-11 ELECT 10uF 20% + 16V
C408 = 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
(637 =: 1-163-117-00 CERAMIC CHIP 100PF 5% 5 0V
C409 = 1-164-222-11 CERAMIC CHIP 0. 22uF 25v C638 =: 1-126-101-11 ELECT 100uF 20% = 16V
C410 «=: 1-164-222-11 CERAMIC CHIP 0. 22uF 25V C639 =: 1-126-157-11 ELECT 1ouF 20% = 16V
C411 = 1-163-141-00 CERAMIC CHIP 0.001uF 5% 50V C640 = 1-164-232-11 CERAMIC CHIP 0. OluF 50V
C412 = 1-124-903-11 ELECT luF 20% 50¥ C641 = 1-164-232-11 CERAMIC CHIP 0. OluF 50V (HIT KK)
C413: 1-124-443-00 ELECT 100uF 20% 10V
C681 = 1-164~232-11 CERAMIC CHIP 0. 01uF 50V
C4i4_ 1-124-443-00 ELECT 100uF 20% 10V C682 = 1-163-117-00 CERANIC CHIP 100PF 5% = -50V
C415 —1-163-038-00 CERAMIC CHIP 0. luF a5v C683 =: 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C416 = 1-163-038-00 CERANIC CHIP 0. uF 25V C686 =. 1-126-157-11 ELECT 10uF 20% 16V
C417: 1-124-482-11 ELECT 33uF 20% . 35V C687 = 1-163-117-00 CERAMIC CHIP 100PF 5% = 5 0V
C419 =: 1-126-926-11 ELECT 1000uF 20% 10V
C689 = 1-126-157-11 ELECT 10uF 20% 16V
C420 1-163-038-00 CERANIC CHIP 0. LuF 25V C691 = 1-124-604-00 ELECT 330uF 20% =10V
C421 1~163-117-00 CERAMIC CHIP 100PF 5% = «5 0V C692 = 1-124-604-00 ELECT 330uF 20% 10V
C422 1-163-117-00 CERANIC CHIP 100PF 5% = 50¥ C4001 1-164-232-11 CERAMIC CHIP 0. O0luF 50V
C424 1~163-133-00 CERANIC CHIP 470PF 5% 50V C4002 1-164-232-11 CERANIC CHIP 0. OluF 50V
C425 = 1-163-133-00 CERANIC CHIP 470PF 5% = -S0V
