Sony HCD-H700 - 7-3. MD CHASSIS SECTION

Page 73.

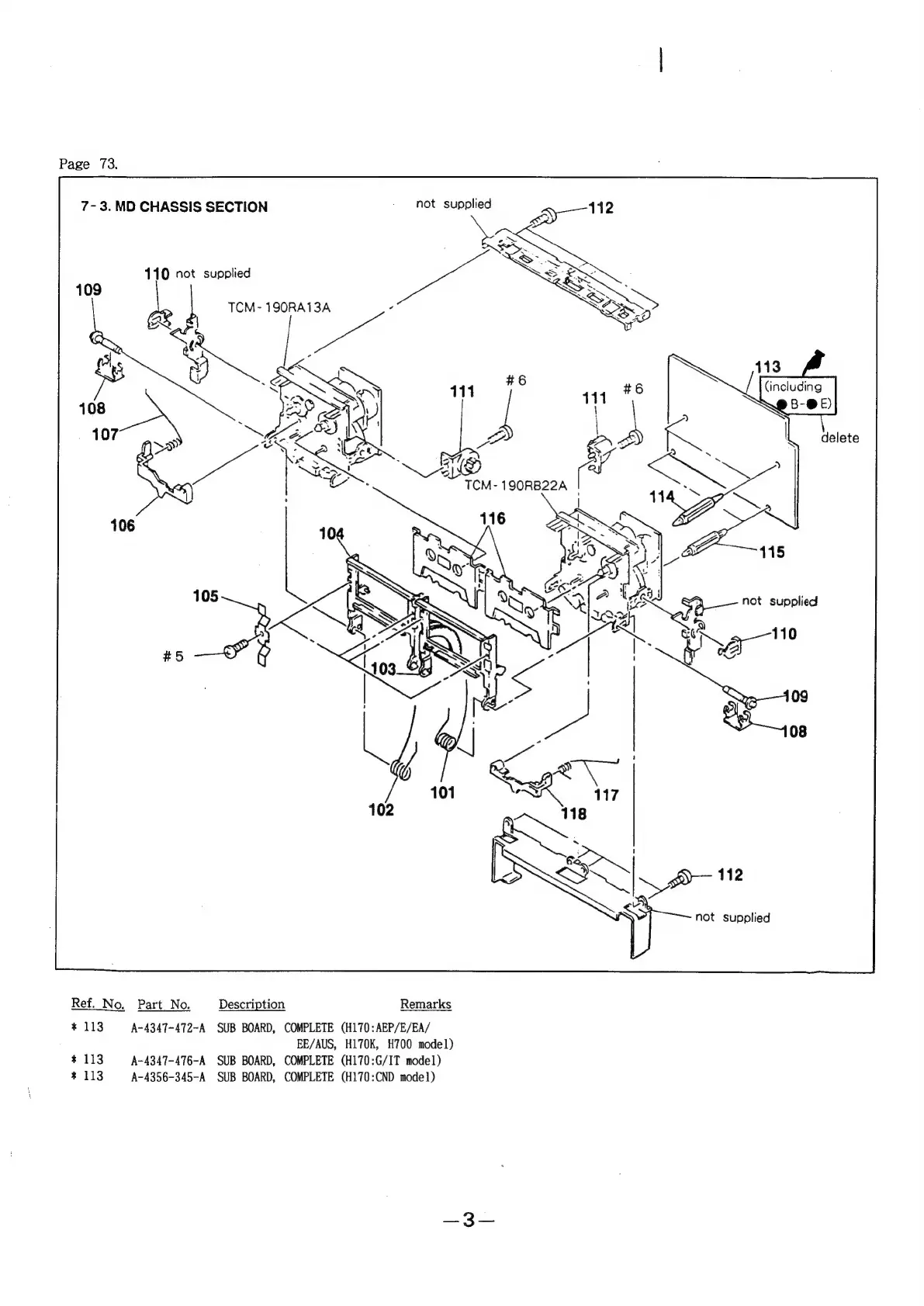

7- 3. MD CHASSIS SECTION not supplied 112
a
110 not supplied
109
TCM- 190RA13A
not supplied
Ref. No. Part No. Description Remarks
* 113 A-4347-472-A SUB BOARD, COMPLETE (H170:AEP/E/EA/
EE/AUS, H170K, H700 model)
* 113 A-4347-476-A SUB BOARD, COMPLETE (H170:G/IT model)
* 113 A-4356-345-A SUB BOARD, COMPLETE (H170:CND model)
