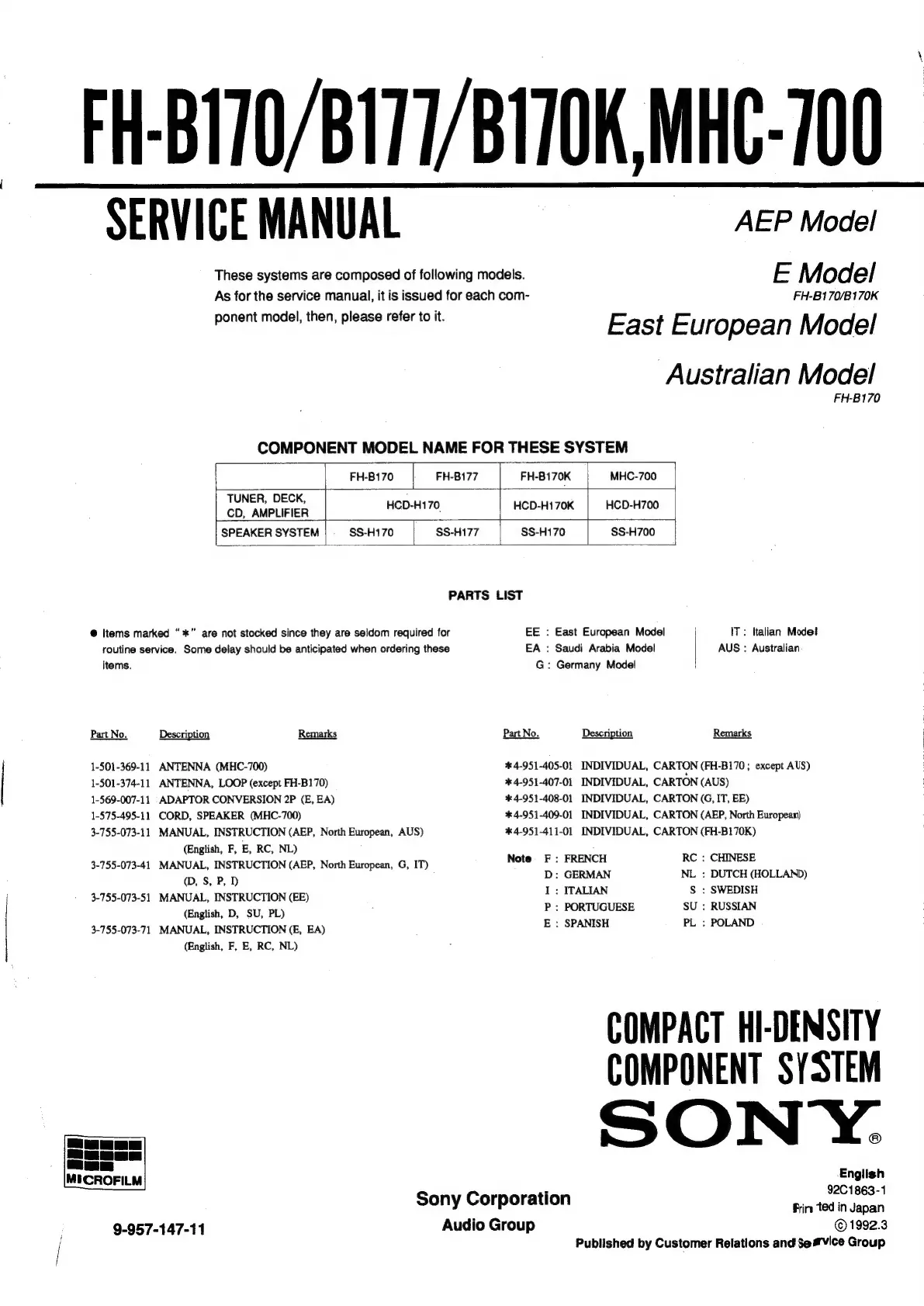

Sony HCD-H700 - SERVICE MANUAL; PARTS LIST

\
~ FH-BI70/B177/B170K,MHC-700°
SERVICE
MANUAL
AEP
Model
These systems are composed of following models. E Model
As for the service manual, it is issued for each com- FH-B170/B170K
ponent
model,
then,
please
refer
to
it.
E,
ast
E
uropean
Model
Australian Model
FH-B170
COMPONENT MODEL NAME FOR THESE SYSTEM
FH-B170 FH-B177 FH-B170K | MHC-700
TUNER, DECK,
CD, AMPLIFIER HCD-H170 HCD-H170K | HCD-H700
SPEAKER SYSTEM SS-H170 SS-H177 SS-H170 | SS-H700
PARTS LIST
@ Items marked “*” are not stocked since they are seldom required for EE : East European Model | IT: Italian Modet
routine service. Some delay should be anticipated when ordering these EA : Saudi Arabia Model AUS : Australian
items. G: Germany Model
Part No. Description Remarks Part No. Description Remarks
1-501-369-11 ANTENNA (MHC-700) % 4-951-405-01 INDIVIDUAL, CARTON (FH-B170; except AUS)
1-501-374-11_ ANTENNA, LOOP (except FH-B170) % 4-951-407-01 INDIVIDUAL, CARTON (AUS)
1-569-007-11 1 ADAPTOR CONVERSION 2P (E, EA) * 4-951-408-01 INDIVIDUAL, CARTON (G, IT, EE)
1-575-495-11 CORD, SPEAKER (MHC-700) * 4-951-409-01 INDIVIDUAL, CARTON (AEP, North European)
3-755-073-11 MANUAL, INSTRUCTION (AEP, North European, AUS) * 4-951-411-01 INDIVIDUAL, CARTON (FH-B170K)
(English, F, E, RC, NL)
3-755-073-41 MANUAL, INSTRUCTION (AEP, North European, G, IT) a I St Re CHINESE
(D, S, P, D D: GERMAN NL : DUTCH (HOLLAND)
3-755-073-51 MANUAL, INSTRUCTION (FE) Lea Sees
(English, D, SU, PL) P : PORTUGUESE SU : RUSSIAN
E : SPANISH PL : POLAND
3-755-073-71 MANUAL, INSTRUCTION (E, EA)
(English, F, E, RC, NL)
