Sony HCD-M60D - SMPS Board Safety Precautions; SMPS Board Capacitor Discharge (M60 D;M80 D); SMPS Board Capacitor Discharge (M40 D)

HCD-M40D/M60D/M80D
9
R
800 :/5 W
R
800 :/5 W
800 :/5 W
R
C7701
C7217
C7606

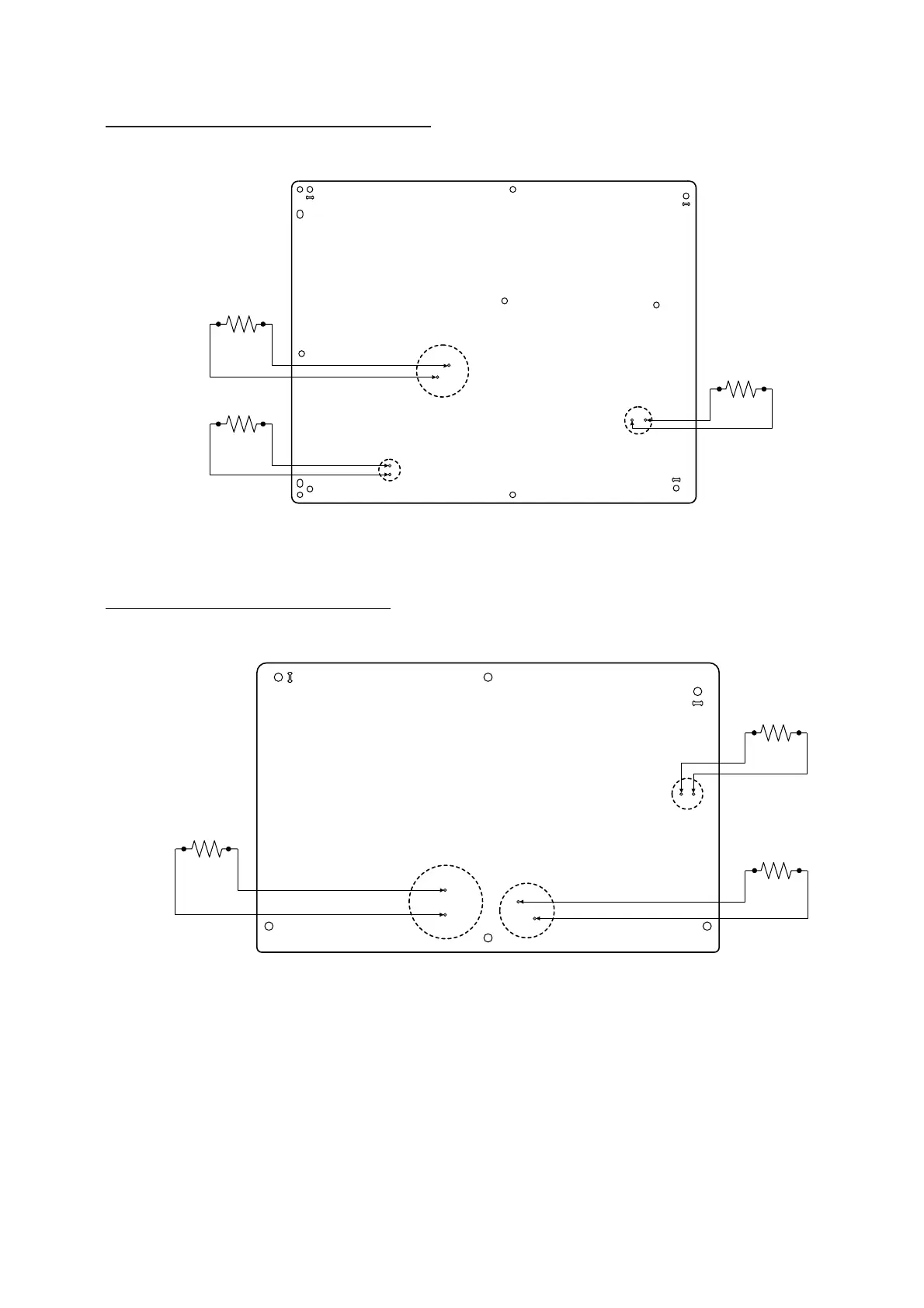

SMPS Board (Conductor side view) (HCD-M60D/M80D)
In checking the SMPS board, make 3 capacitors discharge of C7606, C7217 and C7701 for eletrical shock prevention.
SMPS Board (Conductor side view) (HCD-M40D)
In checking the SMPS board, make 3 capacitors discharge of C6301, C6302 and C6503 for eletrical shock prevention.
800 :/5 W
R
C6301
C6302
C6503
R
800 :/5 W
800 :/5 W
R
