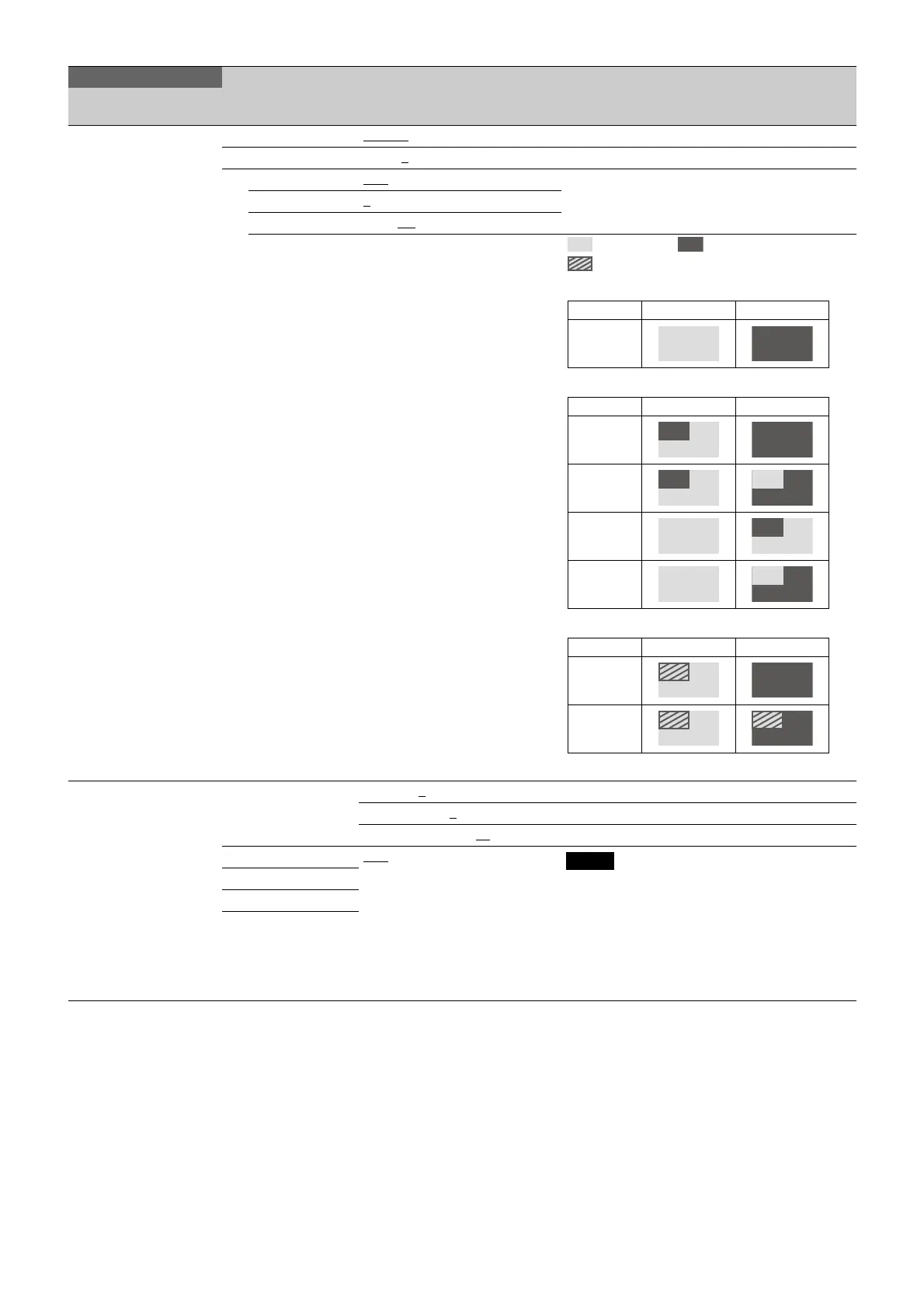

Sony HDC3170 - Page 36

36
<VF OUT>
12 (U01)
VF OUT COLOR
, Y, R, G, B
CHARACTER LEVEL 1 to 5, 4
PinP OFF, RETURN, HD PROMPTER Only OFF and RETURN displayed on the
HDC3170.
POSITION 1
, 2, 3, 4
SIZE 1/2.5, 1/3
, 1/4
MODE PinP OFF: ---
PinP RETURN: 1, 2, 3, 4
PinP HD PROMPTER: 1, 2
: Main picture : Return picture
: HD Prompter picture
Cannot be used during stand-alone operation.
<SWITCH ASSIGN1>
13 (U09)
GAIN L: –6, –3, 0
, 3, 6, 9, 12 dB
M: –6, –3, 0, 3, 6
, 9, 12 dB
H: –6, –3, 0, 3, 6, 9, 12
dB
INSIDE A OFF
, RETURN1 SW, RETURN2
SW, ENG, PROD, VF DETAIL,
5600K, FAN MAX, D.EXTENDER,
VF ASSIGN SW1, VF ASSIGN
SW2, SPIRIT LEVEL INDICATOR,
FOCUS ASSIST INDICATOR,
PinP, RET1 SW TOGGLE, RET2
SW TOGGLE, RET3 SW
TOGGLE, CURSOR ALL OFF,
FLAG, AWB
Note
When you turn D.EXTENDER ON or OFF, noise
may be generated. This is not a malfunction.
D.EXTENDER does not operate when a 2x speed
motion format is selected.
INSIDE B
INSIDE C
INSIDE D
OPERATION
