Sony HDC3170 - System Configuration; Connection Examples (Optical Fiber & Digital Triax)

4
System Configuration
Note
Production of some of the peripherals and related devices shown in the figures has been discontinued. For advice on choosing
devices, please contact your Sony dealer or a Sony sales representative.

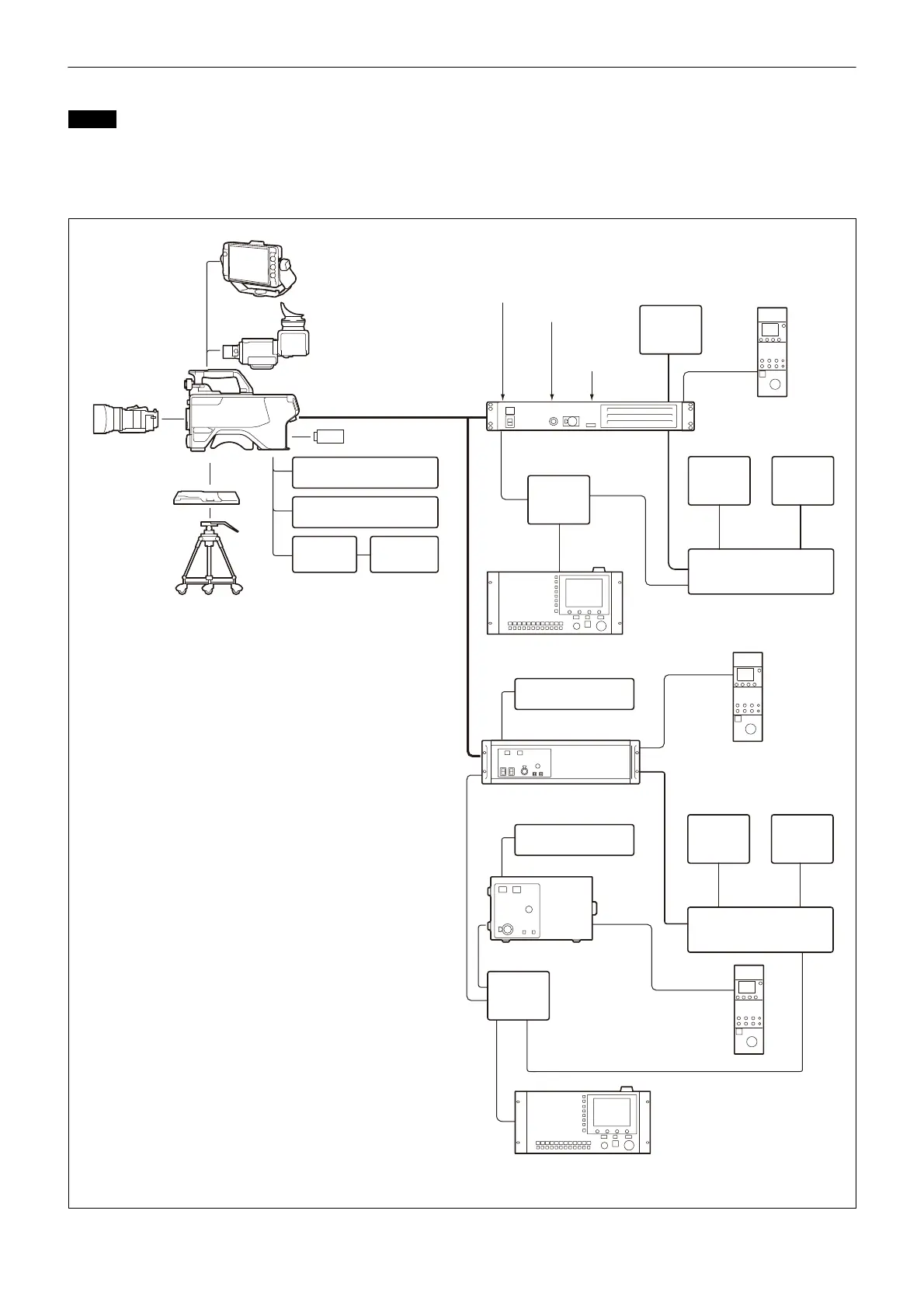

Connection example (optical fiber transmission)
Lens
(for ENG/EFP)
VCT-14 Tripod
Attachment
Tripod
HDVF-EL75/L750/L770
Viewfinder
HDC3100
Optical fiber cable
a)
CAC-6
Return Video Selector
Intercom headset
CAC-12
Microphone
Holder
Microphone
HDVF-EL20
HDVF-EL30
Viewfinder
HDCU3100, HDCU3170
c)
Camera Control Unit
b)
a) Signal transfer up to a maximum of 2 km is possible.
However, the actual transfer distance may vary
depending on the system configuration of the
cameras and the type of optical fiber cables used.
b) Set the signal transmission rate for the camera to
connect using the following menu item on the
camera control unit.
SYSTEM CONFIG t <CAMERA I/F> t
FIBER TRANSMIT RATE
For details, refer to the operation manual of the
camera control unit.
c) To use the HDCU3170, install the HKCU-FB30
Optical Fiber Connector Kit.
USB drive
RCP-1500/1000 series
Remote Control Panel
MSU-1000 series
Master Setup Unit
Sync signal input
Return video input
Intercom
microphone
input
Video
monitor
Waveform
monitor
Video router
2K video
monitor
BNC
CCA-5
LAN cable
LAN cable
Hub
Hub
HKCU1001/1003/
2007/2040
HDCU2000
Camera Control Unit
HDCU2500
Camera Control Unit
RCP-1500/1000 series
Remote Control Panel
Video
monitor
Waveform
monitor
Video router
CCA-5
LAN cable
RCP-1500/1000
series
Remote Control
Panel
CCA-5
BNC
HKCU1001/1003/
2007/2040
LAN cable
MSU-1000 series
Master Setup Unit
