Sony HDR-PJ10 Service Manual

A6CCCE74558B3E905AD2CEF677F08944A4F35D719FFF538EDA3BBE0D0B9DF46BB1D7EBFA51D2D3C1
HDR-CX360/CX360E/CX360V/CX360VE/PJ10/PJ10E/PJ20/PJ30/PJ30E/PJ30V/PJ30VE/PJ40V_L2
2-12
451 A-1809-281-A CABINET (C (PJ30)) ASSY (BK), P
(PJ30/PJ30E/PJ30V/PJ30VE)
451 A-1809-282-A CABINET (C (PJ20)) ASSY (BK), P (PJ20)
451 A-1809-283-A CABINET (C (PJ10)) ASSY (BK), P (PJ10/PJ10E)
451 A-1809-284-A CABINET (C (PJ40)) ASSY (SL), P (PJ40V(SILVER))
451 A-1809-285-A CABINET (C (PJ40)) ASSY (BR), P (PJ40V(BROWN))
452 4-272-357-01 GASKET (P (389))
453 A-1808-076-A GP392ASSY
(J30V/PJ30VE/PJ40V)
454 1-838-558-11 CABLE, FLEXIBLE FLAT (FFC-254)
(PJ30V/PJ30VE/PJ40V)
455 4-272-350-01 HEAT SINK, P
456 4-272-354-01 SHEET, P RADIATION
Ref. No. Part No. Description
Ref. No. Part No. Description
457 4-272-356-01 INSULATING SHEET (P (389))
458 4-272-358-01 CUSHION, P
459 4-271-668-01 CUSHION (M)
460 A-1810-716-A FP-1319 FLEXIBLE BOARD, COMPLETE
461 A-1802-781-A FLT3 0.2 DLP PICO OPTICAL ENG (Note)
462 A-1810-708-A PJ-104 BOARD, COMPLETE
463 4-281-443-01 TAPE (GP)
#2 2-635-562-31 TITE (UB TITE) 1.4
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#11 3-078-890-11 SCREW, TAPPING
#12 3-080-204-21 SCREW, TAPPING, P2
#30 3-086-156-11 SCREW B1.2

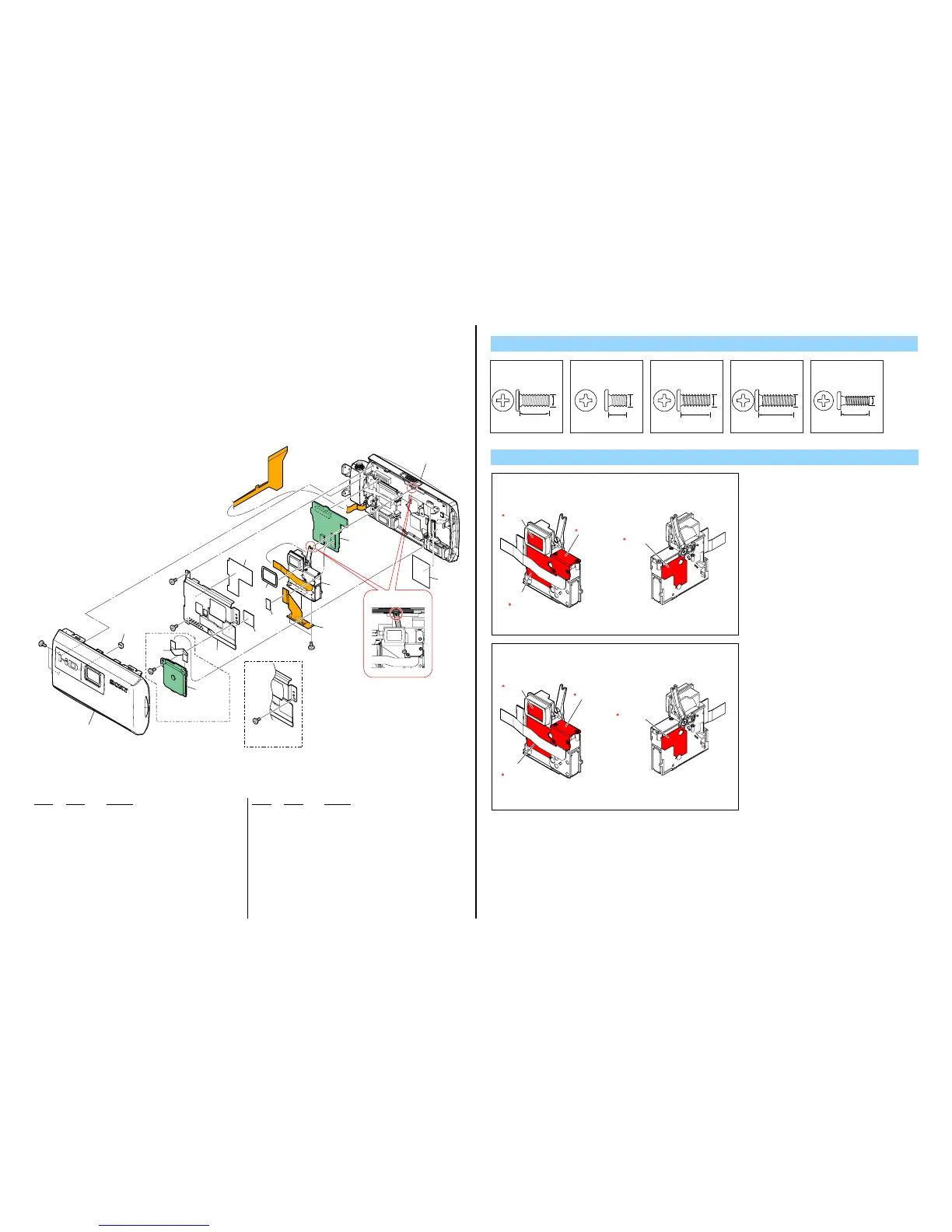

2-1-10. LCD SECTION-1
(PJ10/PJ10E/PJ20/PJ30/PJ30E/PJ30V/PJ30VE/PJ40V)
Refer to page 2-14 about CX360/CX360E/CX360V/CX360VE
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
Note
PJ-104
PJ30V/PJ30VE/PJ40V
PJ10/PJ10E/
PJ20/PJ30E
#12
#11
#3
#3
#30
#2
451
453
454
455
456
452
459
458
457
460
461
(Note)
462
463
LCD Section-2
(See page 2-13)
Adjust the position.
Do not hold the following part.
Lens
Very week
Copper Plate
Very week
Sheet
Very week
Sheet
Very week
The projector unit (copper plate in particular) becomes hot after it is used.
When replacing a part of the projector unit, wait until it is cooled down.
Note :
ࡊࡠࠫࠚࠢ࠲࡯ࠍ૶↪ߒߚᓟߪ㧘ࡊࡠࠫࠚࠢ࠲࡯࡙࠾࠶࠻߇ᾲߊߥߞߡ޿߹ߔޕ
․ߦ㌃᧼ߩㇱಽߪ㜞󰶘ߦߥࠅ߹ߔޕ
ㇱຠࠍ឵ߔࠆᤨߪ㧘󰶘ᐲ߇߇ߞߡ߆ࠄ૞ᬺࠍⴕߥߞߡߊߛߐ޿ޕ
ᜬߞߡߪ޿ߌߥ޿ㇱಽ
࡟ࡦ࠭
˴㕖Ᏹߦᒙ޿ㇱಽ
㌃᧼
˴㕖Ᏹߦᒙ޿ㇱಽ
ࠪ࡯࠻
˴㕖Ᏹߦᒙ޿ㇱಽ
ࠪ࡯࠻
˴㕖Ᏹߦᒙ޿ㇱಽ
Note :
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
#30: M1.2 X 3.5 (Tapping)
(White)
3-086-156-11
3.5
1.2
