Sony HDVF-C30W - Exploded Views

2-2
HDVF-C30W

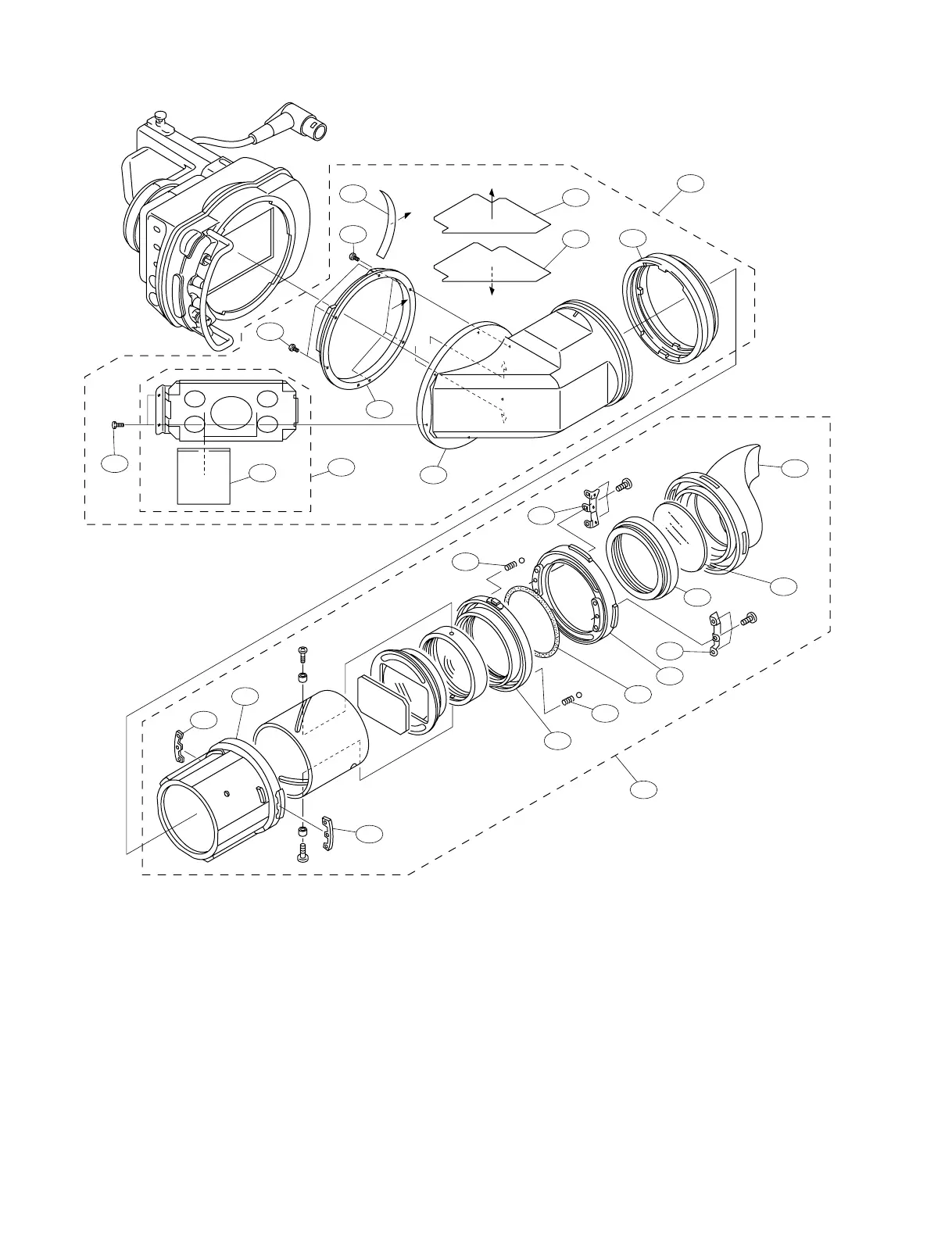

VF Lens Unit and Elbow Assembly
2-2. Exploded Views
a
a
b
b
c
c
a
11
17
4
17
17
21
19
20
1
10
18
3
9
8
14
6
12
7
5
15
13
13
16
7
6
2
Precision
P2 x 10
Ball
(2.5mm)
Ball
(2.5mm)
Precision
P2 x 10
No. Part No. SP Description
1 A-8279-814-D s ASSY, ELBOW
2 A-8319-943-A s EYE CUP (RP)
3 X-3608-589-2 s ASSY, VF TUBE
4 X-3608-590-1 s ASSY, MIRROR
5 1-758-921-11 s LENS UNIT, VF
6 3-176-414-01 o RETAINER, RING
7 3-573-150-00 s SPRING, COMPRESSION
8 3-623-709-01 o MC HOLDER
9 3-623-710-01 o MC, GLASS
10 3-692-136-03 o FIXED RING
11 3-723-073-01 o CUSHION, MIRROR
12 3-726-904-01 o RING (MT), O (CR)
13 3-742-038-01 o NUT (2), PLATE (SST)
14 3-742-052-03 o HOLDER, EYE CUP
15 3-742-053-02 o RING
No. Part No. SP Description
16 3-742-060-01 o HOLDER, RING
17 3-776-622-01 s SCREW(M2), TAPPING
18 3-776-637-01 s RING(TUBE), BAYONET
19 3-789-424-01 s SHEET(UPPER), ANTI-GLARE
20 3-789-425-01 s SHEET(LOWER), ANTI-GLARE
21 3-789-426-01 s SHEET(RING), ANTI-GLARE
7-627-553-78 s SCREW, PRECISION +P 2X10
7-671-112-11 s STEEL BALL (2.5MM)
