2-4
HDVF-C30W
203
222
205
201
214
206
221
204
215
209
209
218
219
208
209
207
210
216
202
212
217
211
213
220
209
Precision
P2.6 x 5
Precision
P2 x 3
Set-screw, hex
3 x 5
Precision
P2 x 3
Small
W2.6
PS2 x 4
B3 x 8
B3 x 8
B3 x 8
B2 x 5
B2 x 5
B3 x 8
K3 x 6
K3 x 6
Bolt, hex socket
2.6 x 6
No. Part No. SP Description
201 A-8346-392-A s ARM ASSY, VF
202 A-8346-397-A s MOUNTED CIRCUIT BOARD, SW-1092
203 1-469-969-11 s CLAMP, FERRITE
204 1-827-086-11 s CORD, CONNECTION (VF)
205 2-277-457-00 s KNOB, STOPPER
206 2-277-466-01 s SPRING, COMPRESSION (STEEL)
207 2-300-629-00 s PLATE, BLIND
208 3-545-657-11 s BUSHING(BLACK) (PLA)
209 3-603-733-01 s HOLDER, SCREW
210 3-676-244-00 s COVER, SWITCH
211 3-679-693-01 o BASE, SLIDE
212 3-679-694-01 o COVER, SLIDE
213 3-679-695-01 o COVER, TALLY
214 3-710-008-02 s HOUSING, STOPPER
215 3-719-381-21 s SCREW +P M2X6 (EP-FE/ZNBK)LOCK
216 3-729-007-01 o PLATE, ORNAMENTAL, TOGGLE SWITCH
No. Part No. SP Description
217 3-729-061-01 s SCREW (M2X4.5) (TYPE 1) (STEEL)
218 3-776-614-01 s CAP
219 A-8279-817-A s ASSY, REAR CHASSIS
220 3-776-625-01 s RUBBER, RADIATION
221 3-776-586-01 s CUSHION (CABLE), DROP PROTECTION
222 3-776-797-01 s GUARD, CABLE
7-621-772-20 s SCREW +B 2X5
7-627-553-38 s SCREW, PRECISION +P 2X3
7-627-556-58 s SCREW, PRECISION +P2.6X5
7-628-253-00 s SCREW +PS 2X4
7-682-247-09 s SCREW +K 3X6
7-682-548-09 s SCREW +B 3X8
7-683-239-08 s SET-SCREW, HEX 3X5 ST
7-683-412-05 s BOLT, HEXAGON SOCKET 2.6X6 (ST)
7-688-002-02 s WASHER (2.6)

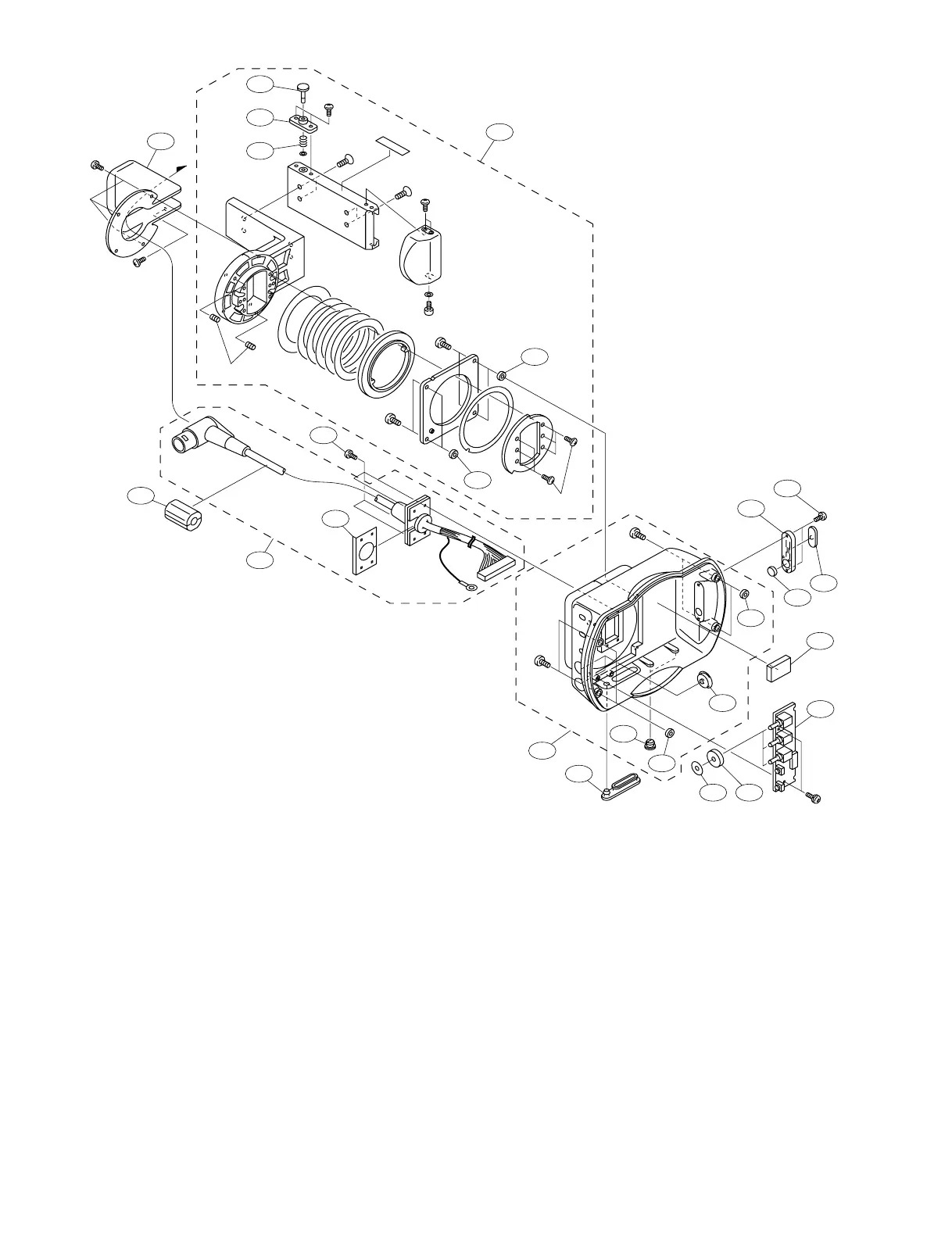

Rear Chassis
