Sony HKCU-FP2 Service Manual

Ref.No. Name Color Description Normal
state
D303 TX FAULT Red Lights when an error is detected in the optical out-
put.
Off
D304 TX DISABLE Red Lights when the optical output is invalid. Off
D306 RX-LOS Red Lights when no optical signal is received. Off
D400 CONF DONE Red Lights during download of FPGA (IC100) data on
the SDP-19 board or when a configuration error
occurs.
Off

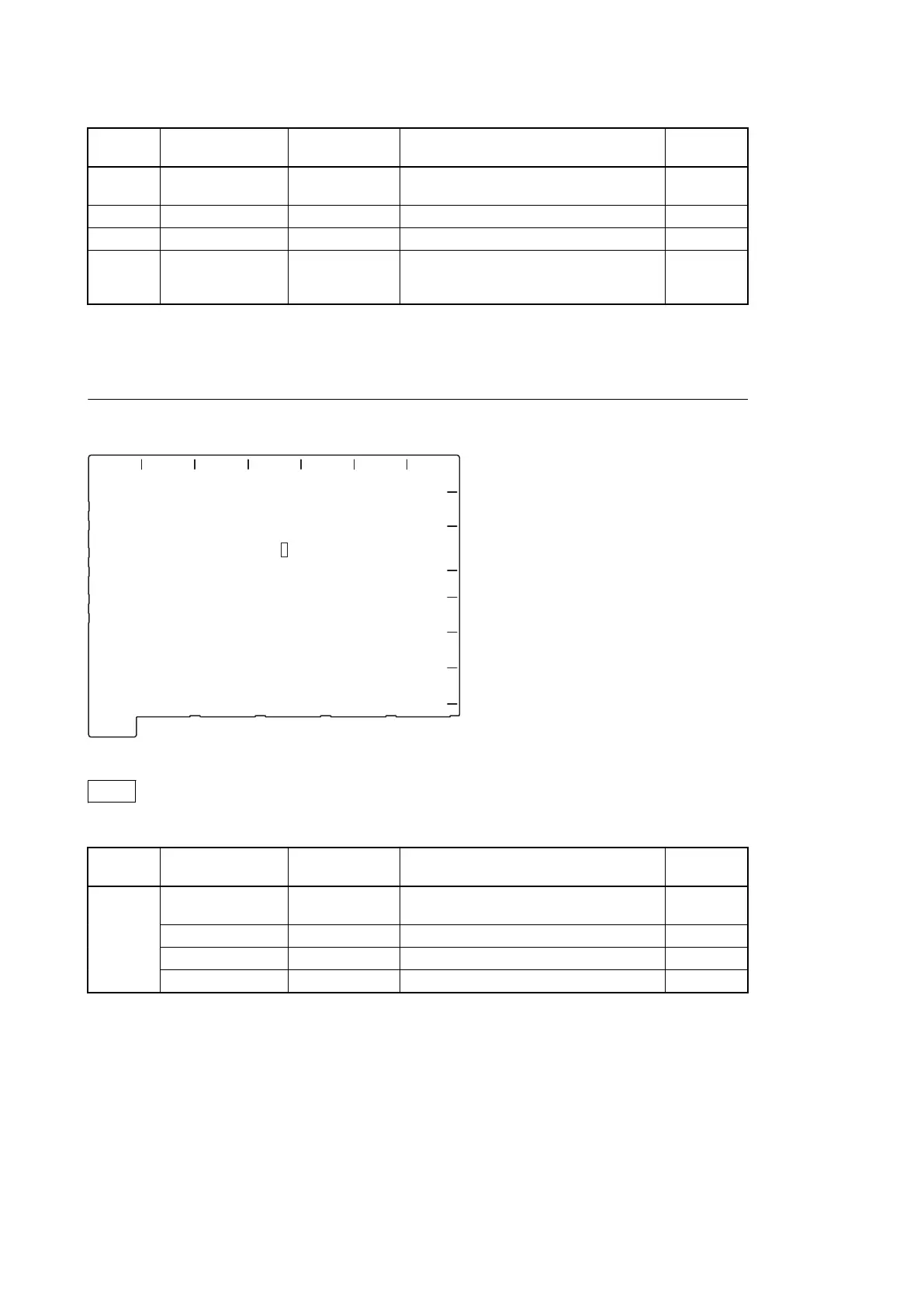

1-9-2. Functions of Onboard Switches
DPR-361 Board
DPR-361 board (Side A)
A B C D E F G
1
2
3
4
5
6
7
S100
8
Note
Do not change the settings of unused switches.
Ref.No. Name Bit Description Factory
setting
S100 VerUP 1 Used to enable software update using a memory
stick.
OFF
PLD VerUP 2 Used to enable PLD update using a memory stick. OFF
NORMAL/DEBUG 3 Not used OFF
NORMAL/DEBUG 4 Not used OFF
HSCU300RF/HSCU300R
1-15
