15
US

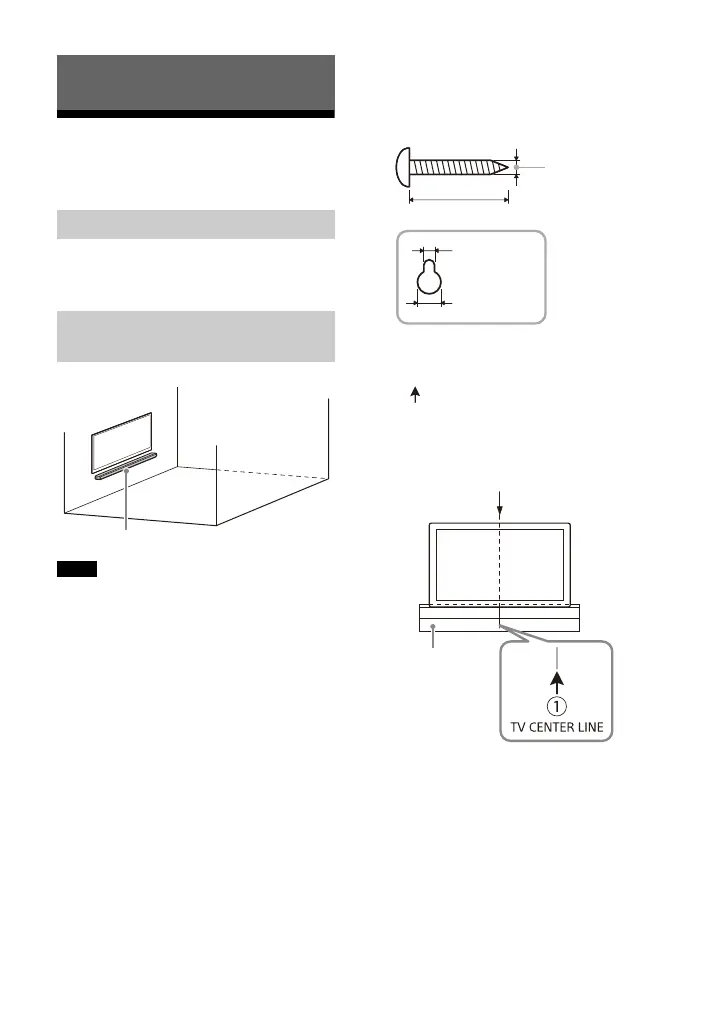

Installing the Speaker
System
For the installation, refer to Startup
Guide (separate document).
• Prepare screws (not supplied) that are
suitable for the wall material and stability.
Depending on the wall material, the wall
may be damaged.
• Fasten the screws securely in the wall
beam.
• Hang the bar speaker horizontally on the
reinforced wall.
• Have the installation done by a Sony
dealer or licensed contractor and pay
special attention to safety during the
installation.
• Sony shall not be held responsible for
accidents or damage caused by improper
installation, insufficient wall stability,
improper screw installation, natural
disasters, etc.
• Two or more persons are required to hang
the bar speaker for safety.
1 Prepare two screws (not supplied)
that are suitable for the wall
mount holes on the rear of the bar
speaker.
2 Align the vertical line above the
“ TV CENTER LINE” printed on
the WALL MOUNT TEMPLATE
(supplied) with the center of the
width of your TV.
Setting Up
Installing the Bar Speaker
Mounting the Bar Speaker on
a Wall
Notes
Hole on the rear of the bar speaker
4 mm (3/16 in)
More than 30 mm (1 3/16 in)
5 mm
(7/32 in)
10 mm
(13/32 in)
Center of the TV
WALL MOUNT
TEMPLATE
To Next Page
