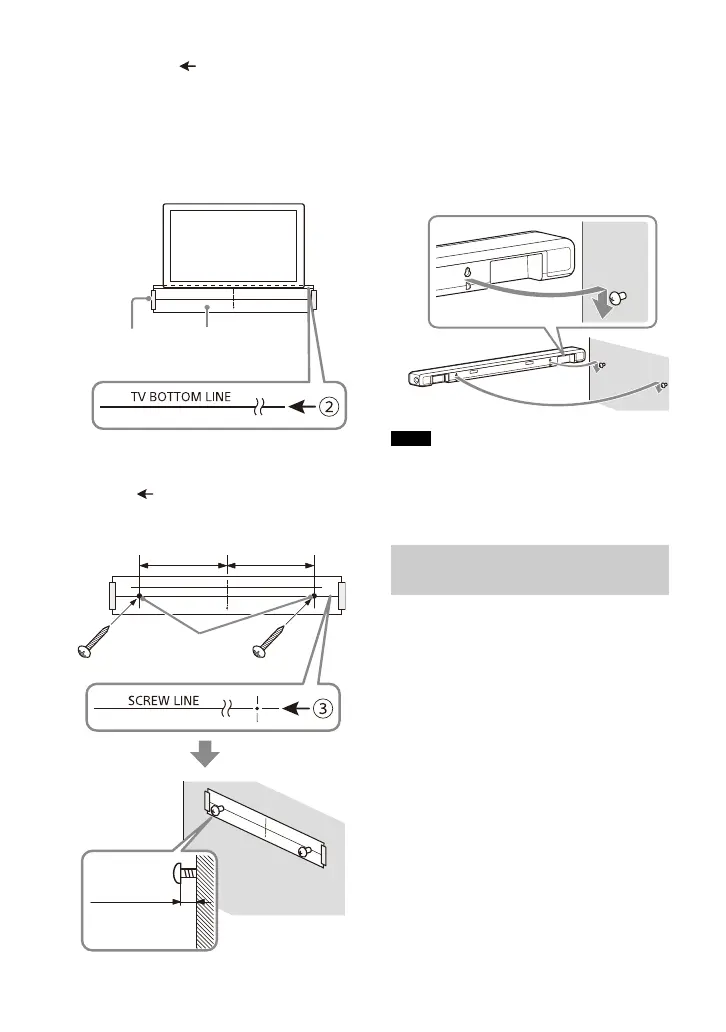

3 Align the “  TV BOTTOM LINE”
printed on the WALL MOUNT
TEMPLATE with the bottom of your
TV, then adhere the WALL MOUNT
TEMPLATE on the wall with a
commercially available adhesive
tape, etc.
4 Fasten the screws prepared in step
1 securely into the screw marks on
the “  SCREW LINE” printed on
the WALL MOUNT TEMPLATE.
5 Remove the WALL MOUNT
TEMPLATE.
6 Hang the bar speaker on the
screws.
Align the holes of the rear of the bar
speaker with the screws, then hang
the bar speaker on the two screws.
• When adhering the WALL MOUNT
TEMPLATE on the wall, smooth it out fully.
• Install the bar speaker apart from the TV
by 70 mm (2 7/8 in) or more.
Refer to the operating instructions of the
optional speakers.
WALL MOUNT
TEMPLATE
Adhesive
tape, etc.
Marks
270 mm
(10 3/4 in)
10 mm to
11 mm
Screws
270 mm
(10 3/4 in)
(approx.
7/16 in)
Notes
Installing the Optional
Speakers
