Installing the system

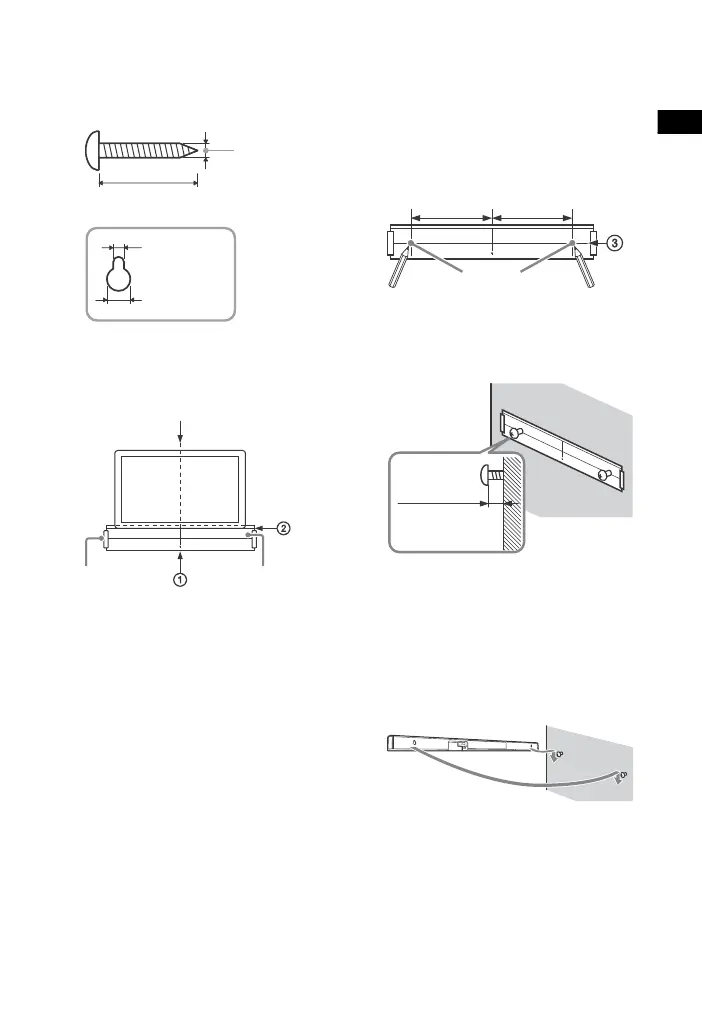

1 Prepare screws (not supplied) that
are suitable for the holes on the
rear of the Bar Speaker.
2 Stick the WALL MOUNT TEMPLATE
(supplied) on a wall.
1 Align TV CENTER LINE () of the
WALL MOUNT TEMPLATE with the
center line of your TV.
2 Align TV BOTTOM LINE () of the
WALL MOUNT TEMPLATE with the
bottom of your TV.
3 Stick the WALL MOUNT TEMPLATE on
the wall using a commercially
available adhesive tape, etc.
3 Mark the screw positions on the
SCREW LINE () of the WALL
MOUNT TEMPLATE.
Measure the distance described
below with a scale, then mark using
a pencil, etc.
4 Fasten the screws into the marks.
The screws should protrude by
7.5 mm to 8.5 mm.
5 Remove the wall mount template.
6 Hang the Bar Speaker on the
screws.
Align the holes on the rear of the
Bar Speaker with the screws, then
hang the Bar Speaker on the two
screws.
4 mm
More than 30 mm
5 mm
Hole on the rear of the Bar Speaker
10 mm
Center of the TV
Adhesive tape,
etc.
WALL MOUNT
TEMPLATE
365 mm
365 mm
Screw position
7.5 mm to
8.5 mm
