Getting Started

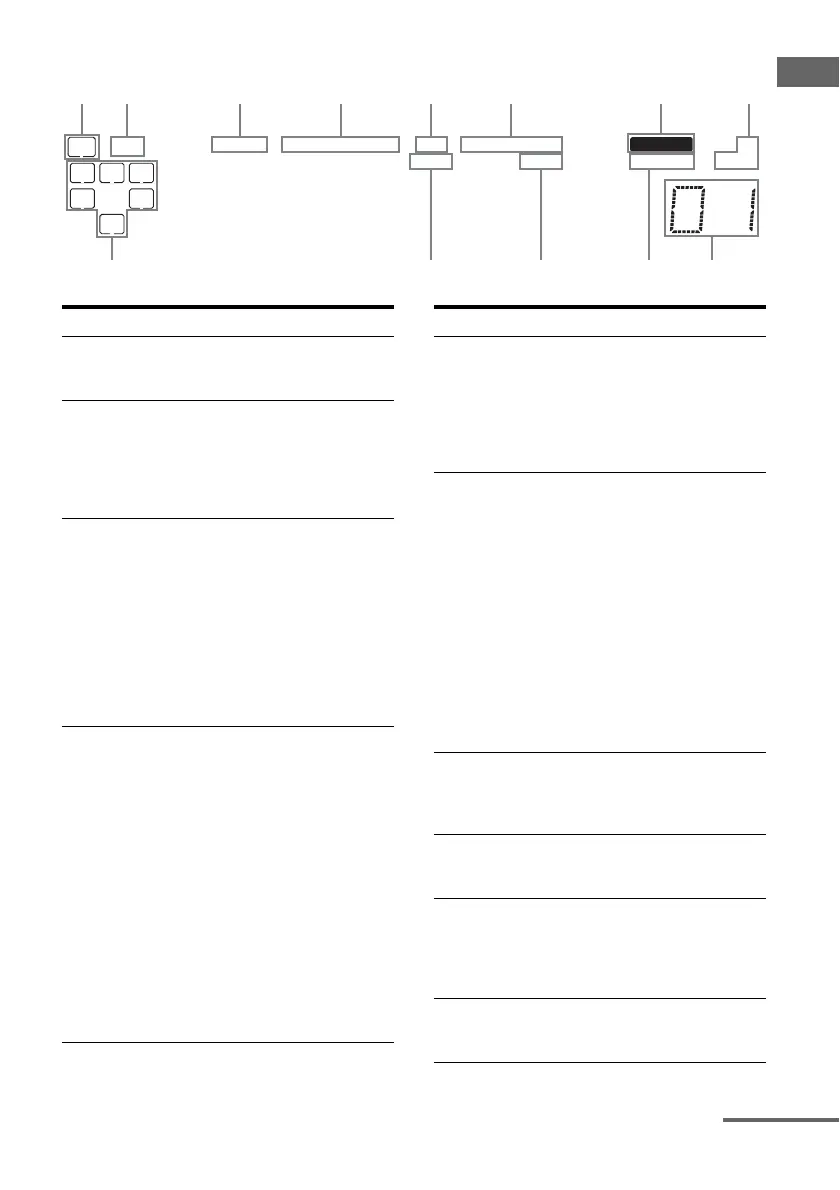

About the indicators on the display
SW
LFE
LC
SL S
;
D EX
;
PL IIx
;
PL OPT DTS
-ES 96/24 MEMORY ST
MONOD.RANGECOAX NEO:6
SB
R
SR
9q;qd qs qa
Name Function
A SW Lights up when the audio signal
is output from the SUB
WOOFER jack.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C ; D (EX) “; D” lights up when Dolby
Digital signals are input.
“; D EX” lights up when
Dolby Digital Surround EX
signals are decoded.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to “ANALOG” (page 62).
D ; PL
(II)/(IIx)
“; PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PL II” lights up when the
Pro Logic II Movie/Music/
Game decoder is activated.
“; PL IIx” lights up when the
Pro Logic IIx Movie/Music/
Game decoder is activated.
Note
Dolby Pro Logic IIx decoding
does not function for DTS
format signals or for signals
with a sampling frequency of
more than 48 kHz.
Name Function
E OPT Lights up when INPUT MODE
is set to “AUTO IN” and the
source signal is a digital signal
being input through the
OPTICAL jack, or when
INPUT MODE is set to “OPT
IN” (page 62).
F DTS (-ES)/
(96/24)
“DTS” lights up when the
receiver is decoding DTS
signals.
“DTS-ES” lights up when the
receiver is decoding DTS-ES
signals.
“DTS 96/24” lights up when the
receiver is decoding DTS 96
kHz/24 bit signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
“ANALOG” (page 62).
G MEMORY Lights up when a memory
function, such as Preset
Memory (page 60), etc., is
activated.
H Tuner
indicators
Lights up when using the
receiver to tune in radio stations
(page 58), etc.
I Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 60.
J D.RANGE Lights up when dynamic range
compression is activated (page
44).
continued
To Next Page
