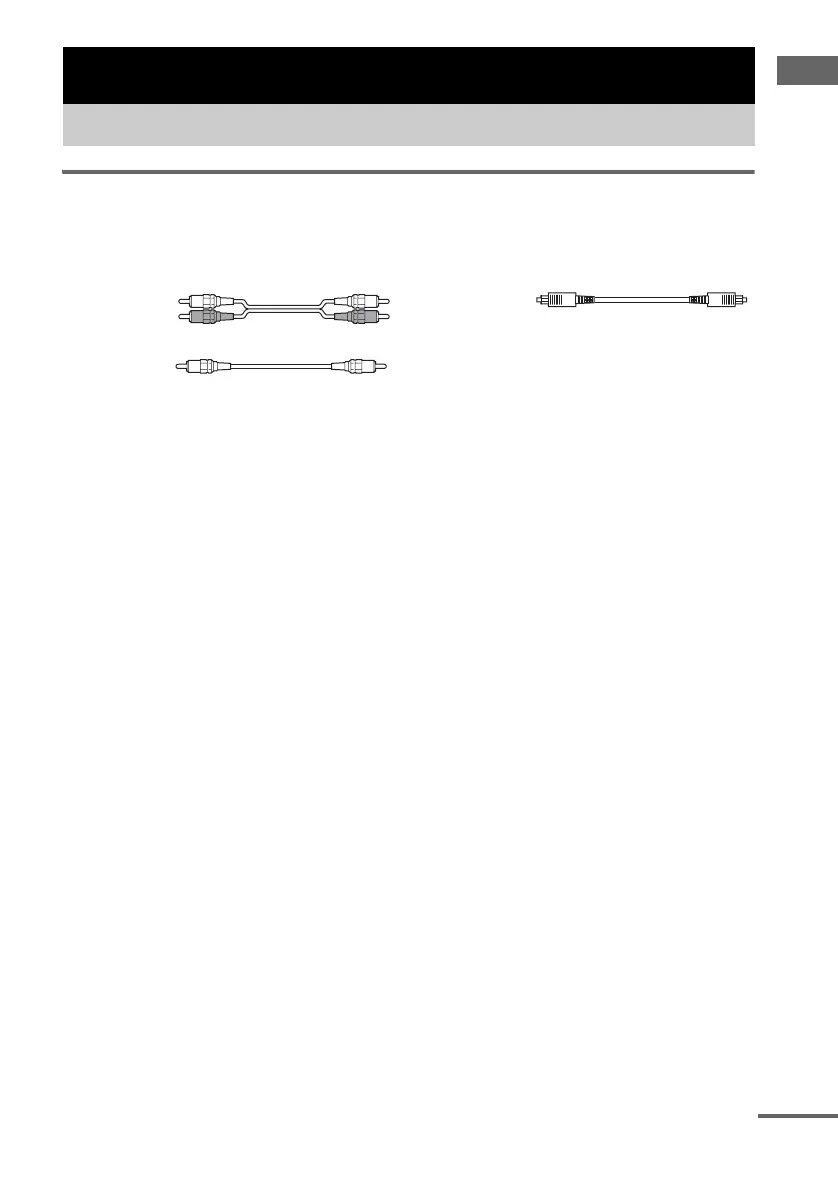

Required cords
The hookup diagram on page 6 assume the use of the following optional connection cords (A to C )
(not supplied unless indicated).
A Audio cord
White (L)
Red (R)
B Coaxial digital cord (supplied)
Orange
C Optical digital cord
Notes
• Turn off the power to all components before making any connections.
• Be sure to make connections firmly to avoid hum and noise.
• When connecting an audio cord, be sure to match the color-coded pins to the appropriate jacks on the components:
white (left, audio) to white; and red (right, audio) to red.
• When connecting optical digital cords, insert the cord plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Getting Started
1: Connecting your components
