Note
If your TV is not compatible with eARC/ARC, connect an optical digital cable (not supplied) in addition to the HDMI cable
(supplied).
When adhering the WALL MOUNT TEMPLATE on the wall, smooth it out fully.
Install the bar speaker apart from the TV by 70 mm (2 7/8 in) or more.
Hang the bar speaker so that the bottom of the bar speaker is at least 3 cm (1 3/16 in) above the floor.
Mounting the optional speakers on a wall
Refer to the operating instructions of the optional speakers.
Related Topic
Connecting to a TV

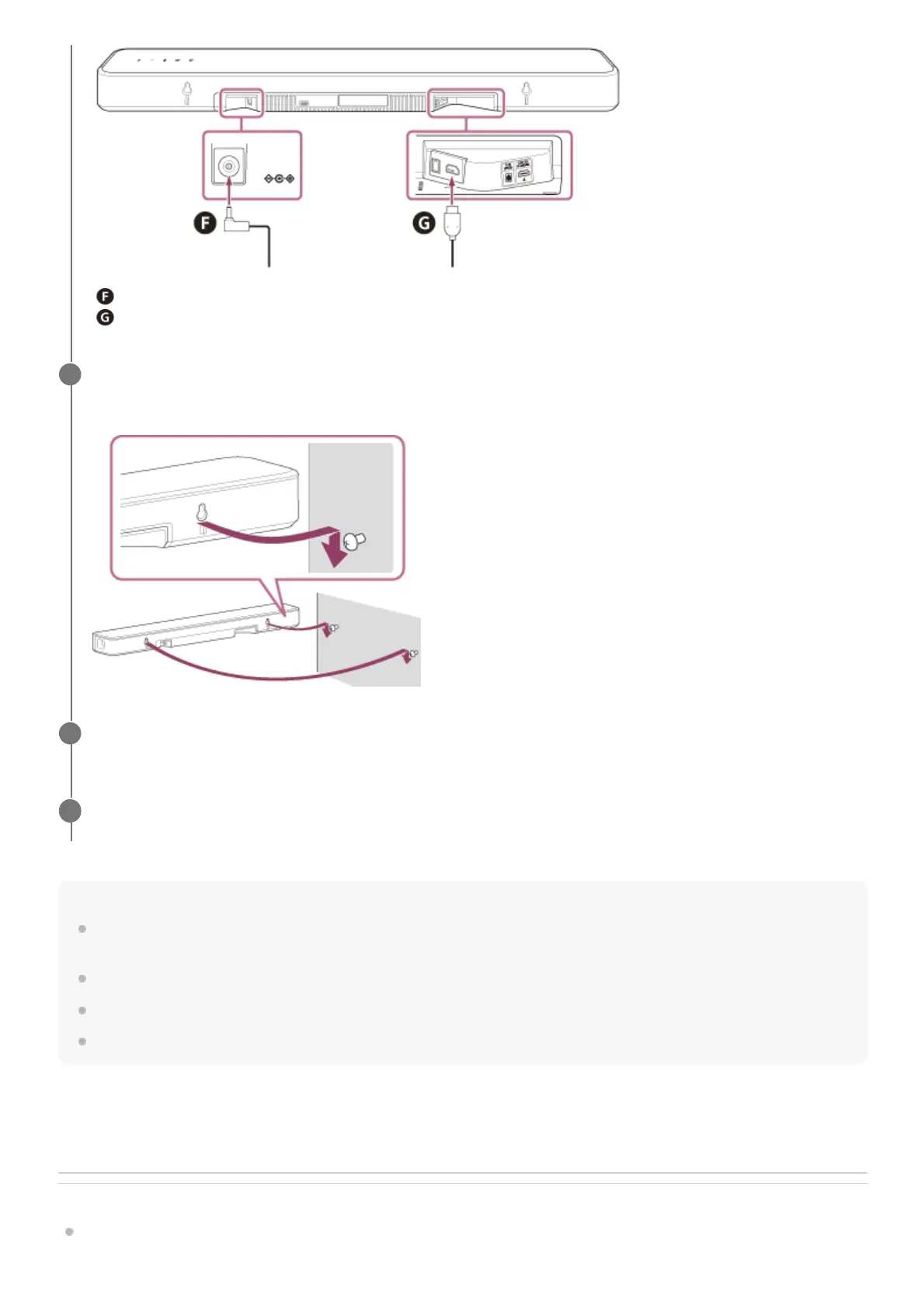

AC adaptor (supplied)
HDMI cable (supplied)
Hang the bar speaker on the screws.
Align the holes on the rear of the bar speaker with the screws, then hang the bar speaker on the two screws.
7
Connect the HDMI cable (supplied) connected to the bar speaker to the eARC/ARC HDMI input jack of the
TV.
8
Connect the AC power cord (mains lead) of the AC adaptor (supplied) connected to the bar speaker to the
AC outlet (mains).
9
