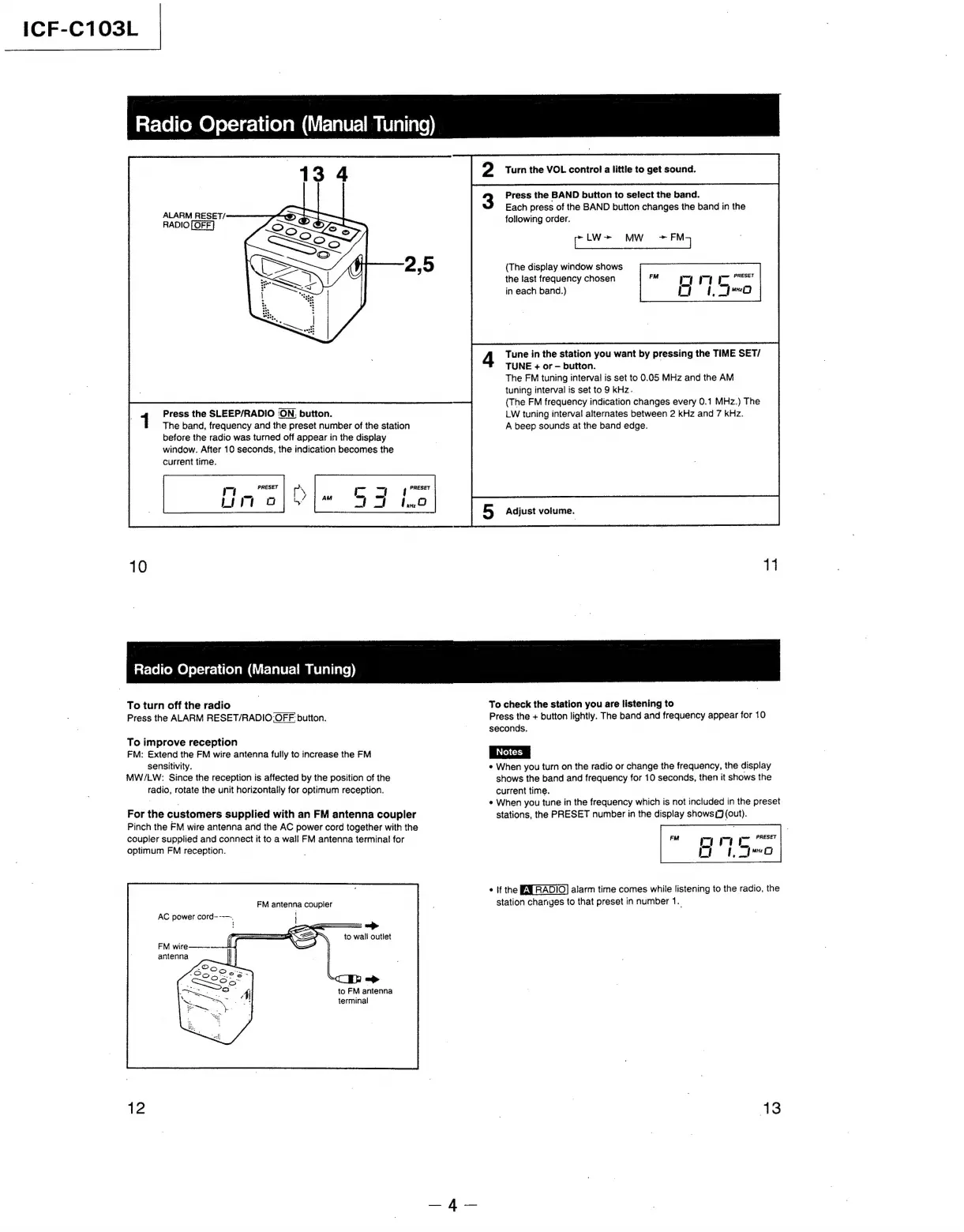

ICF-C103L
atz\o/(om@)ercie-licelamiiiiclaer-l mlb laliare)
ALARM RESET/
RADIO
1 Press the SLEEP/RADIO ‘ON; button.
The band, frequency and the preset number of the station
before the radio was turned off appear in the display
window. After 10 seconds, the indication becomes the
current time.
10
atzlol(om@lel-e-1 (elem (utcleltrclMmeelaliace))
a Turn the VOL control a little to get sound.
3 Press the BAND button to select the band.
Each press of the BAND button changes the band in the
following order.
akee MW mde
(The display window shows
the last frequency chosen
in each band.)
7 7 war ~PRESET
mt) 1, 0
4 Tune in the station you want by pressing the TIME SET/
TUNE + or — button.
The FM tuning interval is set to 0.05 MHz and the AM
tuning interval is set to 9 kHz.
(The FM frequency indication changes every 0.1 MHz.) The
LW tuning interval alternates between 2 kHz and 7 kHz.
A beep sounds at the band edge.
5 Adjust volume.
11
To turn off the radio
Press the ALARM RESET/RADIO.OFF button.
To improve reception
FM: Extend the FM wire antenna fully to increase the FM
sensitivity.
MW/LW: Since the reception is affected by the position of the
radio, rotate the unit horizontally for optimum reception.
For the customers supplied with an FM antenna coupler
Pinch the FM wire antenna and the AC power cord together with the
coupler supplied and connect it to a wall FM antenna terminal for
optimum FM reception.
FM antenna coupler
AC power cord--—..
to wall outlet
FM wire
antenna
to FM antenna
terminal
12
To check the station you are listening to
Press the + button lightly. The band and frequency appear for 10
seconds.
e When you turn on the radio or change the frequency, the display
shows the band and frequency for 10 seconds, then it shows the
current time.
¢ When you tune in the frequency which is not included in the preset
stations, the PRESET number in the display shows{J (out).
¢ If the EAL RADIO] alarm time comes while listening to the radio, the
station chariges to that preset in number 1.
