ICF-C303 |

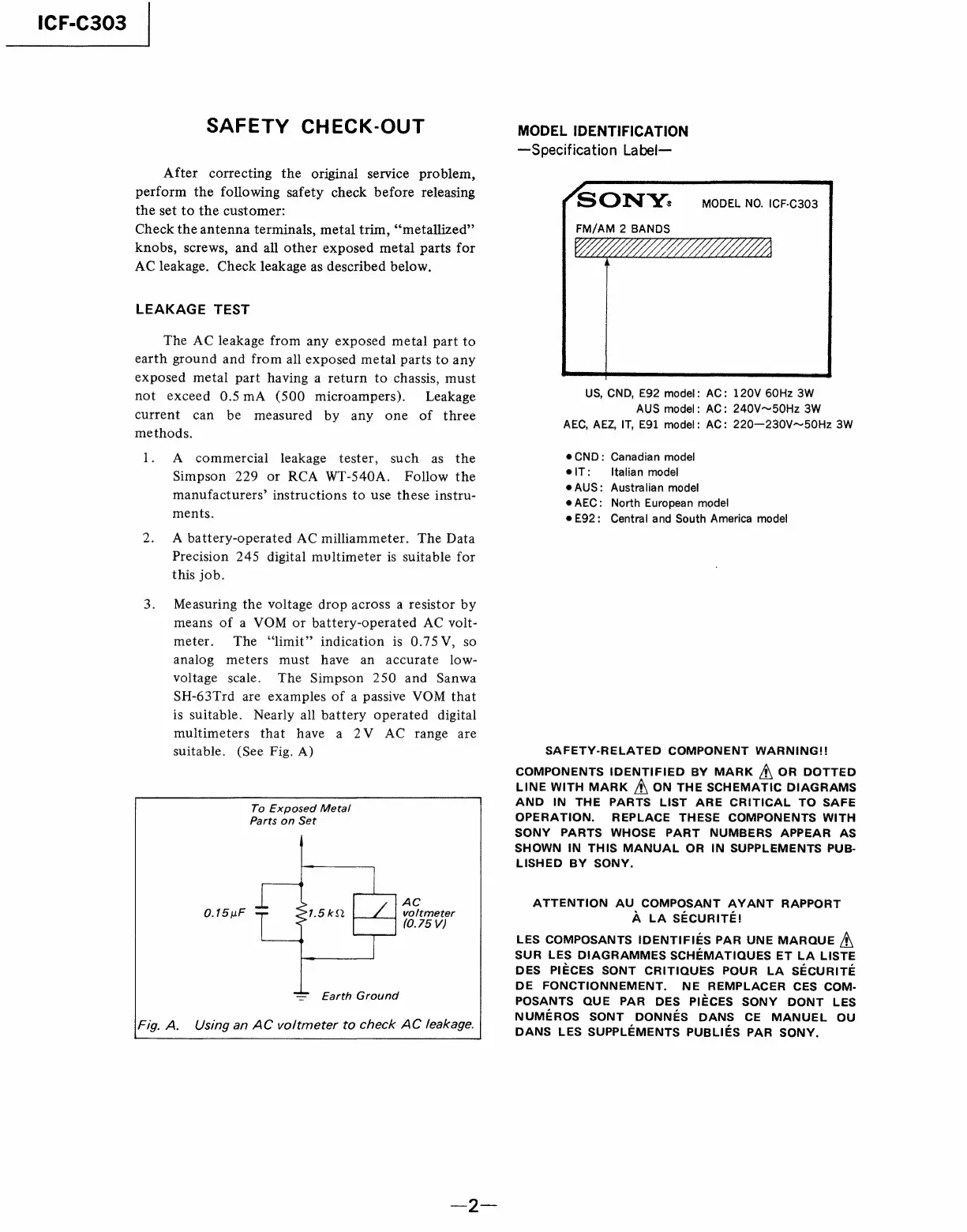

SAFETY
CHECK-OUT
MODEL
IDENTIFICATION
—Specification
Label—
After correcting the original service problem,
perform the following safety check before releasing SONY:
the set to the customer:
Check the antenna terminals, metal trim, “metallized” FM/AM 2 BANDS
knobs, screws, and all other exposed metal parts for Yu“ db 0:0:0::=t-;
AC leakage. Check leakage as described below.
MODEL NO. ICF-C303
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5mA (500 microampers). Leakage US, CND, E92 model: AC: 120V 60Hz 3W
current can be measured by any one of three AUS models AG tN o0kz aw
aay AEC, AEZ, IT, E91 model: AC: 220—230V~50Hz 3W
methods.
1. A commercial leakage tester, such as the @CND: Canadian model
Simpson 229 or RCA WT-540A. Follow the elT: Italian model
fac ere ti t th act eAUS: Australian model
manufacturers’ instructions to use these instru- @AEC™ North European migdel
ments.
@E92:
Central
and
South
America
model
2. <A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The “limit” indication is 0.75V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A) SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK /\ OR DOTTED
LINE WITH MARK A\ ON THE SCHEMATIC DIAGRAMS
Fa Exposed cul AND IN THE PARTS LIST ARE CRITICAL TO SAFE
Pecan set OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
AC ATTENTION AU COMPOSANT AYANT RAPPORT
al erate A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE /\
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM.
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
= Earth Ground
Using an AC voltmeter to check AC leakage.
