SECTION
2
DIAL
POINTER
SETTING
DIAL
POINTER
SETTING

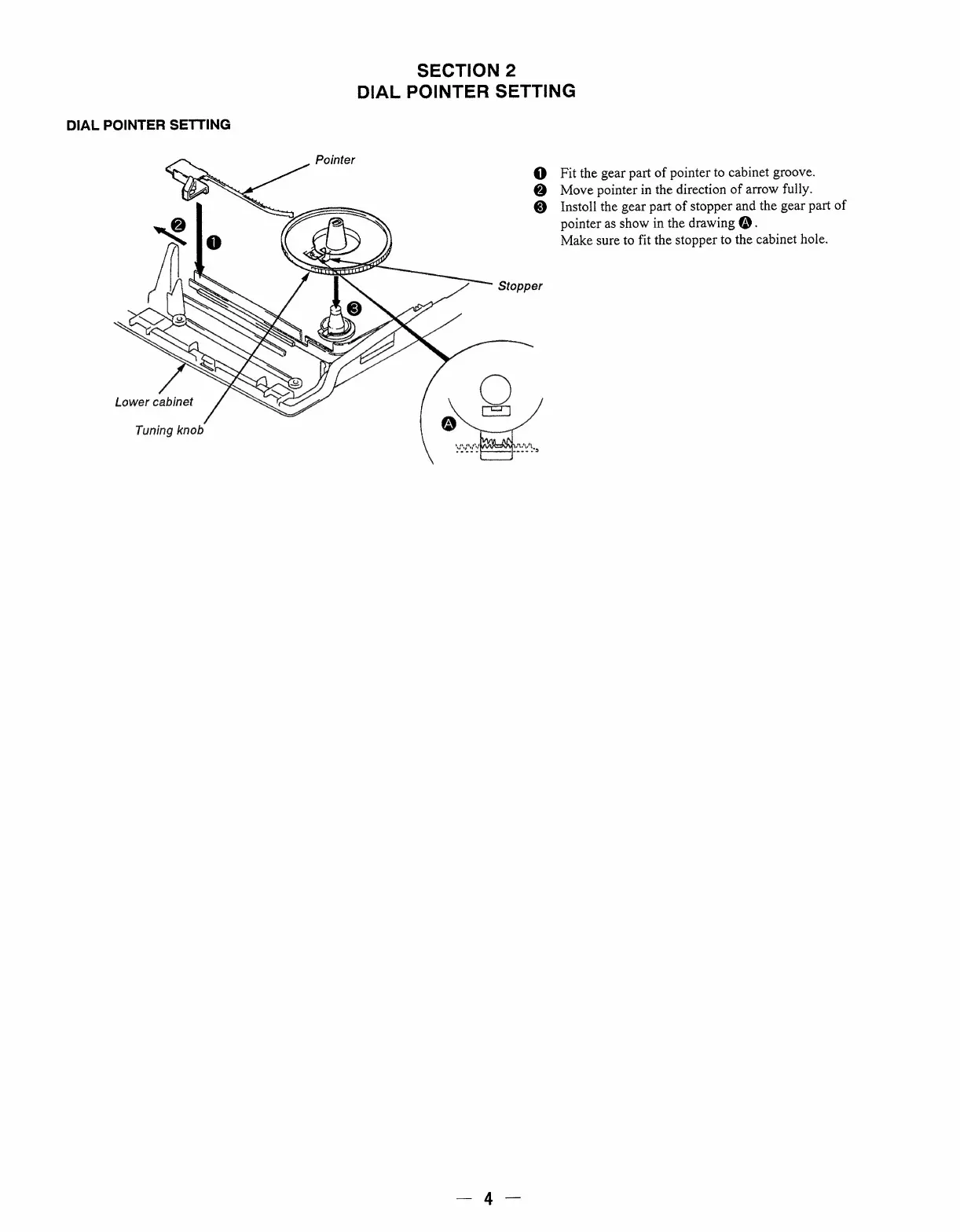

Pointer
Fit
the
gear
part
of
pointer
to
cabinet
groove.
Move
pointer
in
the
direction
of
arrow
fully.
Instoll
the
gear
part
of
stopper
and
the
gear
part
of
pointer
as
show
in
the
drawing
@.
Make
sure
to
fit
the
stopper
to
the
cabinet
hole.
oO
2]
©
Stopper
Lower
cabinet
Tuning
knob
