Sony ICF-C360 - Exploded View

NOTE:
@® -XX, -X mean standardized parts, so
they may have some difference from the
original one.
@ The construction parts of an assembled
part are indicated with a collation
number in the remark column.
@ Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) (RED)
Ref. No.
om om CO Do Fe
mom oe

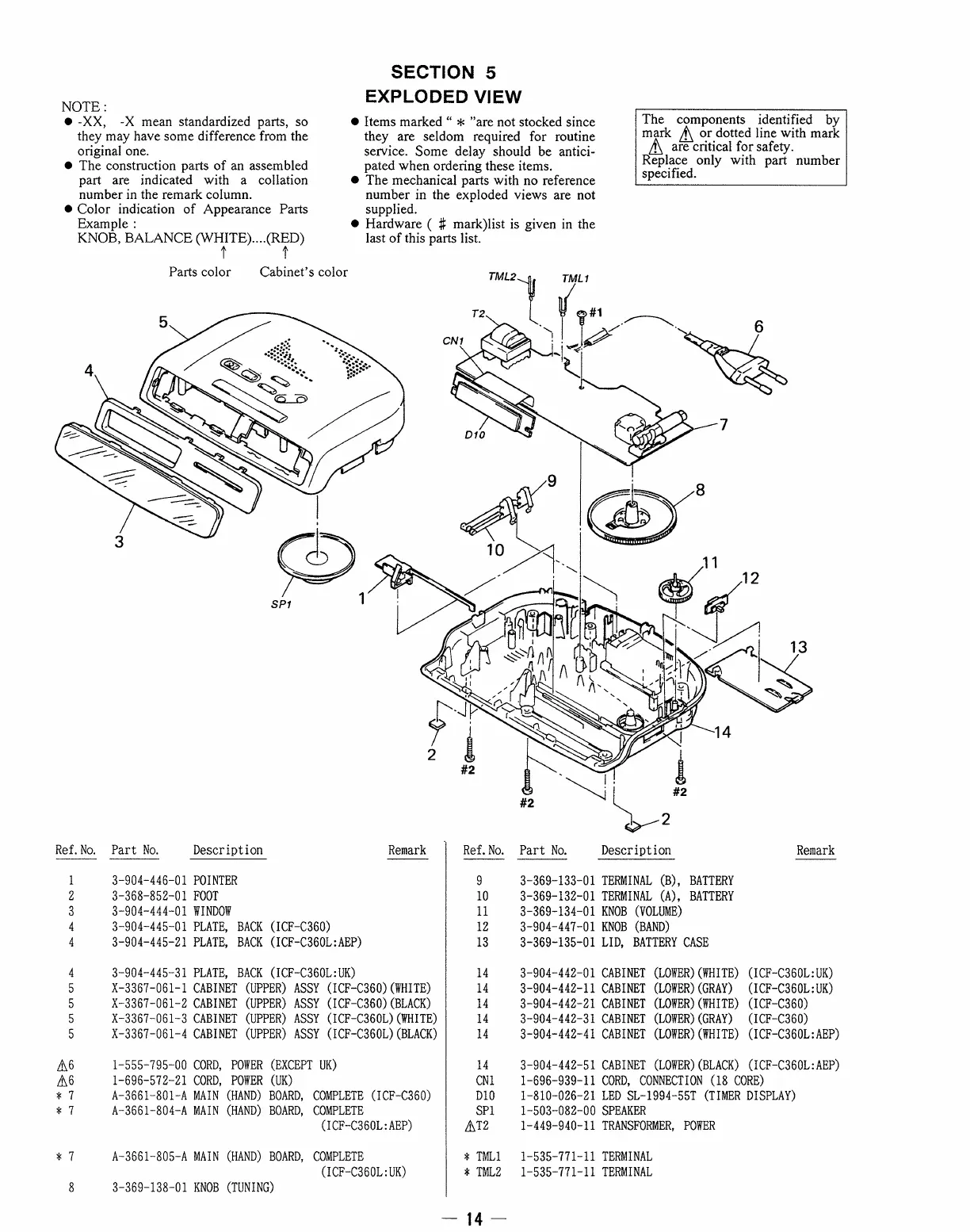

SECTION 5
EXPLODED VIEW
supplied.
Parts color Cabinet’s color
Part No. Description Remark
3-904-446-01 POINTER
3-368-852-01 FOOT
3-904-444-01 WINDOW
3-904~445-01 PLATE, BACK (ICF-C360)
3-904-445-21 PLATE, BACK (ICF-C360L: AEP)
3~904-445-31 PLATE, BACK (ICF~C360L:UK)
X-3367-061-1 CABINET (UPPER) ASSY (ICF~C360) (WHITE)
X-3367-061-2 CABINET (UPPER) ASSY (ICF-C360) (BLACK)
X-3367-061-3 CABINET (UPPER) ASSY (ICF-C360L) (WHITE)
X-3367-061-4 CABINET (UPPER) ASSY (ICF-C360L) (BLACK)
1-555-795-00 CORD, POWER (EXCEPT UK)
1-696-572-21 CORD, POWER (UK)
A-3661-801-A MAIN (HAND) BOARD, COMPLETE (ICF-C360)
A~3661-804-A MAIN (HAND) BOARD, COMPLETE
(ICF-C360L: AEP)
A-3661-805-A MAIN (HAND) BOARD, COMPLETE
(ICF-C360L: UK)
3-369-138-01 KNOB (TUNING)
@ Items marked “ * ”are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
@ The mechanical parts with no reference
number in the exploded views are not
Part No.
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
specified.
@ Hardware ( # mark)list is given in the
last of this parts list.
Description Remark
3-369-133-01 TERMINAL (B), BATTERY
3-369-132-01 TERMINAL (A), BATTERY
3-369-134-01 KNOB (VOLUME)
3-904-447-01 KNOB (BAND)
3-369-135-01 LID, BATTERY CASE
3-904-442-01 CABINET (LOWER) (WHITE) (ICF~C360L:UK)
3-904-442-11 CABINET (LOWER) (GRAY) (ICF-C360L:UK)
3-904-442-21 CABINET (LOWER) (WHITE) (ICF-C360)
3-904-442-31 CABINET (LOWER) (GRAY) (ICF-C360)
3-904-442-41 CABINET (LOWER) (WHITE) (ICF-C360L: AEP)
3-904-442-51 CABINET (LOWER) (BLACK) (ICF-C360L:AEP)
1-696-939-11 CORD, CONNECTION (18 CORE)
1-810-026-21 LED SL~1994-55T (TIMER DISPLAY)
1-503-082-00 SPEAKER
1-449-940-11 TRANSFORMER, POWER
1-535-771-11 TERMINAL
1-535-771-11 TERMINAL
