Sony IGF-M50RDS - Section 4 Exploded View; Cabinet Section

NOTE:
@ —XX, —X mean standardized parts, so
they may have some differences from
the original one.
® Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)...(RED)
t

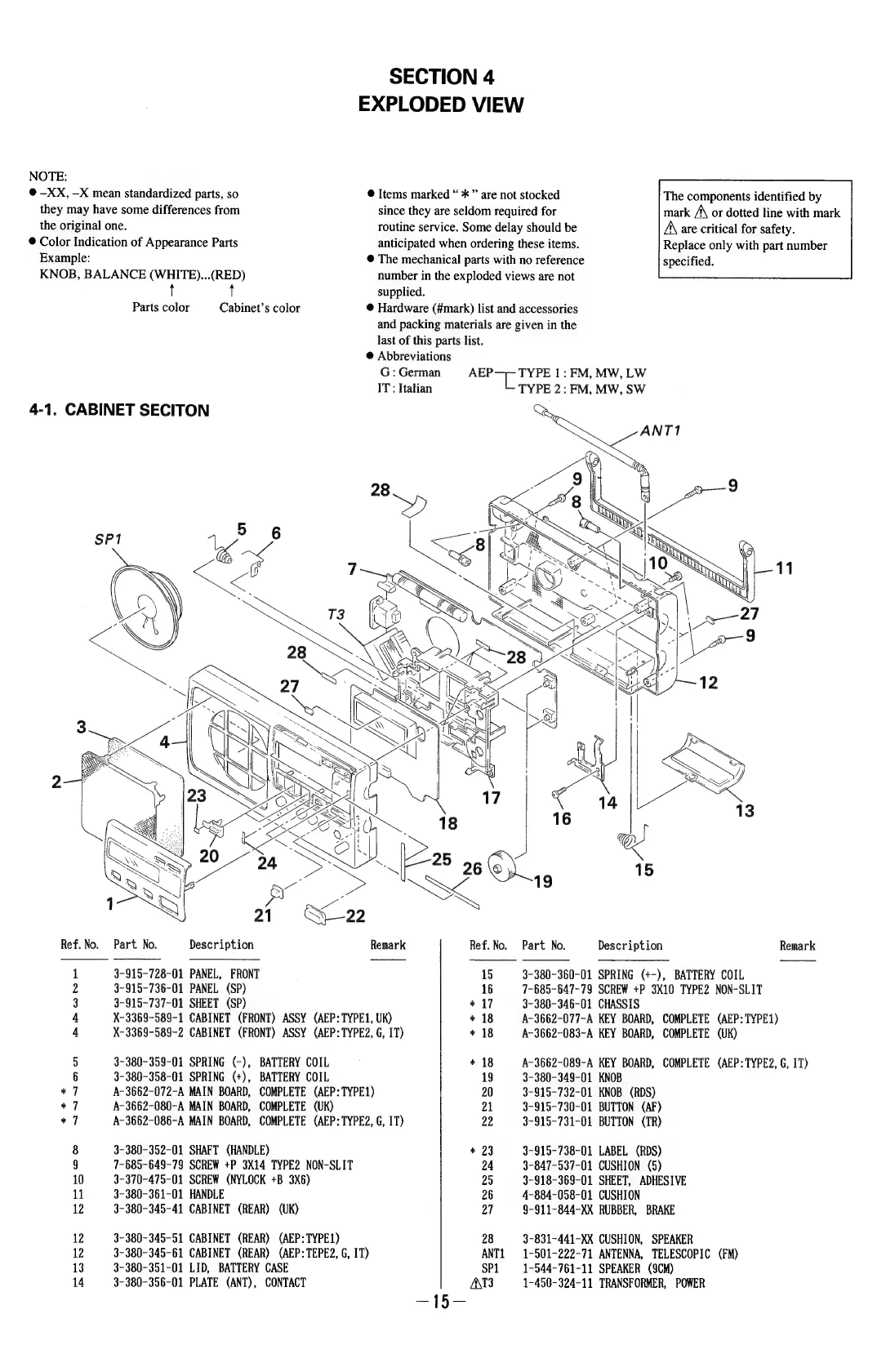

4-1. CABINET SECITON
Ref. No.
He B o> bo
%
~~ mS OT
SECTION 4
EXPLODED VIEW
Parts color Cabinet’s color
@ Items marked “ *” are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
® The mechanical parts with no reference
number in the exploded views are not
supplied.
® Hardware (#mark) list and accessories
The components identified by
mark /\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.
and packing materials are given in the
last of this parts list.
@ Abbreviations
G: German
IT: Italian
Part No. Description
3-915-728-01 PANEL, FRONT
3-915-736-01 PANEL (SP)
3-915-737-01 SHEET (SP)
X-3369-589-1 CABINET (FRONT) ASSY (AEP: TYPE1, UK)
X-3369-589-2 CABINET (FRONT) ASSY (AEP: TYPE2, G, IT)
3-380-359-01 SPRING (-), BATTERY COIL
3-380-358-01 SPRING (+), BATTERY COIL
A-3662-072-A MAIN BOARD, COMPLETE (AEP: TYPE1)
A-3662-080-A MAIN BOARD, COMPLETE (UK)
A-3662-086-A MAIN BOARD, COMPLETE (AEP: TYPE2, G, IT)
3-380-352-01 SHAFT (HANDLE)
7-685- 649-79 SCREW +P 3X14 TYPE2 NON-SLIT
3-370-475-01 SCREW (NYLOCK +B 3X6)
3-380-361-01 HANDLE
3-380-345-41 CABINET (REAR) (UK)
3-380-345-51 CABINET (REAR) (AEP: TYPE1)
3-380-345-61 CABINET (REAR) (AEP: TEPE2, 6, IT)
3-380-351-01 LID, BATTERY CASE
3-380-356-01 PLATE (ANT), CONTACT
AEP
oe
Ref. No.
* & &
—> jb ped oon
TYPE 1: FM, MW, LW
TYPE 2: FM, MW, SW
Part No. Description Remark
3-380-360-01 SPRING (+-), BATTERY COIL
7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
3-380-346-01 CHASSIS
A-3662-077-A KEY BOARD, COMPLETE (AEP: TYPE1)
A-3662-083-A KEY BOARD, COMPLETE (UK)
A-3662-089-A KEY BOARD, COMPLETE (AEP:TYPE2, G, IT)
3-380-349-01 KNOB
3-915-732-01 KNOB (RDS)
3-915-730-01 BUTTON (AF)
3-915-731-01 BUTTON (TR)
3-915-738-01 LABEL (RDS)
3-847-537-01 CUSHION (5)
3-918-369-01 SHEET, ADHESIVE
4-884-058-01 CUSHION
§-911~844-XX RUBBER, BRAKE
3~831-441-XX CUSHION, SPEAKER
1-501-222-71 ANTENNA, TELESCOPIC (FM)
1-544-761-11 SPEAKER (9CM)
1-450-324-11 TRANSFORMER, POWER
