Sony KD-43X80K Dismantling Guide

2
3
4
1
5
3
4
2
CONNECTOR
18
REF. NO PART NO. DESCRIPTION REMARKS
1
1-010-989-22 CONNECTOR ASSY 4P (SP)
CN3550(BM5A)/CN6600(BM5STY)/CN6603 (BM5ST)-SP(1)
Compatible
1
1-010-989-12 CONNECTOR ASSY 4P (SP)
2
1-010-994-11 FLEXIBLE FLAT CABLE 25P
CN1200(BM5A)-CN102(HT2)(1)
Compatible
2
1-010-993-11
FLEXIBLE FLAT CABLE 25P
3
1-010-992-11 FLEXIBLE FLAT CABLE 20P
CN3801(BM5A)-J1(WIFI/BT)(1)
Compatible
3
1-010-991-11
FLEXIBLE FLAT CABLE 20P
4
1-010-996-11 FLEXIBLE FLAT CABLE 51P CN4200(BM5A)-U1(TCON)(1)
-
5
1-010-990-22
CONNECTOR ASSY 30P
CN1701(BM5A)-CN6401(GL)(1)
Compatible
5
1-010-990-11
CONNECTOR ASSY 30P

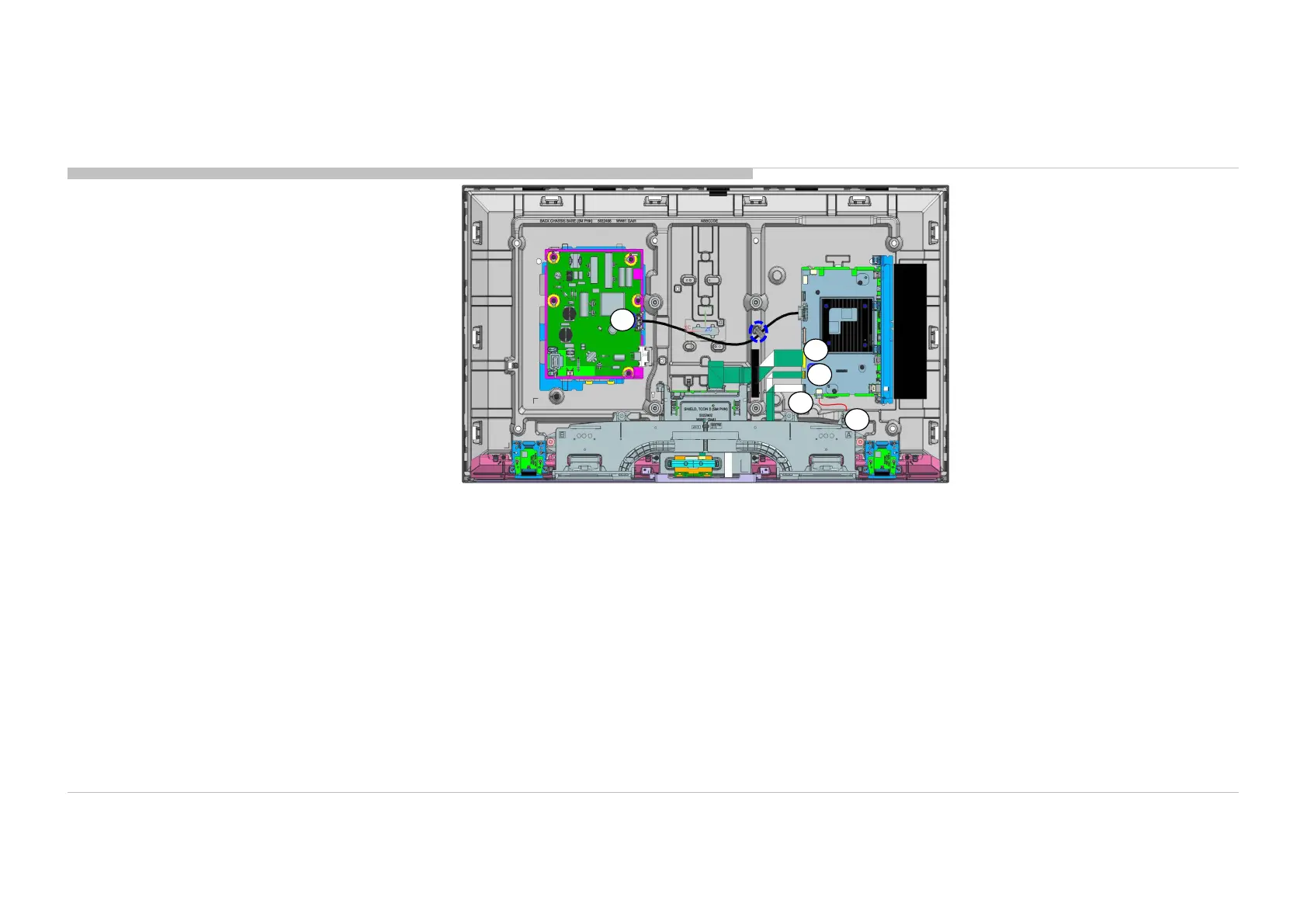

EXPLODED VIEW & PART LIST 43”

Sony KD-43X80K Specifications

General

Screen Size	43 inches
Display Type	LCD
Smart TV	Yes
Operating System	Google TV
HDMI Ports	4
USB Ports	2
Wi-Fi	Yes
Bluetooth	Yes
Refresh Rate	60 Hz
Processor	4K HDR Processor X1
Audio Output	20 W
Resolution	3840 x 2160
HDR	HDR10, HLG
Weight	9.8 kg (without stand)
