- 11 -

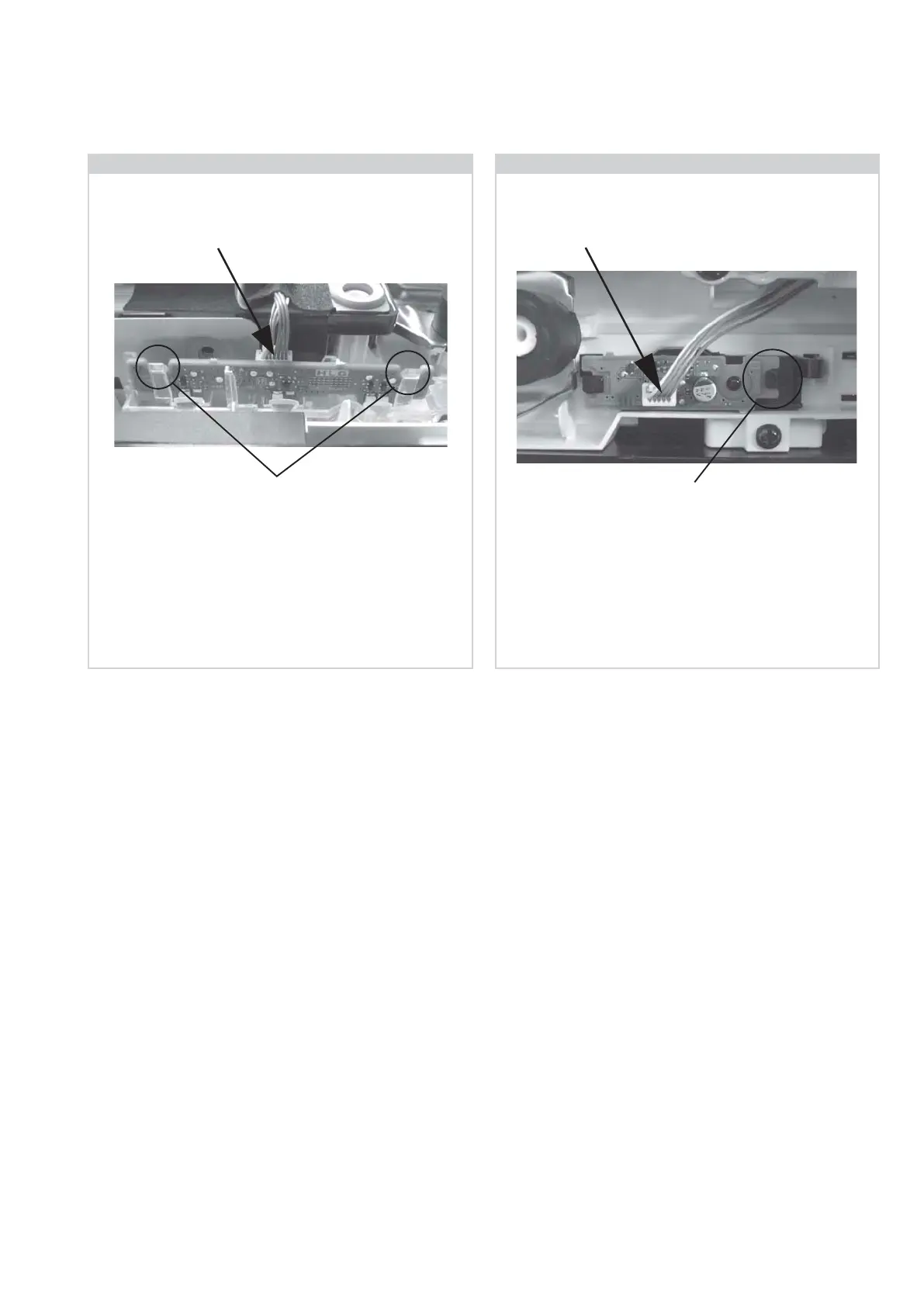

2-9. HLG Board Removal
Clips
2-10. HSN Board Removal
To remove the ‘HSN’ board disconnect the connector
indicated and then release the clip circled, the ‘HSN’ board
can then be gently eased away from the back of the TV set.
Clip
Connector
To remove the ‘HLG’ board first remove the ‘Rear Cover’
(See Sec 2-2-1) and then the ‘Switch Unit’ (See Sec 2-2-4).
The ‘HLG’ board can then be removed by disconnecting
the connector indicated and releasing the clips circled.
Connector
To Next Page
