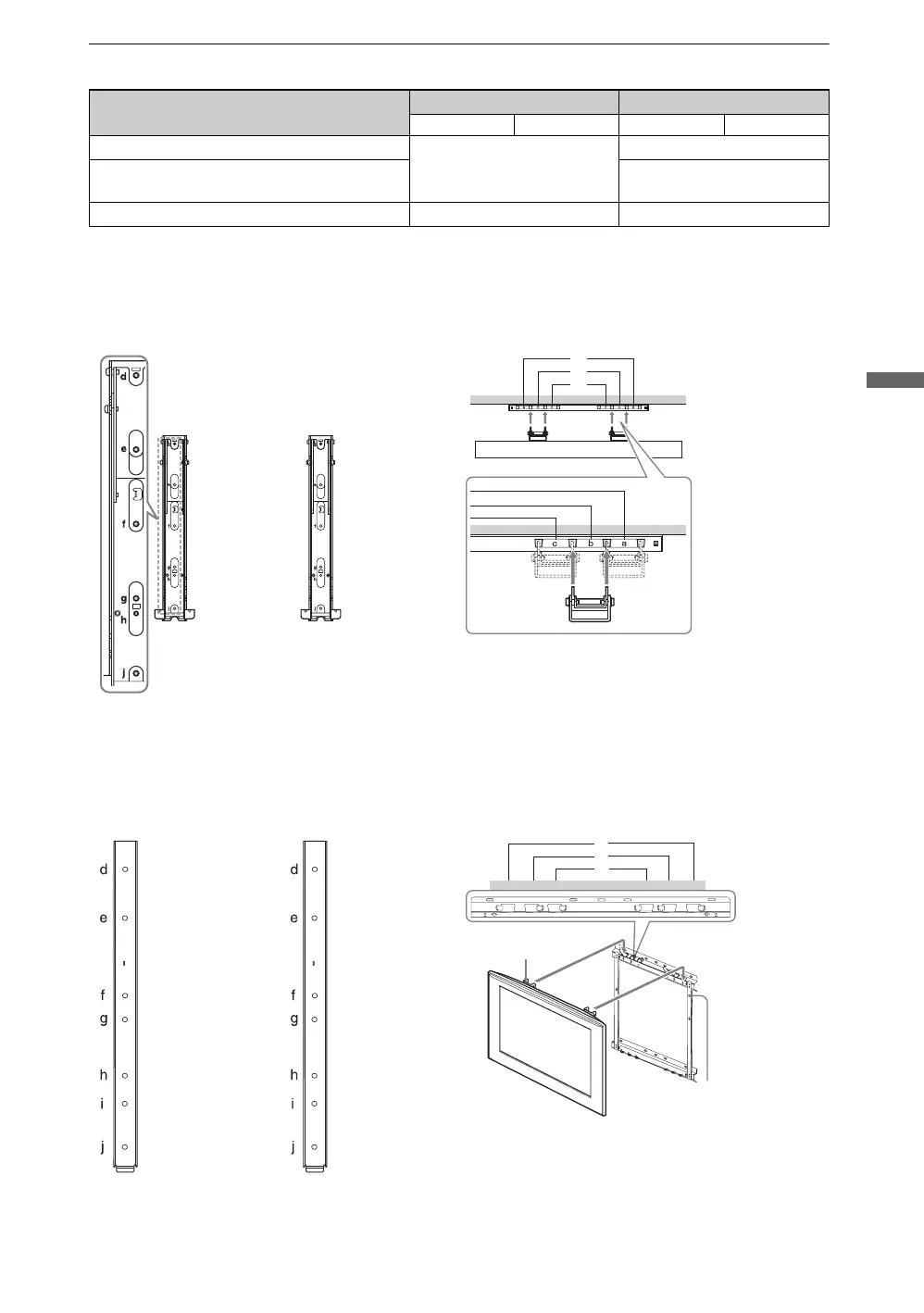

Screw and Hook locations diagram/table
SU-WL500
SU-WL50B
Model Name
Screw location Hook location
SU-WL500 SU-WL50B SU-WL500 SU-WL50B
KDL-60EX700/55EX710
e, j
a
KDL-52EX700/46EX710/46EX700/40EX710/
40EX700/40EX600
b
KDL-32EX710/32EX700/32EX600 f, j c
Screw location
When installing the Mounting Hook on the
TV.
Hook location
When installing the TV onto the Base Bracket.
b
a
c
a
b
c
c
b
a
Screw location
When installing the Mounting Hook on the
TV.
Hook location
When installing the TV onto the Base Bracket.
b
a
c
Mounting Hook
Base Bracket
