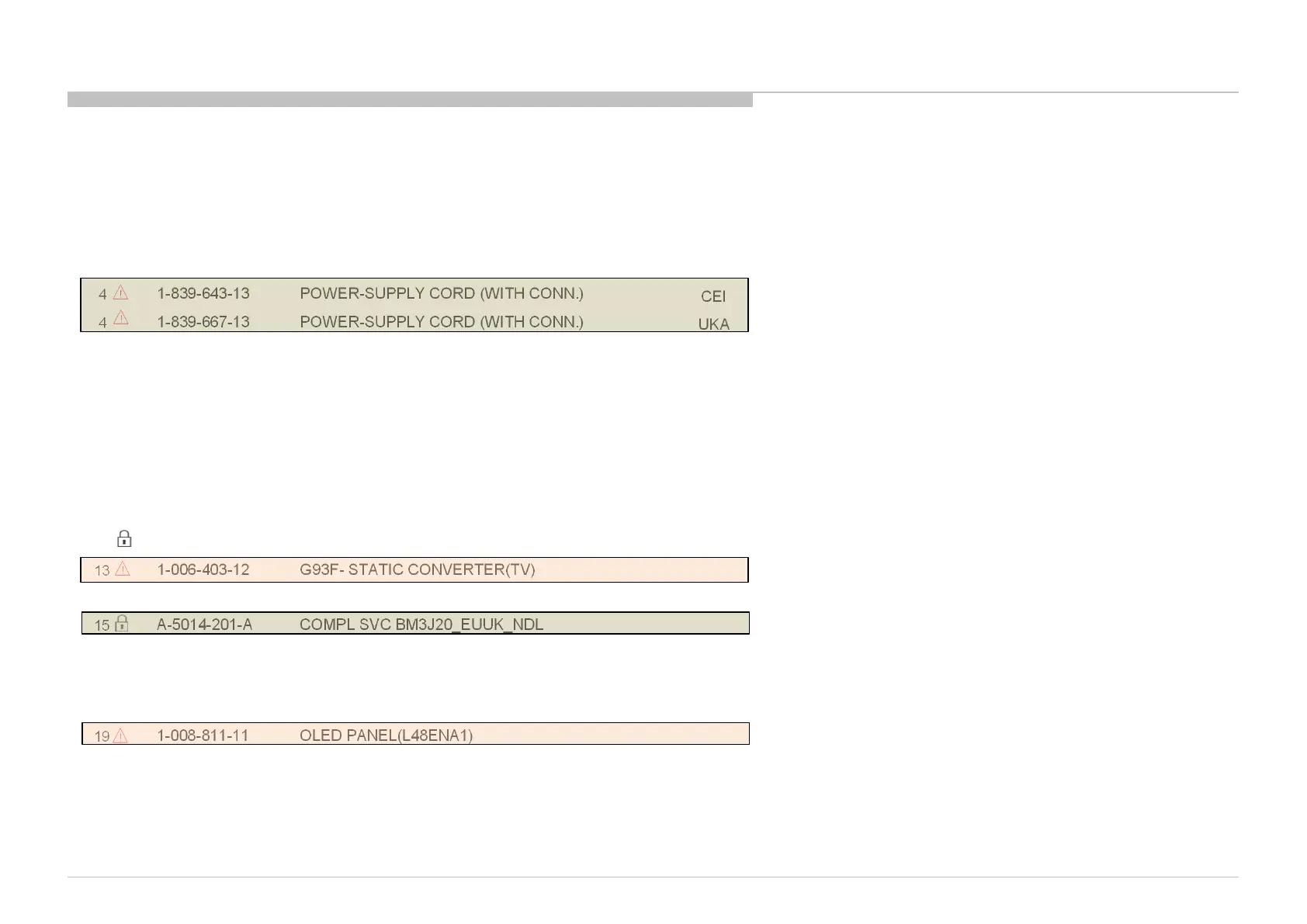

Sony KE-48A9 - Parts List

REF. NO PART NO.
DESCRIPTION
REMARKS
1
5-012-160-31 LABEL, UNDER TERMINAL (BM3J)
2
5-014-965-21 LABEL, SIDE TERMINAL (LMN)
3
4-745-608-01 AC COVER (AT)
4
1-839-643-13 POWER-SUPPLY CORD (WITH CONN.)
CEI
4
1-839-667-13 POWER-SUPPLY CORD (WITH CONN.)
UKA
5
5-015-439-01 REAR COVER (M DRN) A
6
4-726-396-42 BRACKET UNDER (BM2A)
7
5-015-523-21 BRACKET, SIDE (M DRN)
8
5-012-017-01 HOLDER, SIDE SW (CRY)
9
1-004-496-11 1 KEY SWITCH UNIT
10
1-005-555-31 SP-BOX ASSY,FY20 D40-WF-DRN
11
5-015-403-01 GUIDE, SC (M DRN)
12
1-005-419-11 WLAN/BT MODULE(11AC)
13
1-006-403-12 G93F- STATIC CONVERTER(TV)
14
5-015-816-01 SHT, INSULATION (DRN M)
15
A-5014-201-A COMPL SVC BM3J20_EUUK_NDL
16
4-699-975-02 SHEET,THERMAL(5567H)
17
2-650-770-31 SLIDE, CLAMP (Qty, 3pcs)
18
*5-018-175-01 BRACKET, VESA (M DRN)
19
1-008-811-11 OLED PANEL(L48ENA1)
20
5-015-573-11 NECK, STAND (M DRN) (Qty, 2pcs)
21
4-745-114-01 STAND, BASE (L PAN) A
SET PART LIST
7
!
!
!
!
Cable
Internal Power Supply
Printed Circuit Board, incl. capacitors
OLED Panel
PARTS LIST
