Adjustment Using the Menus
30
[Audio Setting]
[Position] Sets the position of the WFM/ALM/
vectorscope display. You can select from
among [Top Left], [Top Right], [Bottom
Left], [Bottom Right].
[Transparency] Selects [Black] or [Half] (transparent)
for the background of the WFM/ALM/
vectorscope display.
[Black]: The background is black.
Displayed image is hidden
behind the background.
[Half]: The background is
transparent. Displayed image
can be seen indistinctly behind
the WFM/ALM/vectorscope
display.
[Intensity] Sets the brightness of the waveform, etc.
You can select from among [Low],
[Middle], [High].

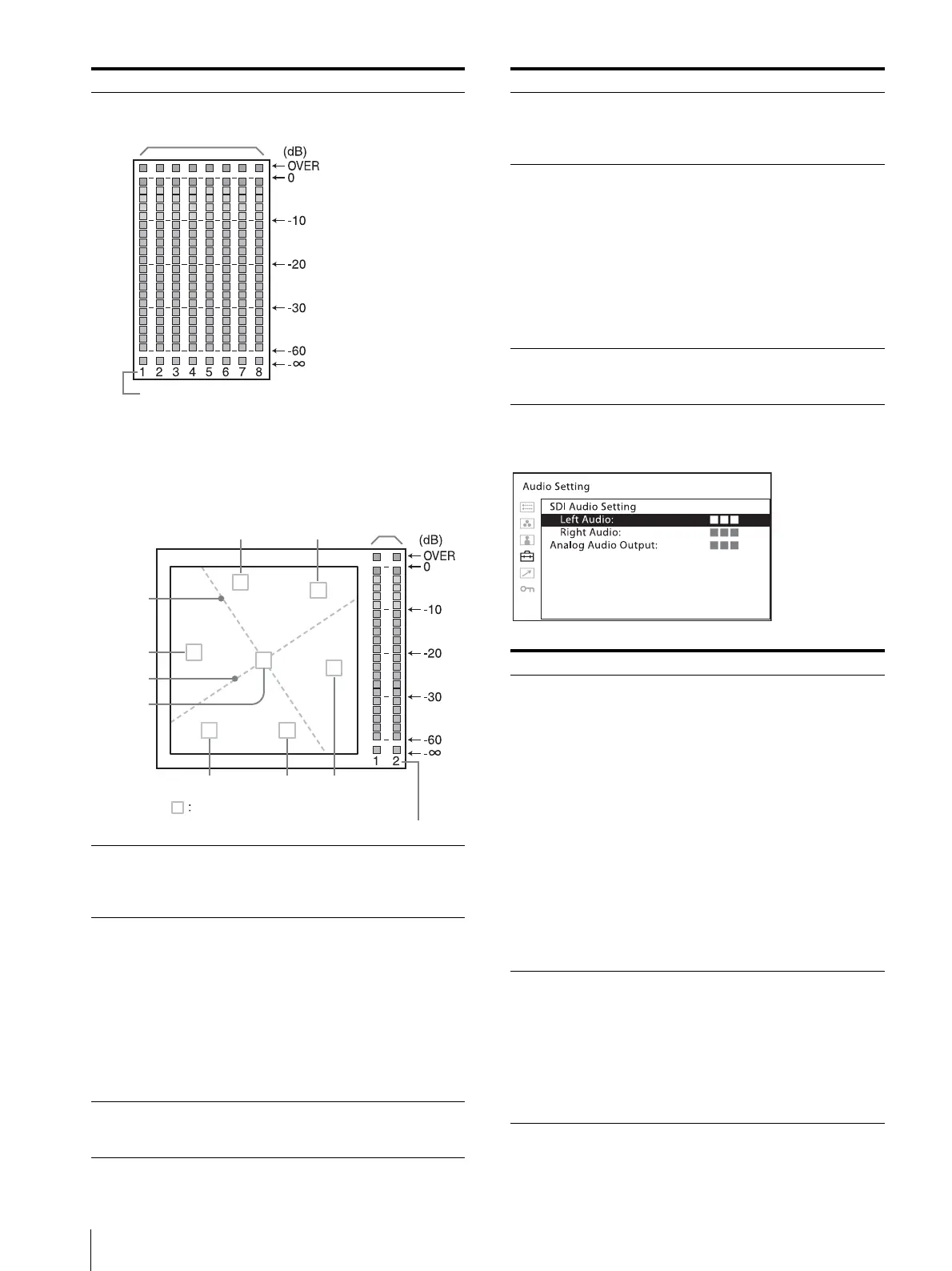

Submenu Setting
When [ALM] is selected
Audio level
Channel number
(When SDI signal is input, the eight channels are
displayed, including the channel which is selected in
[SDI Audio Setting]. The selected channels are displayed
brightly.)
When [Vector] is selected
Red
Magenta
Audio level
Bar I
Yellow
Bar Q
Black
Green
Cyan
Blue
Color target frame
Channel number
[Zoom] When [On] is set, 0-20 IRE areas will be
zoomed when [WFM] is selected, or
black areas will be zoomed when
[Vector] is selected.
[Line Select] Select [On] to display the waveform of
the line assigned in [Position] below,
when [WFM] is selected.
[Color]: Selects the displayed line
color from among [Red], [Green],
[Blue], [Yellow], [White].
[Position]: Sets the line position.
When the numerical value is
increased, the line will move down;
when decreased, the line will move
up.
[Target] Select [75%] or [100%]. Switches the
vectorscope target between 75% and
100%.
Submenu Setting
[SDI Audio Setting] Sets the audio channel when SDI signal
is input.
[Left Audio]: Selects from channels
[CH1] to [CH16].
[Right Audio]: Selects from channels
[CH1] to [CH16].
When a channel from [CH1] to [CH8]
is selected in [Left Audio], you can
select a channel from [CH1] to [CH8]
in [Right Audio]. When a channel from
[CH9] to [CH16] is selected in [Left
Audio], you can select a channel from
[CH9] to [CH16] in [Right Audio].
You can display the L/R audio levels of
the selected channels. (see [WFM/
ALM/Vector (waveform monitor, audio
level meter, and vectorscope) Setting]
(page 29)).
[Analog Audio
Output]
Select an audio format to output from
speakers, headphone jack, and AUDIO
OUT connector.
[Embedded]: Outputs an audio signal
embedded in SDI or HDMI
signal.
[Analog]: Outputs an audio signal
that comes from the AUDIO IN
connector.
Submenu Setting
To Next Page
