Sony MDR-RF830 - Section 1 Disassembly

— 2 —
Note: Follow the disassembly procedure in the numerical order given.
SECTION 1
DISASSEMBLY
— 2 —

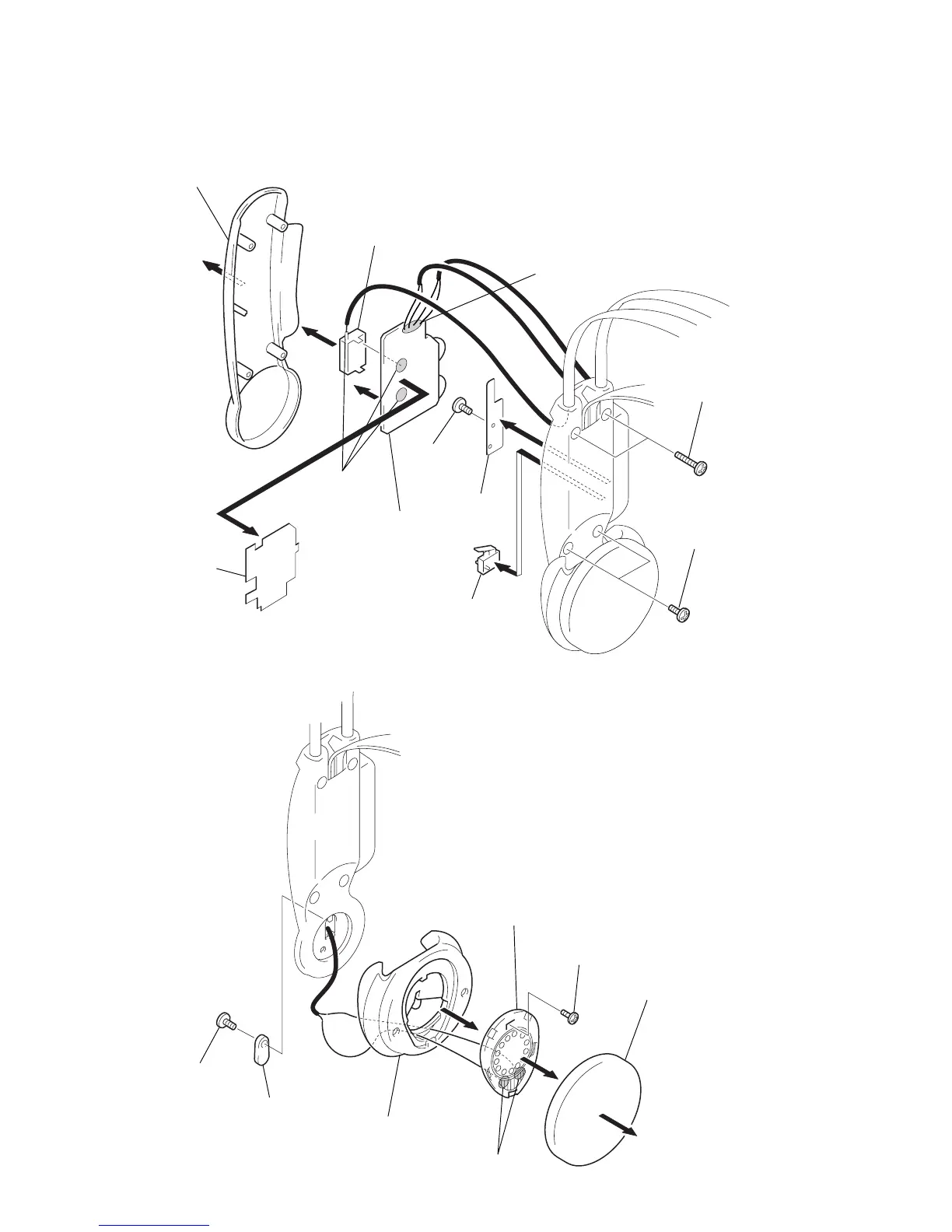

1-1. RX BOARD, FE BOARD (R-CH)
3 Cover (R), hanger
7 FE board
4 RX board
8 Remove solder
9 Screw
(M1.7
× 4)
1 Screws (+P2 × 12)
2 Screws (+P2 × 8)
0 Spacer
!¡ SW1
6 Remove
solder
5 Plate, RX shield
1-2. MDD02 (R-CH)
5 Screw (M1.7 × 4)
2 Screw (+P2 × 8)
4 Housing (R) assy
6 MDD02 (R-CH)
1 Pad, ear
7 Remove solder
3 Holder, ball shaft
