— 11 —
SECTION 4
EXPLODED VIEW
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-994-129-01 PAD, EAR
2 X-4950-086-1 HOUSING (R) ASSY
3 4-994-119-01 HANGER (R)
4 4-992-281-01 HOLDER, BALL SHAFT
5 4-210-280-01 PLATE, RX SHIELD
* 6 A-4542-535-A RX BOARD, COMPLETE
7 4-994-121-11 COVER (R), HANGER
8 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
9 4-995-597-01 SPACER
10 4-994-124-11 SUSPENDER
11 4-994-118-01 BAND, HEAD
12 4-994-123-11 COVER, BATTERY
13 X-4950-087-1 HOUSING (L) ASSY
14 4-995-475-01 SPRING, TENSION
15 4-994-130-01 TERMINAL (+), BATTERY
16 4-994-132-01 TERMINAL (MIDWAY), BATTERY
17 4-993-020-01 CASE, BATTERY
18 4-994-131-01 TERMINAL (-), BATTERY
19 4-994-122-01 COVER (L), HANGER
20 4-994-120-01 HANGER (L)
21 3-831-441-99 CUSHION, SPEAKER
* 22 A-4542-536-A FE BOARD, COMPLETE
MDD01 1-505-117-21 RECEIVER (L-CH)
MDD02 1-505-117-21 RECEIVER (R-CH)
SW1 1-771-249-11 SWITCH, PUSH (1 KEY)(POWER)

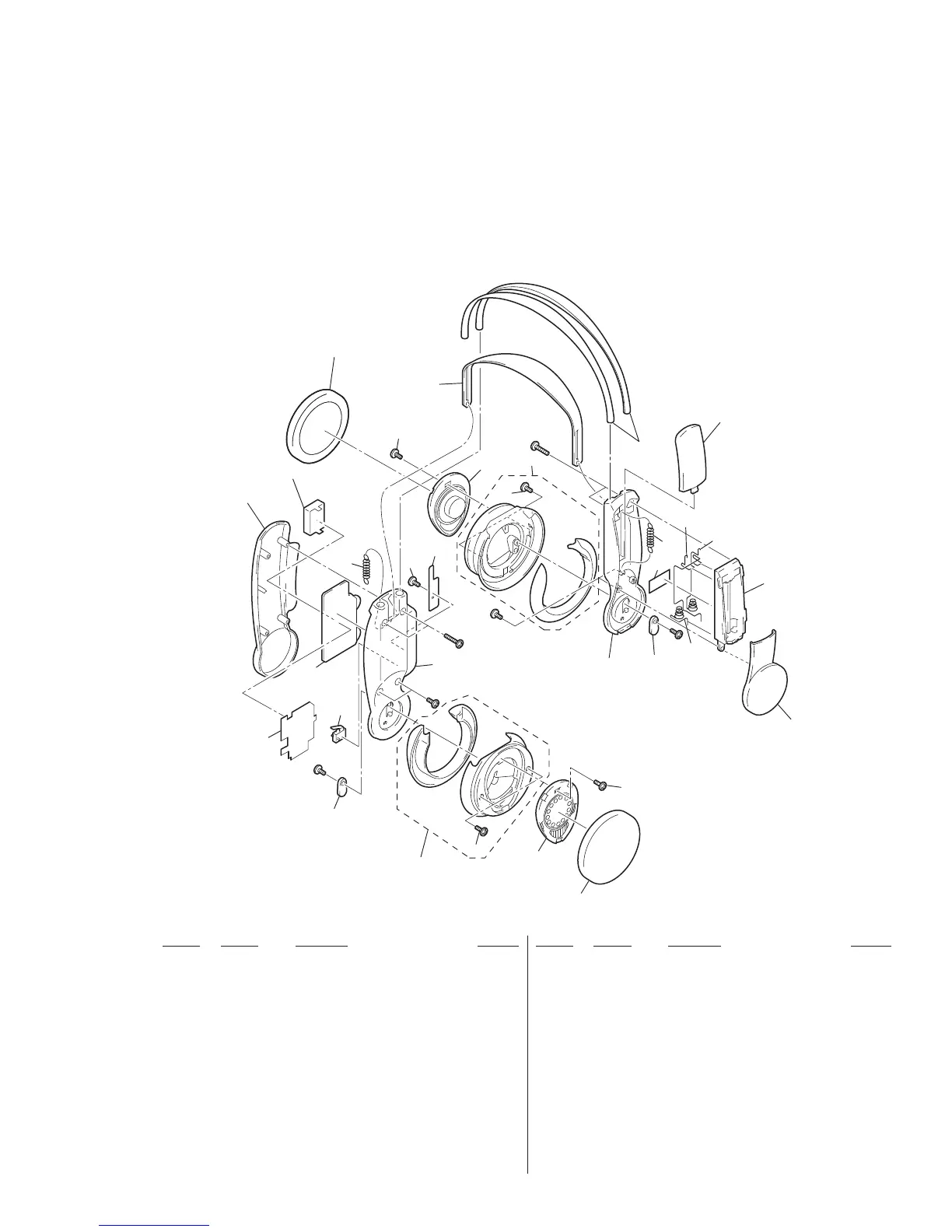

4-1. EXPLODED VIEW
11
12
21
15
16
14
17
18
4
20
8
13
19
8
1
8
2
4
5
3
6
9
8
14
22
7
1
8
10
MDD01
#3
#2
MDD02
#2
#2
#2
SW1
#3
(Included
in Ref. No. 6)
(Including
Ref. No. 22)
